Baja Designs Squadron-R 2.0 Sport Fog Pocket Light Kit - Toyota 2016-21 RAV4 2014-19 Highlander

Light up the trail with the Baja Designs Squadron‑R 2.0 Sport Fog Pocket Light Kit, engineered specifically for the Toyota RAV4 and Highlander. This high‑performance LED fog light upgrade is a direct‑fit, plug‑and‑play solution for Toyota owners looking to replace their factory fog lights with race‑proven Baja Designs lighting technology. Kit includes two Squadron 2.0 Sport auxiliary lights featuring next‑generation optics that produce 3,200 lumens at 30W each—a 26% increase in performance over the previous generation—while delivering improved beam control and higher efficiency.

Choose your preferred Wide Cornering pattern in clear or baja amber, perfect for cutting through fog, dust, rain, and other low‑visibility conditions. Precision‑engineered optics create a refined beam pattern that projects farther and wider with minimal stray light, giving you more usable illumination exactly where you need it. Whether you're navigating tight trails, open desert, or nighttime roads, the Squadron 2.0 Sport provides superior clarity and confidence after the sun goes down.

New for this generation are updated lens patterns optimized for redesigned optics, a rugged 4‑pin Deutsch connector for increased durability, and an all‑new user selectable backlight with nine selectable colors to match your vehicle’s look. A redesigned gasket enhances weather sealing and long‑term reliability, while improving uService® with clip‑in reflectors that remain secure during lens changes. Built with off‑road durability and a clean OEM‑style fit, this kit includes stainless steel brackets, weather‑resistant wiring, and all necessary hardware for a seamless installation.

Squadron 2.0 Sport Features:

Refined beam pattern provides greater distance, wider coverage, and reduced light spill
RGBW backlight with 9 selectable colors to match any vehicle
New clip‑in reflectors stay secure during lens changes, improving uService®
New gasket design improves sealing and protection against the elements
Redesigned mounting bracket allows greater vertical adjustability
Standard 4‑pin Deutsch connector for improved wiring harness durability

Specifications (Per Light):

Lumens: 3,200
Watts/Amps: 30W/2.2A @13.8V
Operational Voltage: 12-32V
IP69K Rated

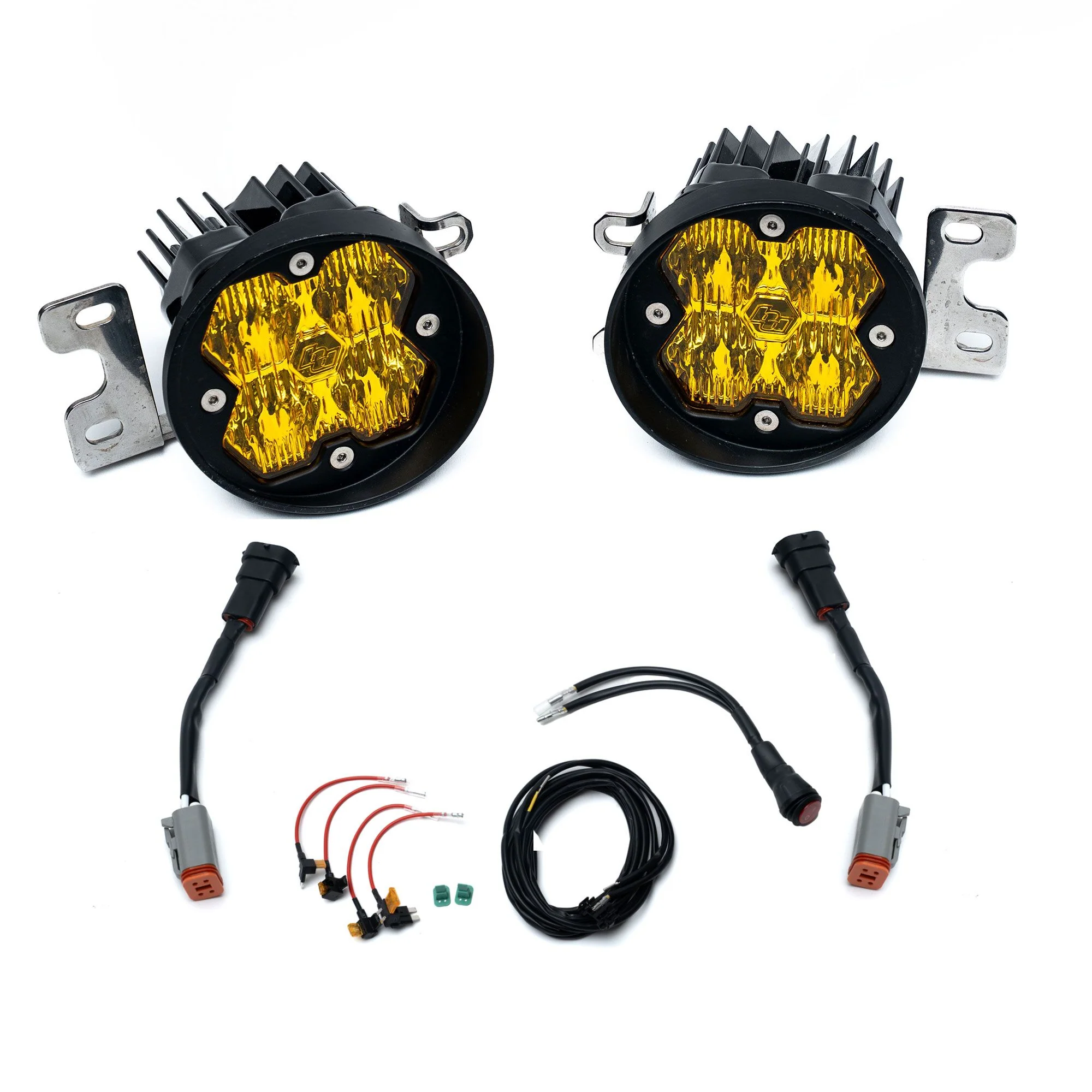

Includes:

(2x) Squadron 2.0 Sport; Wide Cornering Clear or Baja Amber
(2x) Mounting Brackets
(2x) Wiring adaptors – allows use of factory fog switch
(1x) Wiring harness – Backlight add-on
(1x) Wiring Harness, Inline backlight switch adapter
All necessary mounting hardware

The Baja Designs Advantage:

uService® – Replaceable Lenses and Optics
ClearView – All the Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Safely Driving LEDs at 100%
5000K Daylight – Less Driver Fatigue, Natural Colour

Fitment:

Toyota RAV4 2016-2021
Toyota Highlander 2014-2019
