AEV 4" DualSport RT Suspension System For JL Wrangler 4 Door
AEV 4" DualSport RT Suspension System For JL Wrangler 4 Door
Estimated Ship Date: Late May 2026
The AEV 4" DualSport RT Suspension System for the JL Wrangler Unlimited is engineered to deliver maximum off-road capability without compromising on-road stability, steering precision, or overall vehicle control. As a fully integrated system, it accommodates up to 39" tires when equipped with AEV Heavy Duty Adjustable Lower Control Arms, all while preserving proper geometry, balanced ride quality, and predictable handling characteristics.
Unlike conventional lift kits that prioritize height over performance, the DualSport RT system focuses on optimized wheel travel, corrected steering geometry, and system-wide integration—resulting in a suspension system that performs cohesively in all driving conditions.
As with all of AEV’s expedition-ready suspension systems, the 4" DualSport RT Suspension System for the Jeep Wrangler JL is FMVSS No. 126 Compliant. FMVSS No. 126 is a rigorous standard set by the National Highway Traffic Safety Administration (NHTSA) that tests new electronic stability control (ESC) systems by subjecting it to various maneuvers designed to evaluate its effectiveness in preventing loss of control and skidding, including evasive lane-changing maneuvers at highways speeds.
Key Benefits
Increased Wheel Travel & 39" Tire Capability
The DualSport RT system is engineered to provide the necessary wheel travel and clearance to properly run up to a 39" tire with OEM fender flares when paired with AEV Heavy Duty Adjustable Lower Control Arms. This ensures improved articulation and off-road traction without sacrificing stability or requiring excessive lift height.
Balanced On-Road and Off-Road Performance
AEV’s approach prioritizes real-world drivability. By combining frequency-tuned springs with matched damping, this system delivers composed highway manners alongside enhanced off-road capability—eliminating the common trade-offs found in traditional lift kits.
Corrected Steering Geometry & Improved Control
The included AEV High Steer System addresses the limitations of factory steering components when paired with larger tires and increased ride height
- Improved Steering Geometry: Raises steering linkages (tie rod by 2.75″, track bar/drag link by 2.5″) to correct geometry after lifting.
- Enhanced Handling & Stability: Flattens drag link/track bar angles, reduces bump steer and body roll, and moves front roll center closer to the center of gravity.
- Adjustable Steering Control: Features adjustable steering stops for fine-tuning lock-to-lock steering.
- Durable Construction: Includes cast iron high steer knuckles, forged steel drag link, tie rod ends, and a chromoly tie rod.
Additionally, the high steer design improves ground clearance of critical steering components, reducing vulnerability in off-road environments.

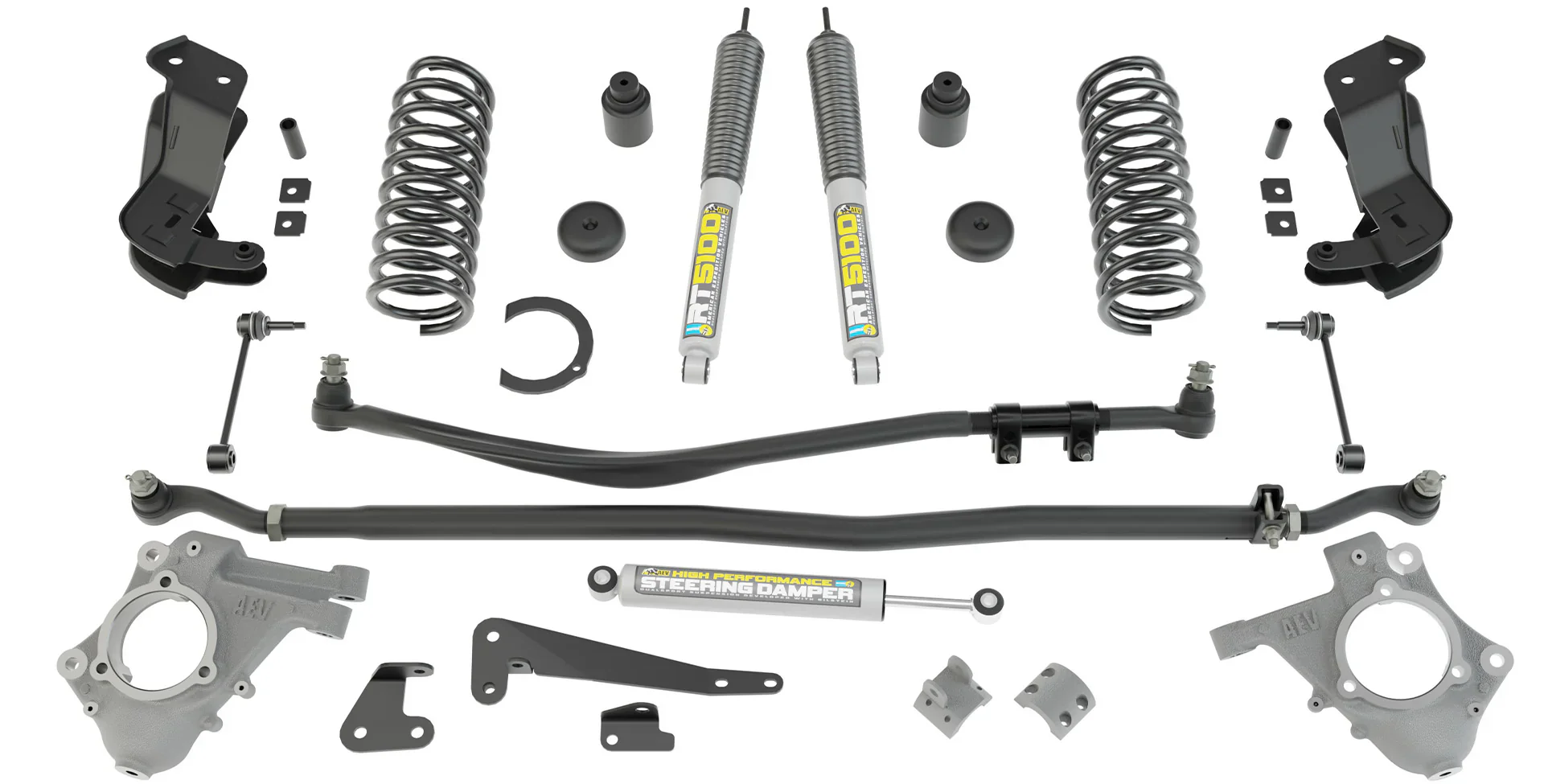

Core Components & Engineering

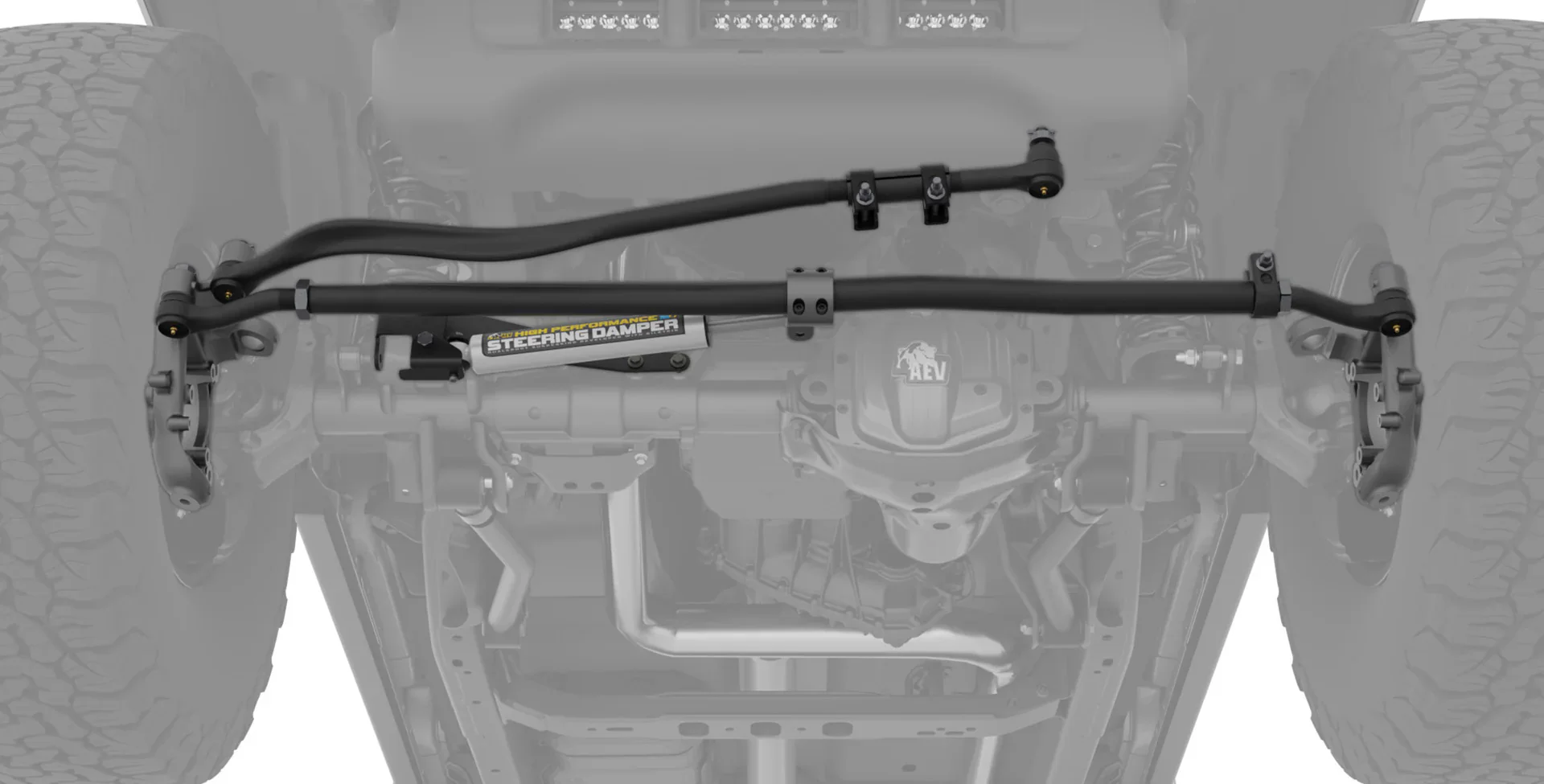

AEV High Steer System
- Cast iron steering knuckles
- Heavy-duty tie rod and drag link
- Machined steel steering damper mount
- Increased steering component ground clearance

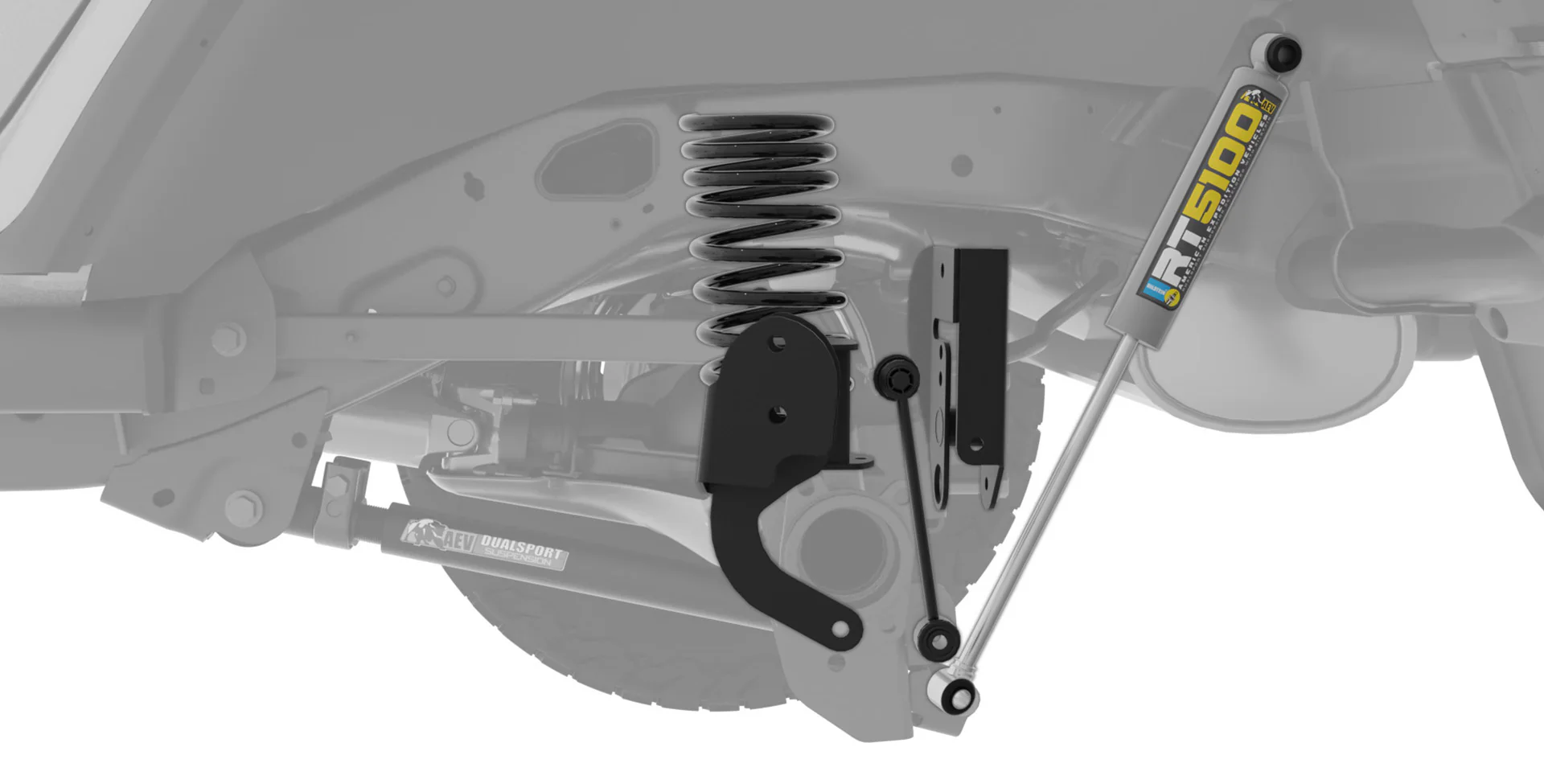

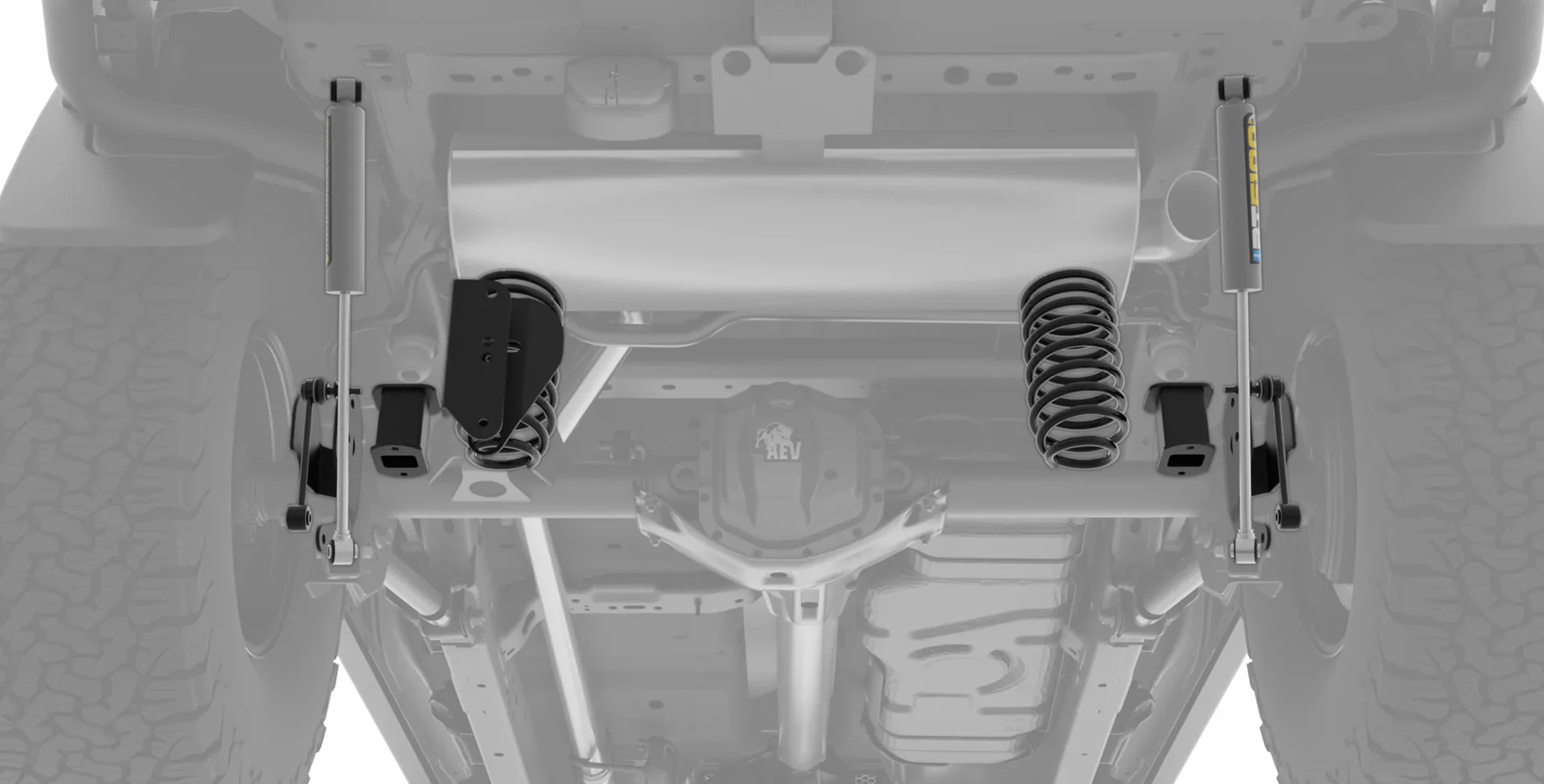

Geometry Correction Systems (Front & Rear)
- Stamped steel front geometry correction brackets
- Front and rear track bar relocation brackets
- Rear control arm relocation brackets
- Optimized suspension and steering angles for stability and handling

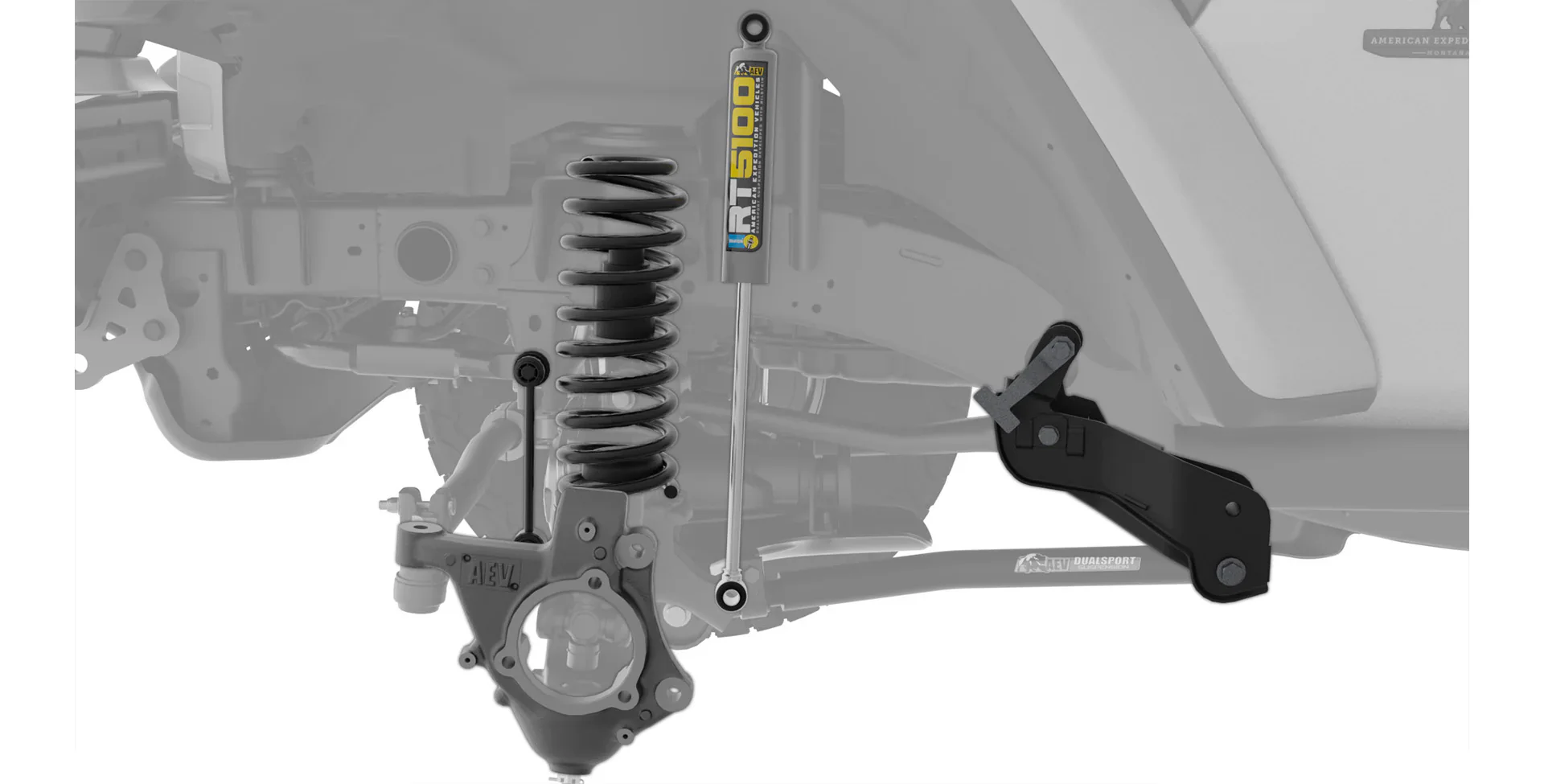

Frequency Tuned Triple-Rate Coil Springs
- Progressive, triple-rate design for improved ride quality and load management
- Maintains comfort during daily driving while supporting increased articulation off-road
AEV-Tuned Bilstein® 5100 Shock Absorbers
- Specifically valved for the DualSport RT system
- Provides consistent damping across varying terrain
- Enhances control, stability, and ride refinement
AEV Steering Damper
- Improves both the steering and handling by dampening minute movements and vibrations that are amplified in vehicles with larger tires.
- Developed in partnership with Bilstein USA
- Direct fit to the JL 4” Suspension
Additional Components
- Extended sway bar end links
- Bump stop extensions
Why an Integrated System Matters
Every component in the DualSport RT Suspension System has been engineered to function together as a unified system. This eliminates the inconsistencies commonly associated with pieced-together lift kits and ensures:
- Predictable handling characteristics
- Improved durability and long-term reliability
- Consistent performance across a wide range of driving conditions
The AEV 4" DualSport RT Suspension System sets a new standard for JL Wrangler suspension performance by combining increased wheel travel, corrected steering geometry, balanced ride quality, and up to 39" tire capability when paired with AEV Heavy Duty Adjustable Lower Control Arms. This fully integrated system is purpose-built for customers who want maximum off-road capability without sacrificing the refinement and control expected from an OEM-engineered system.
