Carli Suspension 2013+ Ram 3500 Commuter System 3.25" Lift
Carli Suspension 2013+ Ram 3500 Commuter System 3.25" Lift
The Ram Commuter 2.0 system is designed for people seeking the best on-road ride quality that don’t plan to off-road their vehicle beyond low-speed trail driving. Utilizing Carli SPEC 2.0″ Diameter, Internal Reservoir shocks, Carli developed a tune that delivers all-around comfort and ride quality designed for on-road, in town, highway, and towing/hauling.
The mono-tube, internal reservoir, Carli SPEC 2.0 boasts 6063 Aluminum construction, anodized body for corrosion resistance, 5/8″ hardened steel chrome plated shaft, full serviceability & rebuildability and are built with 1-peice bushings in the 6061 billet rod-ends. These shocks are spec’d with a premium 5WT oil to balance lubricity, consistent damping and the widest available range in temperature variation.Â
Your truck will sit 3”-3.5” higher in the front (cab configuration dependent) with 50% more suspension travel than the factory platform thanks to the taller, lighter rate coil springs.Â
When pairing added down-travel with the taller ride height, the position of the factory, front sway bar will need to be altered as well. For this, Carli offers two options; Billet Sway Bar Drop Brackets or the replacement Torsion Sway Bar. The Billet Drop Blocks shift the sway bar down and forward to ensure the factory end links cycle properly throughout the entire extended travel range. Carli’s optional Torsion sway bar removes the entire factory sway bar assembly replacing it with a torsion bar supported by fabricated drop brackets and delrin bushings. Fabricated sway bar arms and dual 5/8” FK heim end links round off the package. This is the single best bang for the buck, ride-quality upgrade offered by Carli Suspension.
When lifting the front end of a straight axle truck, the front axle is pulled off-center unless the proper linkages are addressed. Three inches of front lift equates to an axle shifted toward the driver’s side ¾” and, in the radius arm equipped Rams, lightened caster and slight rearward axle shift. This system includes an Adjustable Track Bar to push the axle back toward the passenger side and provide a stronger link with less deflection for the lifted application. Carli also includes Radius Arm Drop Brackets to re-center your caster adjustment and shift the axle forward to its new center of travel. Everything is included to support flawless operation of all components.

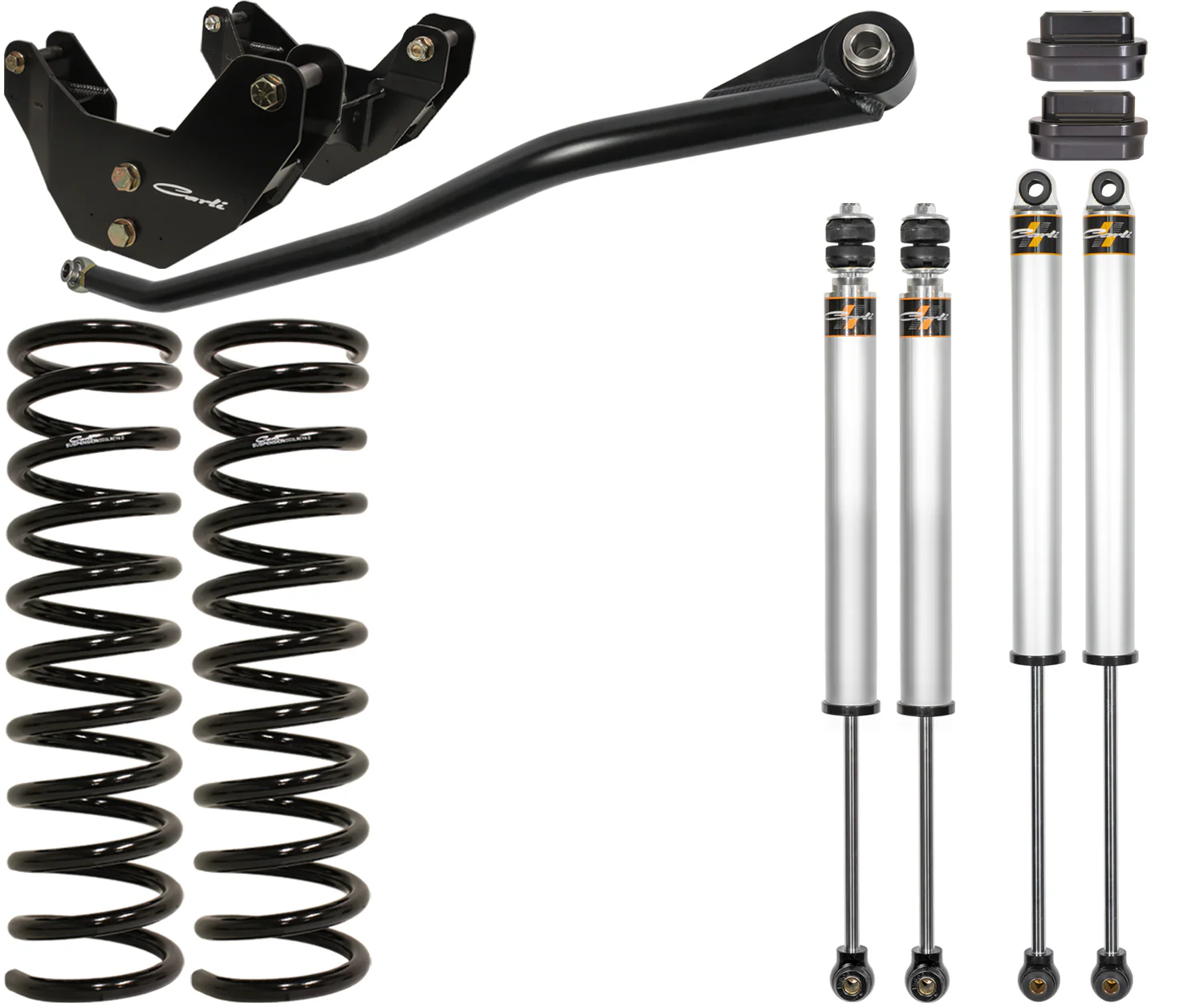

- Front Bump Drops
- Front Linear-Rate Coil Springs
- Front Track Bar
- Radius Arm Drops
- Transmission Crossmember, Extended Hardware Kit
- Carli SPEC 2.0" Internal Reservoir (IFP) Shocks, Front and Rear
Original: $3,552.09
-65%$3,552.09
$1,243.23Carli Suspension 2013+ Ram 3500 Commuter System 3.25" Lift
Carli Suspension 2013+ Ram 3500 Commuter System 3.25" Lift
The Ram Commuter 2.0 system is designed for people seeking the best on-road ride quality that don’t plan to off-road their vehicle beyond low-speed trail driving. Utilizing Carli SPEC 2.0″ Diameter, Internal Reservoir shocks, Carli developed a tune that delivers all-around comfort and ride quality designed for on-road, in town, highway, and towing/hauling.
The mono-tube, internal reservoir, Carli SPEC 2.0 boasts 6063 Aluminum construction, anodized body for corrosion resistance, 5/8″ hardened steel chrome plated shaft, full serviceability & rebuildability and are built with 1-peice bushings in the 6061 billet rod-ends. These shocks are spec’d with a premium 5WT oil to balance lubricity, consistent damping and the widest available range in temperature variation.Â
Your truck will sit 3”-3.5” higher in the front (cab configuration dependent) with 50% more suspension travel than the factory platform thanks to the taller, lighter rate coil springs.Â
When pairing added down-travel with the taller ride height, the position of the factory, front sway bar will need to be altered as well. For this, Carli offers two options; Billet Sway Bar Drop Brackets or the replacement Torsion Sway Bar. The Billet Drop Blocks shift the sway bar down and forward to ensure the factory end links cycle properly throughout the entire extended travel range. Carli’s optional Torsion sway bar removes the entire factory sway bar assembly replacing it with a torsion bar supported by fabricated drop brackets and delrin bushings. Fabricated sway bar arms and dual 5/8” FK heim end links round off the package. This is the single best bang for the buck, ride-quality upgrade offered by Carli Suspension.
When lifting the front end of a straight axle truck, the front axle is pulled off-center unless the proper linkages are addressed. Three inches of front lift equates to an axle shifted toward the driver’s side ¾” and, in the radius arm equipped Rams, lightened caster and slight rearward axle shift. This system includes an Adjustable Track Bar to push the axle back toward the passenger side and provide a stronger link with less deflection for the lifted application. Carli also includes Radius Arm Drop Brackets to re-center your caster adjustment and shift the axle forward to its new center of travel. Everything is included to support flawless operation of all components.
- Front Bump Drops
- Front Linear-Rate Coil Springs
- Front Track Bar
- Radius Arm Drops
- Transmission Crossmember, Extended Hardware Kit
- Carli SPEC 2.0" Internal Reservoir (IFP) Shocks, Front and Rear
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Carli Suspension 2013+ Ram 3500 Commuter System 3.25" Lift
The Ram Commuter 2.0 system is designed for people seeking the best on-road ride quality that don’t plan to off-road their vehicle beyond low-speed trail driving. Utilizing Carli SPEC 2.0″ Diameter, Internal Reservoir shocks, Carli developed a tune that delivers all-around comfort and ride quality designed for on-road, in town, highway, and towing/hauling.
The mono-tube, internal reservoir, Carli SPEC 2.0 boasts 6063 Aluminum construction, anodized body for corrosion resistance, 5/8″ hardened steel chrome plated shaft, full serviceability & rebuildability and are built with 1-peice bushings in the 6061 billet rod-ends. These shocks are spec’d with a premium 5WT oil to balance lubricity, consistent damping and the widest available range in temperature variation.Â
Your truck will sit 3”-3.5” higher in the front (cab configuration dependent) with 50% more suspension travel than the factory platform thanks to the taller, lighter rate coil springs.Â
When pairing added down-travel with the taller ride height, the position of the factory, front sway bar will need to be altered as well. For this, Carli offers two options; Billet Sway Bar Drop Brackets or the replacement Torsion Sway Bar. The Billet Drop Blocks shift the sway bar down and forward to ensure the factory end links cycle properly throughout the entire extended travel range. Carli’s optional Torsion sway bar removes the entire factory sway bar assembly replacing it with a torsion bar supported by fabricated drop brackets and delrin bushings. Fabricated sway bar arms and dual 5/8” FK heim end links round off the package. This is the single best bang for the buck, ride-quality upgrade offered by Carli Suspension.
When lifting the front end of a straight axle truck, the front axle is pulled off-center unless the proper linkages are addressed. Three inches of front lift equates to an axle shifted toward the driver’s side ¾” and, in the radius arm equipped Rams, lightened caster and slight rearward axle shift. This system includes an Adjustable Track Bar to push the axle back toward the passenger side and provide a stronger link with less deflection for the lifted application. Carli also includes Radius Arm Drop Brackets to re-center your caster adjustment and shift the axle forward to its new center of travel. Everything is included to support flawless operation of all components.
- Front Bump Drops
- Front Linear-Rate Coil Springs
- Front Track Bar
- Radius Arm Drops
- Transmission Crossmember, Extended Hardware Kit
- Carli SPEC 2.0" Internal Reservoir (IFP) Shocks, Front and Rear
