Carli Suspension 2014-2018 Ram 2500 Power Wagon Commuter System 2" Lift
Carli Suspension 2014-2018 Ram 2500 Power Wagon Commuter System 2" Lift
Designed and tuned for the truck that never leaves the pavement, this custom shock project was intensely focused on delivering a comfortable in-town ride while making the freeways smoother. Carli SPEC 2.0 IFP shocks feature extruded aluminum bodies for lasting finish and corrosion resistance. Lifting and leveling your truck doesn't mean you have to sacrifice ride quality for the look you are after; a Commuter system will net you the added height while increasing ride quality and control. Keeping the factory geometry in check is a host of upgraded components that have been scrutinized for strength, function, and longevity. No other system on the market is this comprehensive and addresses all the suspension vitals.
Your truck will sit 1” higher in the front (cab configuration dependent) with a touch more suspension travel than the factory platform thanks to the taller, lighter rate coil springs. The rear Carli Coil Springs will drop by ½”-1” to level the truck while upping the rear suspension capacity to a respectable 2,000lbs.
The Factory Sway Bar Disconnect with which the Power Wagons are equipped works great for those wanting the two ends of the spectrum, rigid or flexy. For those wanting to land in the middle of the spectrum between these two end points, Carli’s optional Torsion sway bar removes the entire factory sway bar assembly replacing it with a torsion bar supported by fabricated drop brackets and delrin bushings. Fabricated sway bar arms and dual 5/8” FK heim end links round off the package. This is the single best bang for the buck, ride-quality upgrade offered by Carli Suspension when compared to the locked, factory sway bar. The Carli Sway Bar allows nearly bind-free articulation in low-speed applications; when things heat up, it allows the Carli Shocks and springs to breath while engaging progressively to provide control in high-speed cornering situations.
The additional inch of front lift and off-road oriented application call for a better track bar to handle the new-found increased off-road abilities. This system includes an Adjustable Track Bar to recenter the axle and provide a stronger link with less deflection for the lifted application. Also included are Carli’s Radius Arm Drop Brackets to drop the pivot point of the dual pivot Power Wagon arms, alleviate diagonal spring pressures (ensure no bow in the coil springs) and allow full adjustment of the factory caster bolt.
Everything is included to support flawless operation of all components. Extended rear Sway Bar End Links, Front and Rear Bump stop drops to ensure the shocks are cycling in their designed travel range as well as a rear track bar drop bracket minimizing the rear end “wag” associated with opposing track bar suspension designs are all included to round off this suspension system.
Wheels and Tires: This system will fit up to a 37” tire when utilizing wheels that are no more than 9” wide with 5.75-6” of backspacing. A 12.5” wide should fit with no rubbing on the factory radius arm and only minor trimming required, while a 13.5” will require more trimming and slightly more offset to fit properly. 35” tires will fit with VERY minimal, if any trimming. Carli recommends running a 17”/18” diameter wheel for optimal ride quality (more rubber = better small bump compliance) on a 35”-37” E-rated tire running 45psi front, 40psi rear when unloaded.

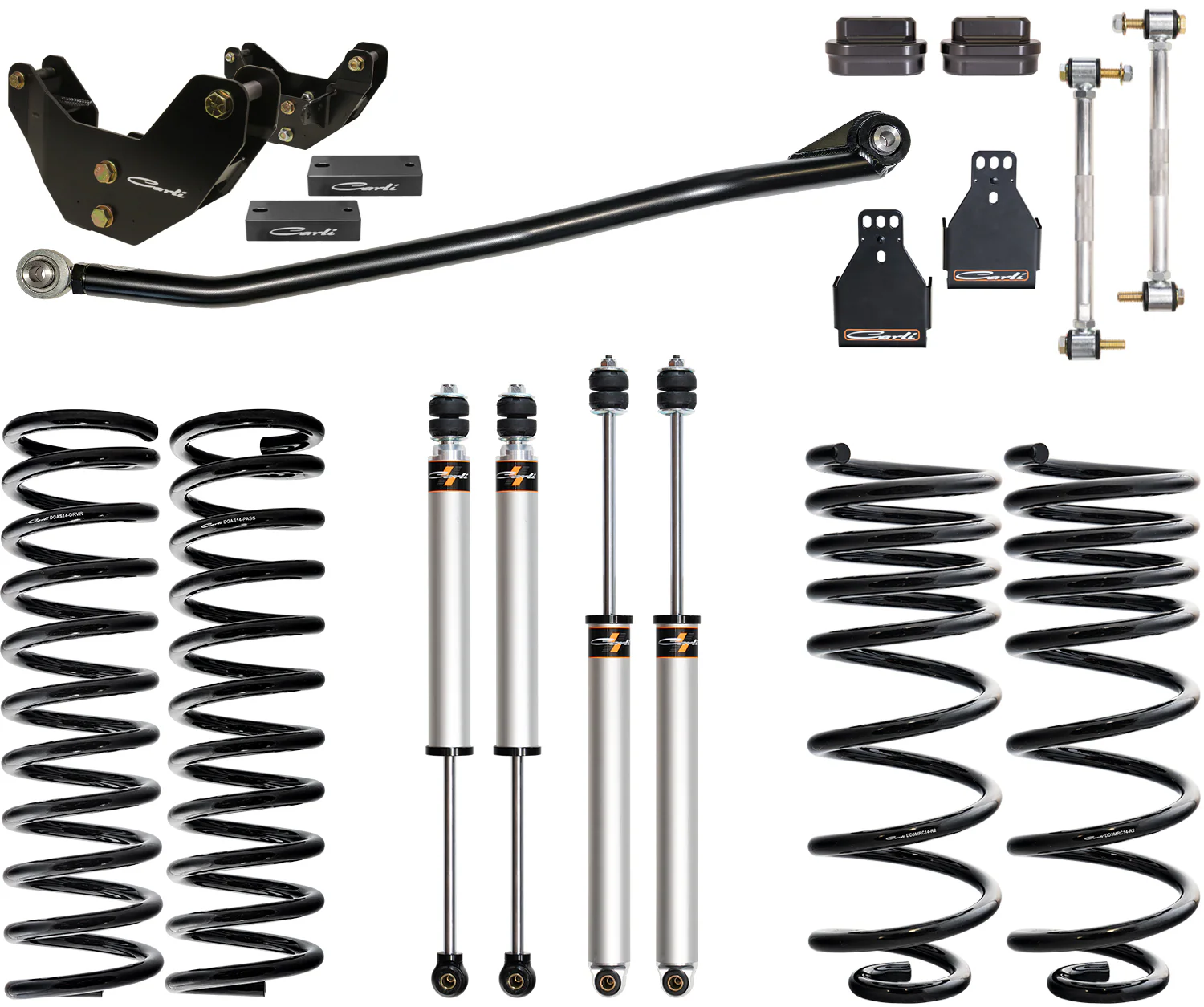

- Rear Sway Bar End Links
- Front Bump Drops
- 3" Front Linear-Rate Coil Springs
- Rear Multi-Rate Coil Springs
- Adjustable Track Bar with Stabilizer Bracket
- Radius Arm Drops
- Rear Bump Drops
- Power Wagon Skid Plate Drop Bracket
- Carli SPEC 2.0″ Internal Reservoir (IFP) Shocks, Front and Rear
Original: $4,708.03
-65%$4,708.03
$1,647.81Carli Suspension 2014-2018 Ram 2500 Power Wagon Commuter System 2" Lift
Carli Suspension 2014-2018 Ram 2500 Power Wagon Commuter System 2" Lift
Designed and tuned for the truck that never leaves the pavement, this custom shock project was intensely focused on delivering a comfortable in-town ride while making the freeways smoother. Carli SPEC 2.0 IFP shocks feature extruded aluminum bodies for lasting finish and corrosion resistance. Lifting and leveling your truck doesn't mean you have to sacrifice ride quality for the look you are after; a Commuter system will net you the added height while increasing ride quality and control. Keeping the factory geometry in check is a host of upgraded components that have been scrutinized for strength, function, and longevity. No other system on the market is this comprehensive and addresses all the suspension vitals.
Your truck will sit 1” higher in the front (cab configuration dependent) with a touch more suspension travel than the factory platform thanks to the taller, lighter rate coil springs. The rear Carli Coil Springs will drop by ½”-1” to level the truck while upping the rear suspension capacity to a respectable 2,000lbs.
The Factory Sway Bar Disconnect with which the Power Wagons are equipped works great for those wanting the two ends of the spectrum, rigid or flexy. For those wanting to land in the middle of the spectrum between these two end points, Carli’s optional Torsion sway bar removes the entire factory sway bar assembly replacing it with a torsion bar supported by fabricated drop brackets and delrin bushings. Fabricated sway bar arms and dual 5/8” FK heim end links round off the package. This is the single best bang for the buck, ride-quality upgrade offered by Carli Suspension when compared to the locked, factory sway bar. The Carli Sway Bar allows nearly bind-free articulation in low-speed applications; when things heat up, it allows the Carli Shocks and springs to breath while engaging progressively to provide control in high-speed cornering situations.
The additional inch of front lift and off-road oriented application call for a better track bar to handle the new-found increased off-road abilities. This system includes an Adjustable Track Bar to recenter the axle and provide a stronger link with less deflection for the lifted application. Also included are Carli’s Radius Arm Drop Brackets to drop the pivot point of the dual pivot Power Wagon arms, alleviate diagonal spring pressures (ensure no bow in the coil springs) and allow full adjustment of the factory caster bolt.
Everything is included to support flawless operation of all components. Extended rear Sway Bar End Links, Front and Rear Bump stop drops to ensure the shocks are cycling in their designed travel range as well as a rear track bar drop bracket minimizing the rear end “wag” associated with opposing track bar suspension designs are all included to round off this suspension system.
Wheels and Tires: This system will fit up to a 37” tire when utilizing wheels that are no more than 9” wide with 5.75-6” of backspacing. A 12.5” wide should fit with no rubbing on the factory radius arm and only minor trimming required, while a 13.5” will require more trimming and slightly more offset to fit properly. 35” tires will fit with VERY minimal, if any trimming. Carli recommends running a 17”/18” diameter wheel for optimal ride quality (more rubber = better small bump compliance) on a 35”-37” E-rated tire running 45psi front, 40psi rear when unloaded.
- Rear Sway Bar End Links
- Front Bump Drops
- 3" Front Linear-Rate Coil Springs
- Rear Multi-Rate Coil Springs
- Adjustable Track Bar with Stabilizer Bracket
- Radius Arm Drops
- Rear Bump Drops
- Power Wagon Skid Plate Drop Bracket
- Carli SPEC 2.0″ Internal Reservoir (IFP) Shocks, Front and Rear
