Carli Suspension 2014-2026 Ram 2500 Pathfinder System 2.5" Lift

The Carli Pathfinder Spec 2.5" Leveling Kit is deigned to offer the most performance possible from a leveling kit. Using Carli's custom built and tuned SPEC 2.5" diameter shocks paired with their soft ride 2.5" lift front coils, you're able to improve ride while maintaining full factory payload and towing capacity. This kit also includes a Carli track bar and all the small supporting parts needed to have this be a bolt in upgrade on your RAM truck. Whether you're towing a travel trailer or heading off-road, this system delivers superior performance you can rely on.

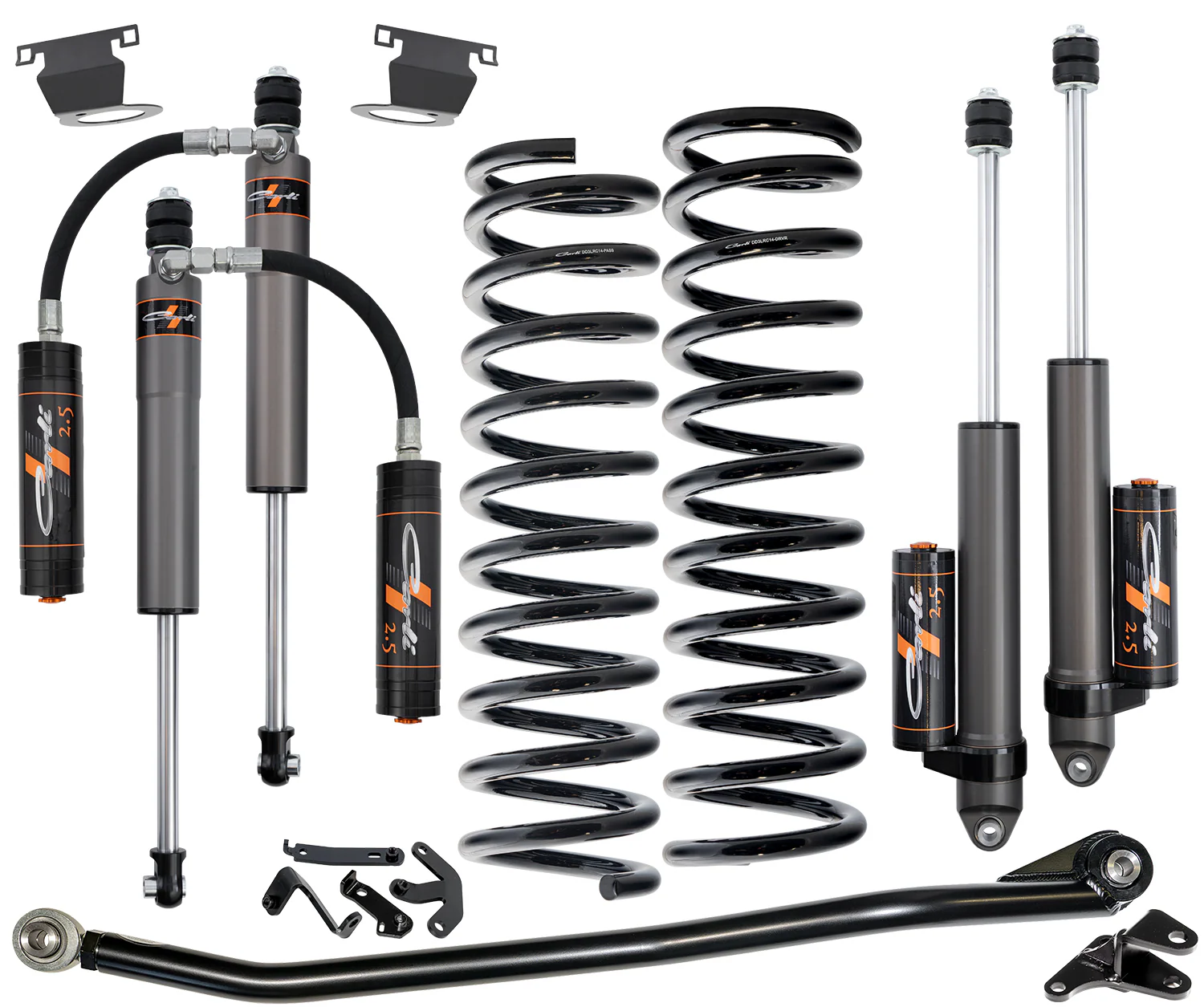

This system features a 2.5” lift with Linear Rate Coil Springs combined with Carli's custom built and tuned SPEC series 2.5” Remote Reservoir Shocks, designed in-house for exceptional ride comfort and handling on and off the road. Included are rear piggyback reservoir shocks, also custom tuned to enhance the factory rear coil springs’ performance.

You're likely cross shopping this system with the Carli Backcountry or Carli King Pintop levels, so the goal with this Pathfinder system was to offer King level performance at a lower price point, and with softer on road ride. The extra .5" of shock diameter also makes for increased control over the 2" diameter Backcountry shocks, setting this system as a perfect middle ground between the two.

The included Adjustable Track Bar re-centers the axle and E-Brake Line Relocation Brackets ensure plenty of clearance for the oversized rear shocks.

Ride quality can be substantially increased with the addition of Carli's Torsion Sway Bar, and the addition of a Carli Low Mount Steering Stabilizer is recommended for any tire over factory size. While not required, those are great add on items to this base system!

This system will NOT be upgradable to the 3" height Carli Suspension Systems. It’s designed to be a solution for customers wanting a quality, big-shock system boasting huge off-road capability, minimal lift and NO reduction in payload or hauling capacity.
