Carli Suspension 2014-2026 Ram 2500 Pintop System 3.25" Lift

The Carli 2.5" Pintop is the premier bolt on 2014+ Ram 2500 suspension system on the market. With no permanent modifications to the truck, this setup transforms ride quality on and off road. Carli's tuned coils double suspension travel and smooth out the ride, while Carli tuned King 2.5" diameter shocks keep everything under control. Completely different from an off the shelf King shock, Carli spent months developing and tuning this system to balance commuting with everything from rock crawling to high speed whoops.

The system is backed up by all the supporting parts normally left out by cheaper
"lift kits" including a Carli track bar, radius arm drops, rear sway bar end links a rear track bar drop and more. You can also upgrade things further with the addition of a steering stabilizer, sway bar, and fabricated radius arms.

Carli offers two mandatory option selections for the rear of the truck. The first is coils. Select the R2 high capacity coils if you have 500-800 pounds of constant payload, and the R1 coils if you have an empty truck with variable load like towing.

Carli also offers two rear track bar options. Select the track bar drop to net a lower total cost, or the Carli full replacement rear track bar system upgrade to have the best handling and eliminate the rear "wag" these trucks can exhibit. Carli highly recommends the full rear track bar if you need R2 high capacity coils or tow regularly.

This system will fit 35s with no trimming on a 0 to +27 offset wheel that is no wider than 9." To fit 37s on a Ram truck Carli recommends a +18 to +27 offset wheel that is no wider than 9,” as well as some mild trimming of the plastic fender liner and maybe pinch weld depending on the tire.

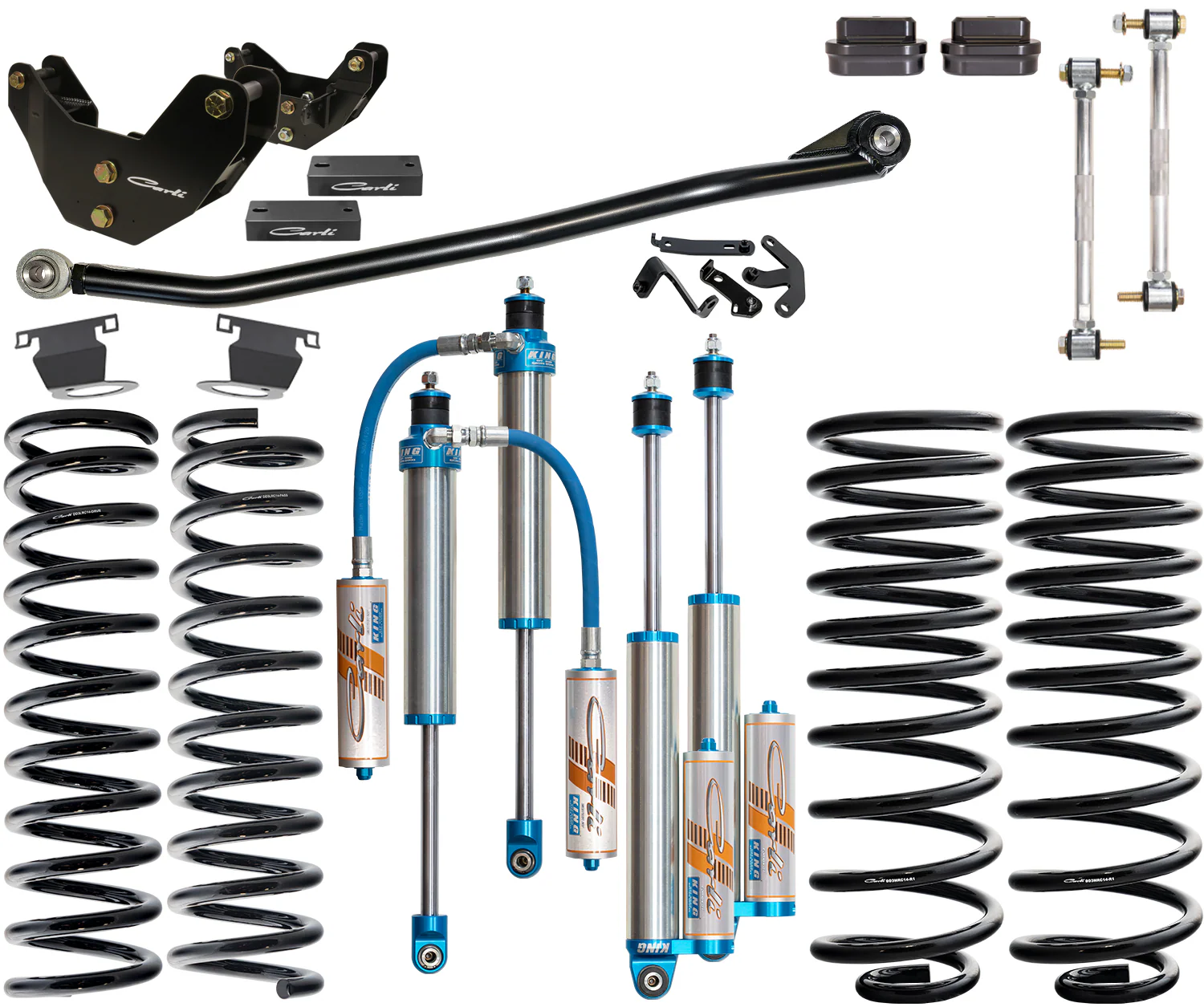

• Carli 2014+ Ram 2500 Pintop 2.5 Shock Package

• Carli Front Linear Rate 2014+ Ram 2500 Coil Springs

• Carli Rear Multi Rate 2014+ Ram 2500 Coil Springs

• Carli 2014+ Ram 2500 Adjustable Track Bar

• Carli 2014+ Ram 2500 Rear Track Bar Drop Bracket

• Carli 2014+ Ram 2500 Radius Arm Drop Brackets

• Carli Front Bump Stop Drops

• Carli 2014+ Ram 2500 Rear Sway Bar End Links
• Designed for Diesel Applications Only
