Carli Suspension 2014+ Ram 2500/3500 WIY Builder Axle Truss
Carli Suspension 2014+ Ram 2500/3500 WIY Builder Axle Truss
If you run your Ram hard off road, a Carli axle truss is a must have. The factory axle is extremely easy to bend with a hard bottom out, and this is the solution to prevent that expensive mistake.

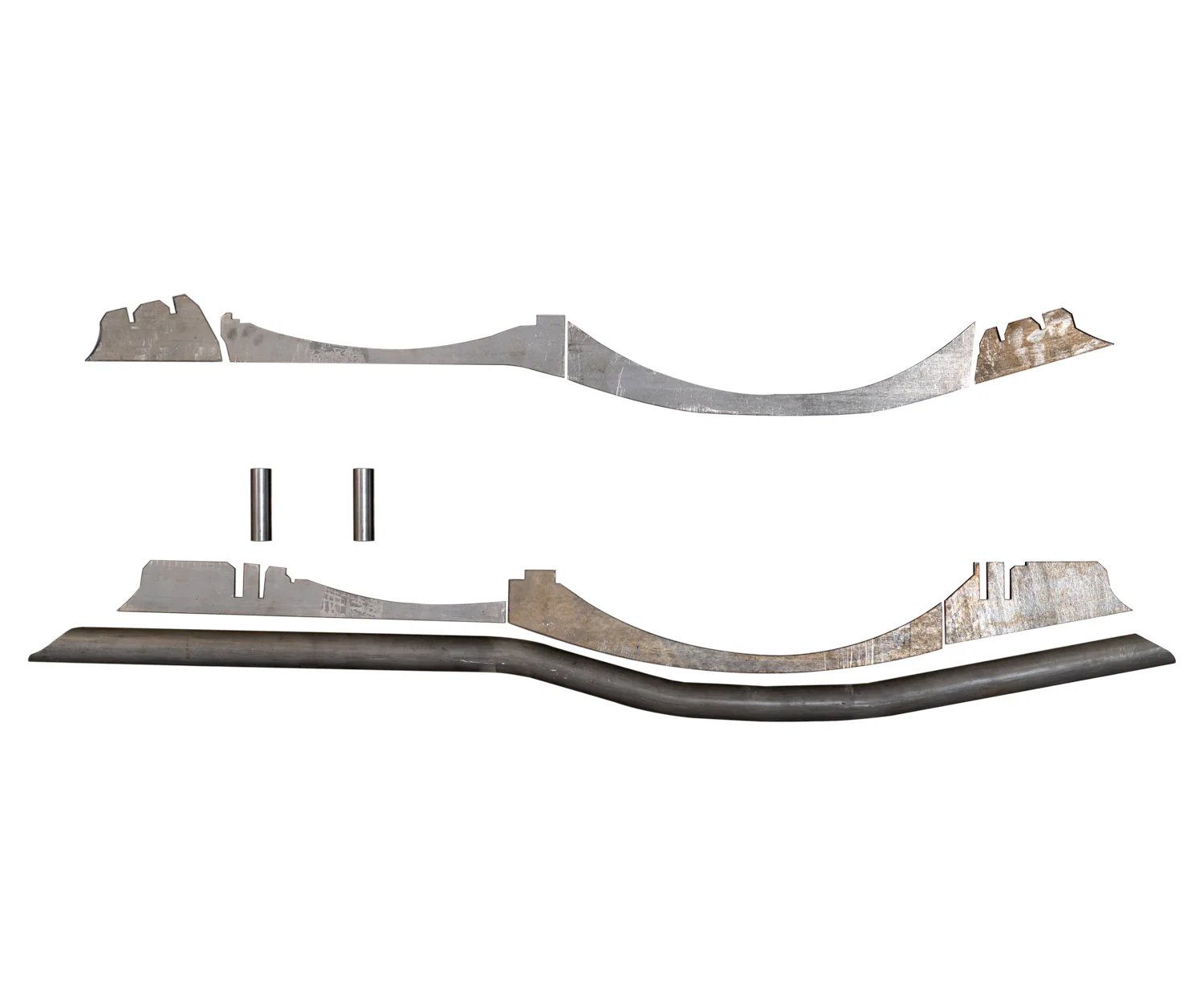

The axle on the 2014+ Ram 2500/3500 is a whole different animal from the previous generation. The large pumpkin, CAD bracket and outer C’s don’t make for an easy welding job. That said, Carli designed a truss kit that runs a 1.75″ Diameter 0.120″ wall thickness tube that’s CNC Cut/Bent to match the knuckle profiles while skidding the pumpkin. Included with the truss kit are two 1″ OD stand-off tubes that bridge the distance from the truss tube to the main axle tube on the passenger’s side (long side) then plates to enclose the entire truss. Lastly, they include “Upper C” Gussets to plate the outer C upper to the bottom of the coil buckets.
This is the strongest truss kit on the market and requires SUBSTANTIAL fabrication knowledge/ability to install. Take it to a fabricator with extensive knowledge in welding differentiating metals.
- Massive axle support ensures the axle stays true no matter the beating
- 1.75" OD .0120" Wall Main tube
- 1" OD Main Tube Supports
- 0.250" CNC Cut Finishing Plates
- Weld-on Fabrication Part
Instructions
Original: $614.25
-65%$614.25
$214.99More Images
