Carli Suspension 2023+ Ford Super Duty Commuter System 5.5" Lift
Carli Suspension 2023+ Ford Super Duty Commuter System 5.5" Lift
The Super Duty Commuter 2.0 system is designed for people seeking the best on-road ride quality that don’t plan to off-road their vehicle beyond low-speed trail driving. Utilizing Carli SPEC 2.0″ Diameter, Internal Reservoir shocks, Carli developed a tune that delivers all-around comfort and ride quality designed for on-road, in town, highway, and towing/hauling.
The mono-tube, internal reservoir, Carli SPEC 2.0 boasts 6063 Aluminum construction, anodized body for corrosion resistance, 5/8″ hardened steel chrome plated shaft, full serviceability & rebuildability and are built with 1-peice bushings in the 6061 billet rod-ends. These shocks are spec’d with a premium 5WT oil to balance lubricity, consistent damping and the widest available range in temperature variation.
The truck will sit 4.5” higher in the front and have more wheel travel thanks to the taller, Progressive Rate Coil Springs. Radius Arm Drop Brackets reset the pivot point and keep the travel linear for the best ride while the Sway Bar Link & Drop Brackets Kit resets the sway bar engagement point. The End Link Kit is listed as an “option”, but it’s necessary to run. Bump Stop Drops protect the shocks from over-compressing, the Adjustable Track Bar centers the front axle and Stainless Brake Lines firm up braking and ensure there is enough line for the newfound travel. To round off the front end, Carli includes Caster Shims to tighten the steering.
This is where the F250 and F350 are a bit different. Since 2008, the main spring packs on these two trucks is different; the F250 has a lighter rate spring pack than its 350 counterpart. The F250 Add-a-Pack equipped systems are a nice improvement over stock; the F350 with the Add-a-Pack is still very stiff in the rear as the main pack doesn’t move much unless loaded. Carli recommends the Full Replacement Leaf Spring packs for both trucks but especially the F350 given the super-stiff factory springs. If capacity is a concern, the Full Progressive Leaf Springs can be supplemented back to the factory capacity of a SRW F350 with the addition of Long-Travel Airbags. The Full Progressive Leaf Spring Pack will shift the axle slightly forward in the wheel well to ensure maximum tire clearance for a 37” M/T at full compression.
Factory Wheels SHOULD NOT be run with oversized tires. They’re known to rub the radius arm, sway bar and most concerning – Brake Lines. Factory tires and factory wheels will work without issue but Carli DOES NOT recommend running oversized tires on factory wheels. On 4.5”/5.5" Ford Systems, Carli recommends 17”-18” wheels, no more than 9” wide with 5” of backspacing with a 37”, E-Rated Tire. The more rubber, the better the small bump compliance will be at proper inflation pressures. The ride will firm up as you go larger in wheel diameter.

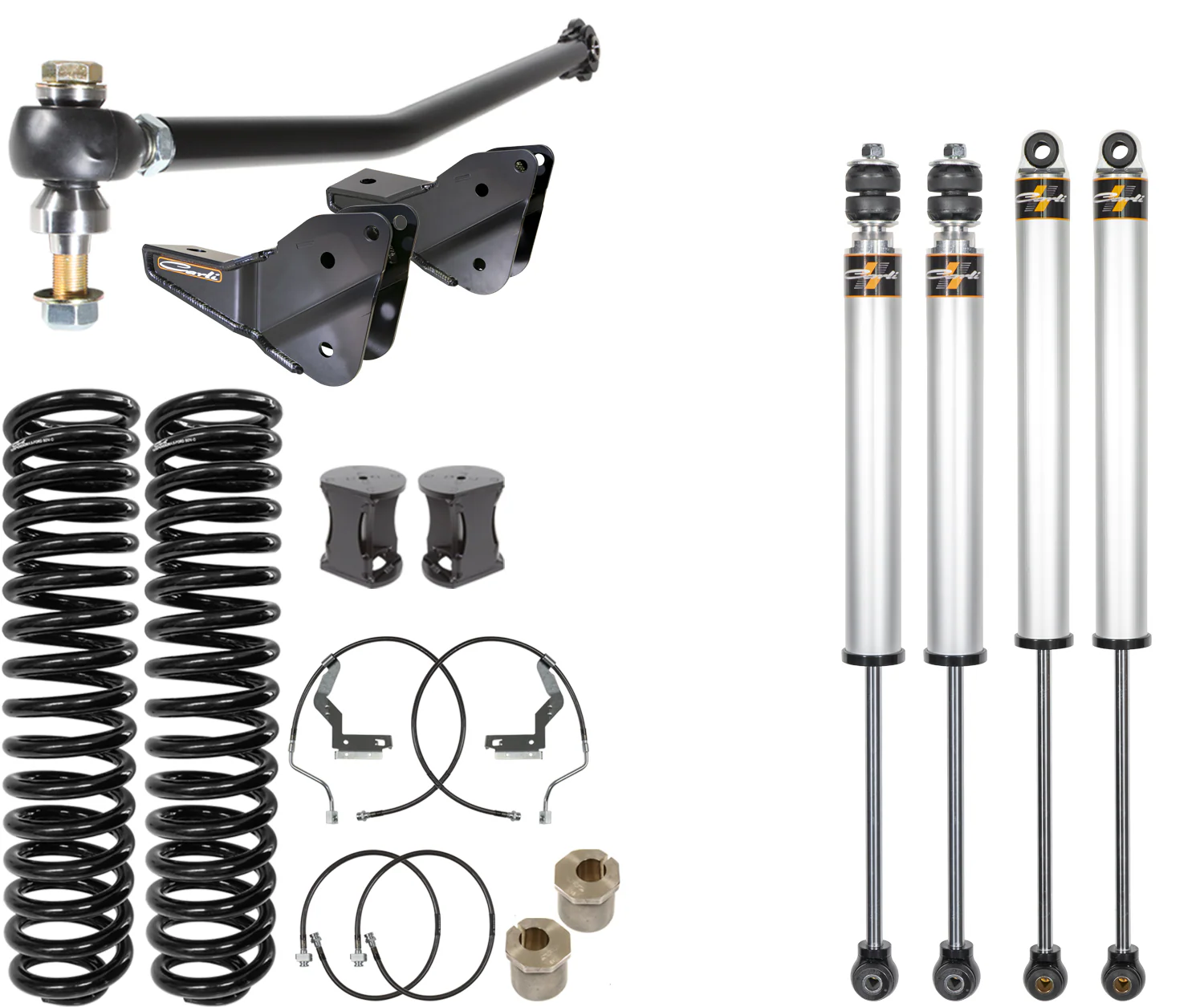

- Multi-Rate Coils
- Carli SPEC 2.0″ IFP Shocks, Front and Rear
- Track Bar
- Brake Lines
- 1° Caster Shims
- High Clearance Bump Stop Drops, Front
- Radius Arm Drops
- 5.5″ Lift – 2023-2024 F250/350 4×4 Diesel, Base Kit (Carli is working on confirming fitment up to 2026)
Original: $4,024.88
-65%$4,024.88
$1,408.71Carli Suspension 2023+ Ford Super Duty Commuter System 5.5" Lift
Carli Suspension 2023+ Ford Super Duty Commuter System 5.5" Lift
The Super Duty Commuter 2.0 system is designed for people seeking the best on-road ride quality that don’t plan to off-road their vehicle beyond low-speed trail driving. Utilizing Carli SPEC 2.0″ Diameter, Internal Reservoir shocks, Carli developed a tune that delivers all-around comfort and ride quality designed for on-road, in town, highway, and towing/hauling.
The mono-tube, internal reservoir, Carli SPEC 2.0 boasts 6063 Aluminum construction, anodized body for corrosion resistance, 5/8″ hardened steel chrome plated shaft, full serviceability & rebuildability and are built with 1-peice bushings in the 6061 billet rod-ends. These shocks are spec’d with a premium 5WT oil to balance lubricity, consistent damping and the widest available range in temperature variation.
The truck will sit 4.5” higher in the front and have more wheel travel thanks to the taller, Progressive Rate Coil Springs. Radius Arm Drop Brackets reset the pivot point and keep the travel linear for the best ride while the Sway Bar Link & Drop Brackets Kit resets the sway bar engagement point. The End Link Kit is listed as an “option”, but it’s necessary to run. Bump Stop Drops protect the shocks from over-compressing, the Adjustable Track Bar centers the front axle and Stainless Brake Lines firm up braking and ensure there is enough line for the newfound travel. To round off the front end, Carli includes Caster Shims to tighten the steering.
This is where the F250 and F350 are a bit different. Since 2008, the main spring packs on these two trucks is different; the F250 has a lighter rate spring pack than its 350 counterpart. The F250 Add-a-Pack equipped systems are a nice improvement over stock; the F350 with the Add-a-Pack is still very stiff in the rear as the main pack doesn’t move much unless loaded. Carli recommends the Full Replacement Leaf Spring packs for both trucks but especially the F350 given the super-stiff factory springs. If capacity is a concern, the Full Progressive Leaf Springs can be supplemented back to the factory capacity of a SRW F350 with the addition of Long-Travel Airbags. The Full Progressive Leaf Spring Pack will shift the axle slightly forward in the wheel well to ensure maximum tire clearance for a 37” M/T at full compression.
Factory Wheels SHOULD NOT be run with oversized tires. They’re known to rub the radius arm, sway bar and most concerning – Brake Lines. Factory tires and factory wheels will work without issue but Carli DOES NOT recommend running oversized tires on factory wheels. On 4.5”/5.5" Ford Systems, Carli recommends 17”-18” wheels, no more than 9” wide with 5” of backspacing with a 37”, E-Rated Tire. The more rubber, the better the small bump compliance will be at proper inflation pressures. The ride will firm up as you go larger in wheel diameter.
- Multi-Rate Coils
- Carli SPEC 2.0″ IFP Shocks, Front and Rear
- Track Bar
- Brake Lines
- 1° Caster Shims
- High Clearance Bump Stop Drops, Front
- Radius Arm Drops
- 5.5″ Lift – 2023-2024 F250/350 4×4 Diesel, Base Kit (Carli is working on confirming fitment up to 2026)
