Carli Suspension 2023+ Ford Super Duty EVenture System 3.5" Lift
Carli Suspension 2023+ Ford Super Duty EVenture System 3.5" Lift
The future of the HD truck suspension world is here. Carli suspension has spent months developing this dynamic valving shock package that responsively and constantly adapts to the terrain for the smoothest ride possible. An on board computer and advanced algorithm constantly adjusts the shocks as you drive, making the ride as smooth as possible. Carli pre-programed three presets for highway, rock crawling, and high speed off road driving, with fine tuned adjustments within each.
The system uses a sensor mounted on top of the engine to determine vehicle pitch/roll as well as sensors tied into the OBD2 to read the truck's speed, brake pedal position, accelerator pedal position, and steering wheel rotation. That info then gets interpreted by an algorithm to allow individual adjustment of each shock.
Damping is variable in any setting, meaning the truck can be supple on small chatter, then detect a large impact, rise or dip, and ramp up instantly. That variable damping dramatically reduces body roll in corners in any setting as well and allows for insane small bump sensitivity without giving up big hit composure. This system will be available for both 2.5 and 4.5 heights.
For the best ride, it is recommended to add the Carli torsion sway bar and full replacement rear leaf packs. Both are a massive upgrade on and of road, and address key weak points of the factory parts.
If you don't add a rear Carli leaf spring option, certain 2023+ F-250s may need a taller rear block to sit level depending on the trim package.
Long bed models require an extension harness purchased separately.

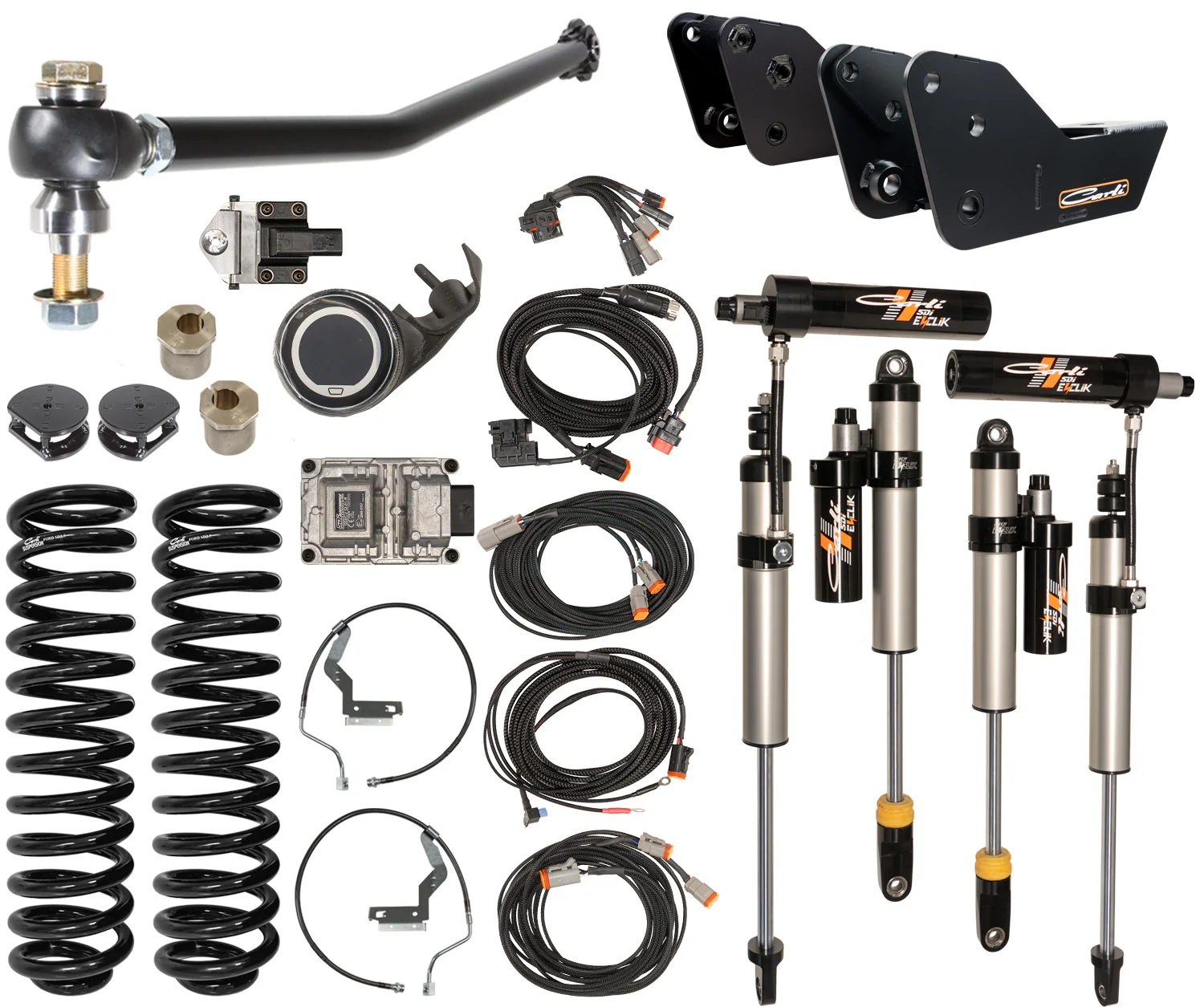

- Front 2.5" Leveling Coils
- Carli 2.5 E-Venture Front/Rear Custom Tuned Shock Package
- 2017+ Ford Super Duty Adjustable Track Bar
- 2017+ Ford Super Duty Front Stainless Braided Brake Lines
- Caster Correction Shims
- Leveling Front Bump Stop Drops
- Front radius arm drops
- Fitment 3.5″ Lift – 2023-2026 F250/350 4×4 Diesel, 1.5″ Lift – 2023-2026 F250/350 TREMOR, 3.5″ Lift – 2023-2026 F250/350 4×4 7.3L Gas, 1.5″ Lift – 2023-2026 F250/350 4×4 7.3L Gas
Original: $9,083.27
-65%$9,083.27
$3,179.14Carli Suspension 2023+ Ford Super Duty EVenture System 3.5" Lift
