COMEUP SOLO 12.5rs GMF Winch For Silverado/Sierra HD With AEV Front Bumper

COMEUP SOLO 12.5rs GMF Winch For Silverado/Sierra HD With AEV Front Bumper

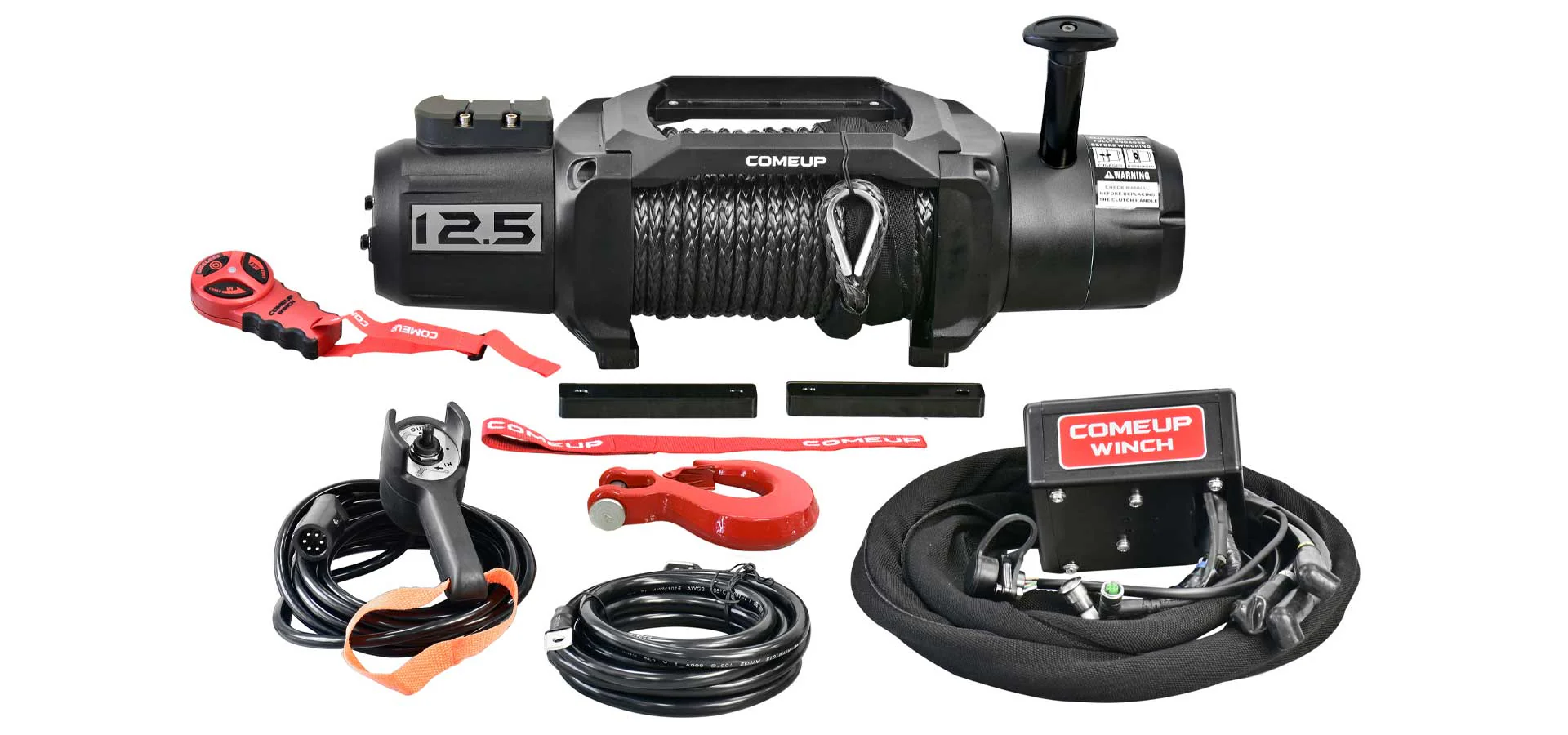

Designed specifically for Silverado HD and Sierra HD equipped with the AEV stamped-steel front bumper. The COMEUP SOLO 12.5rs GMF Winch features a compact design and a 12,500-lb. pulling rating. Kit includes winch, controller, wire harness, wireless remote control and wired waterproof remote control.

• 12V DC severe duty winch rated at 12,500 lbs. pulling helps meet your needs
• Heavy-duty series wound motor delivers excellent torque output and fast line speed; equipped with a thermal protection switch to help prevent winch motor from overheating
• Hardened steel, three-stage planetary gear train for efficient and reliable operation
• Includes a built-in digital two-way wireless remote control and a wired waterproof remote control
• 12-strand 100-foot synthetic rope, coated to improve abrasion with no water absorption
• Patented mechanical cone brake located outside the drum expedites heat dispersion; the greater the load on the rope, the greater amount of braking is generated by the mechanism
• Heavy-duty sealed contactor housing with silver-alloy contact pads, thick copper buss bars and submersible construction helps provide weather resistance

Please Note: To install the COMEUP SOLO 12.5rs GMF Winch, you’ll need the AEV Winch Installation Kit (16060020)

Line Speed and Amp. Draw (1st layer of wire rope on the drum)

Line Pull, kg / lb	Line Speed, mpm / fpm	Amp. Draw, A
No load	7.7 / 25.3	45
907 / 2,000	3.4 / 11.2	75
1,814 / 4,000	2.5 / 8.2	160
2,722 / 6,000	2.0 / 6.6	230
3,629 / 8,000	1.7 / 5.6	300
5,,670 / 12,500	0.9 / 3.0	470

Line Pull and Rope Capacity

Layer of Rope	Pull by layer, kg / lb	Total Rope on the Drum, m / ft
1st	5,670 / 12,500	4.8 / 15.7
2nd	4,499 / 9,919	10.9 / 35.7
3rd	3,729 / 8,221	18.5 / 60.7
4th	3,184 / 7,020	21.0 / 69.0
