Diode Dynamics SAE/DOT LED Lightbar Kit for 2017-2020 Ford Raptor
Diode Dynamics SAE/DOT LED Lightbar Kit for 2017-2020 Ford Raptor

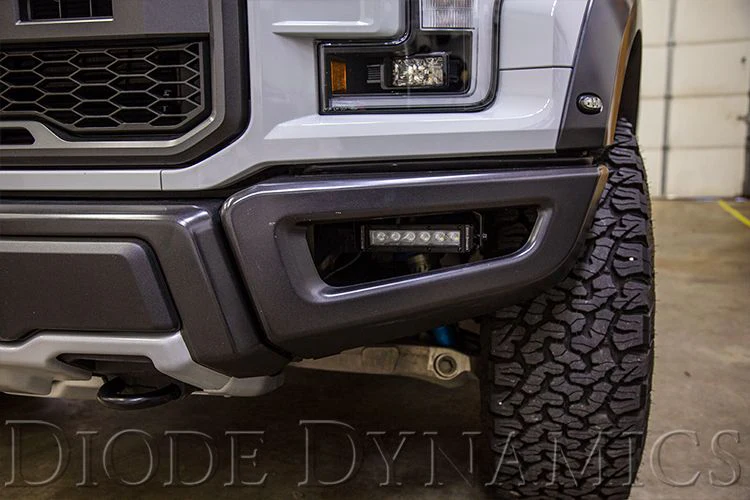

The LED Fog Light Bar Bracket Kit for the 2017-2020 Ford Raptor from Diode Dynamics allows you to mount auxiliary lighting in the factory bumper openings. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required!
Features
- Direct fitment on 2017-2020 Ford Raptor.
- Street-legal output as Driving lights or Fog lights (Please check your local laws and regulations for aiming, installation, and applicability).
- Highly durable powdercoated steel construction.
- Utilizes existing mounting points and hardware for a simple installation.
- CAD-designed for perfect fitment.
Street Legal Output. This kit isn't just for off road! It is legal for on-road use as driving lights or fog lights (Please check your local laws and regulations for aiming, installation, and applicability).
Designed for Performance. Using optical simulation modeling, Diode Dynamics Stage Series light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package.
Functional Patterns. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!
Driving pattern was designed to supplement your high beams. Rather than a simple "spot" pattern, the Stage Series Driving pattern has a rectangular 20Wx8H degree pattern that is far more useful for directing light downrange at high speeds.
Wide pattern provides an extremely wide field of view, without wasting any light in the sky above and provides a 100Wx8H degree spread of light. It was designed to supplement your fog lights and is perfect for driving in inclement weather.
In the Box:
-
Brackets Only:

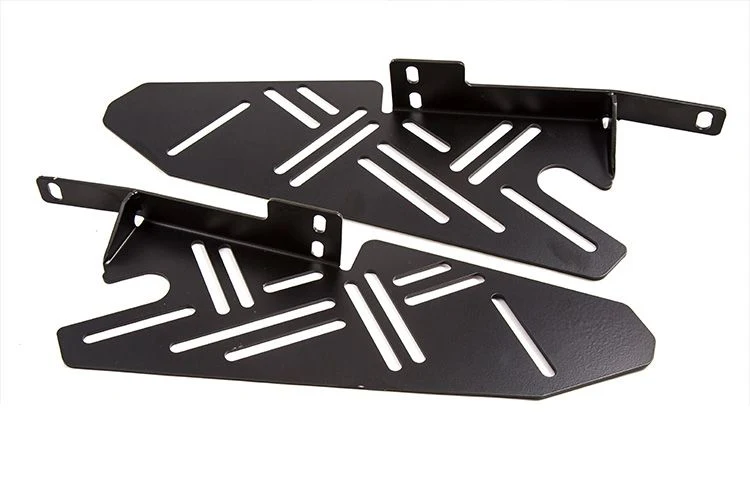

- Two (2) Application-specific brackets for installation on 2017-2019 Ford
- Installation Guide
-

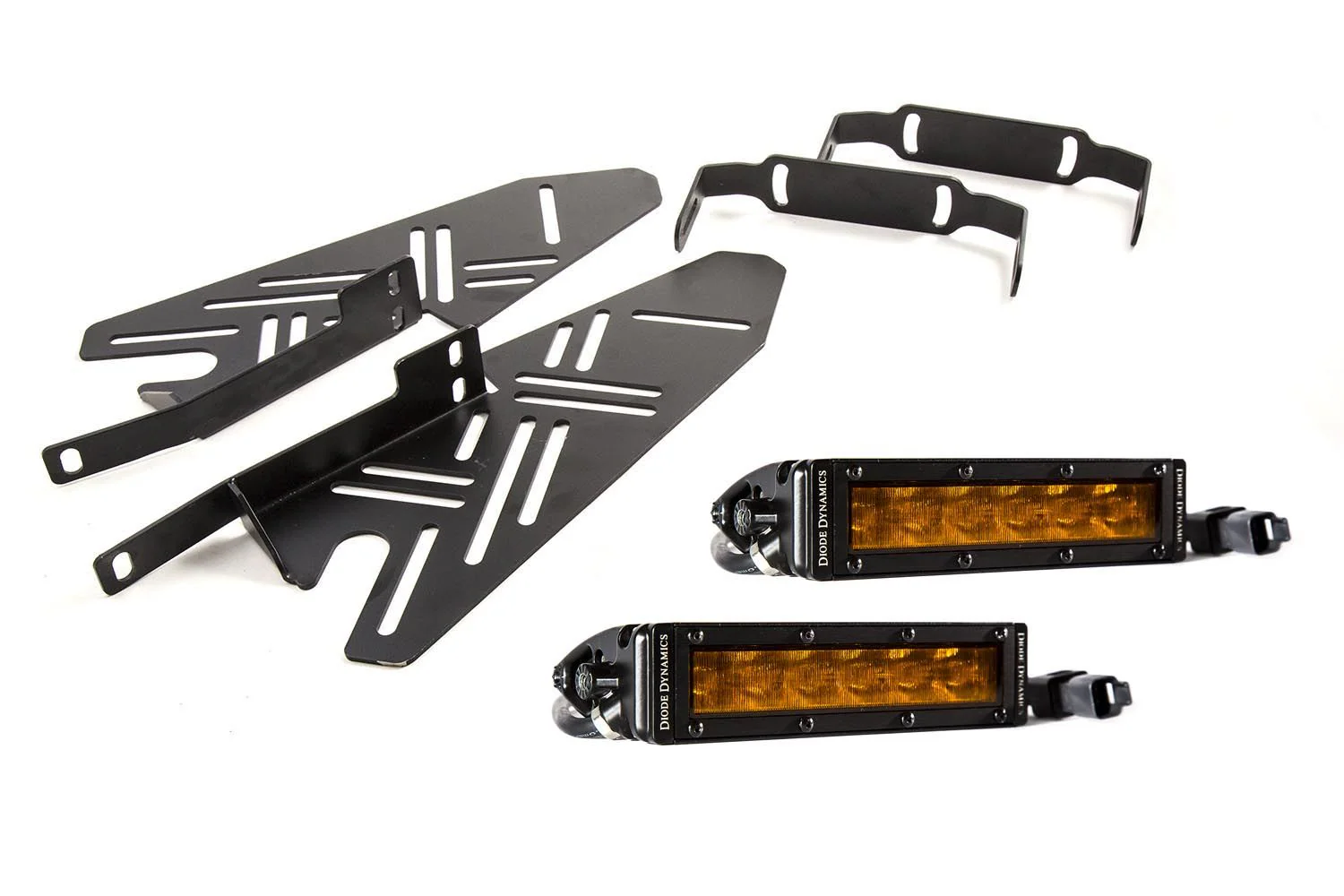

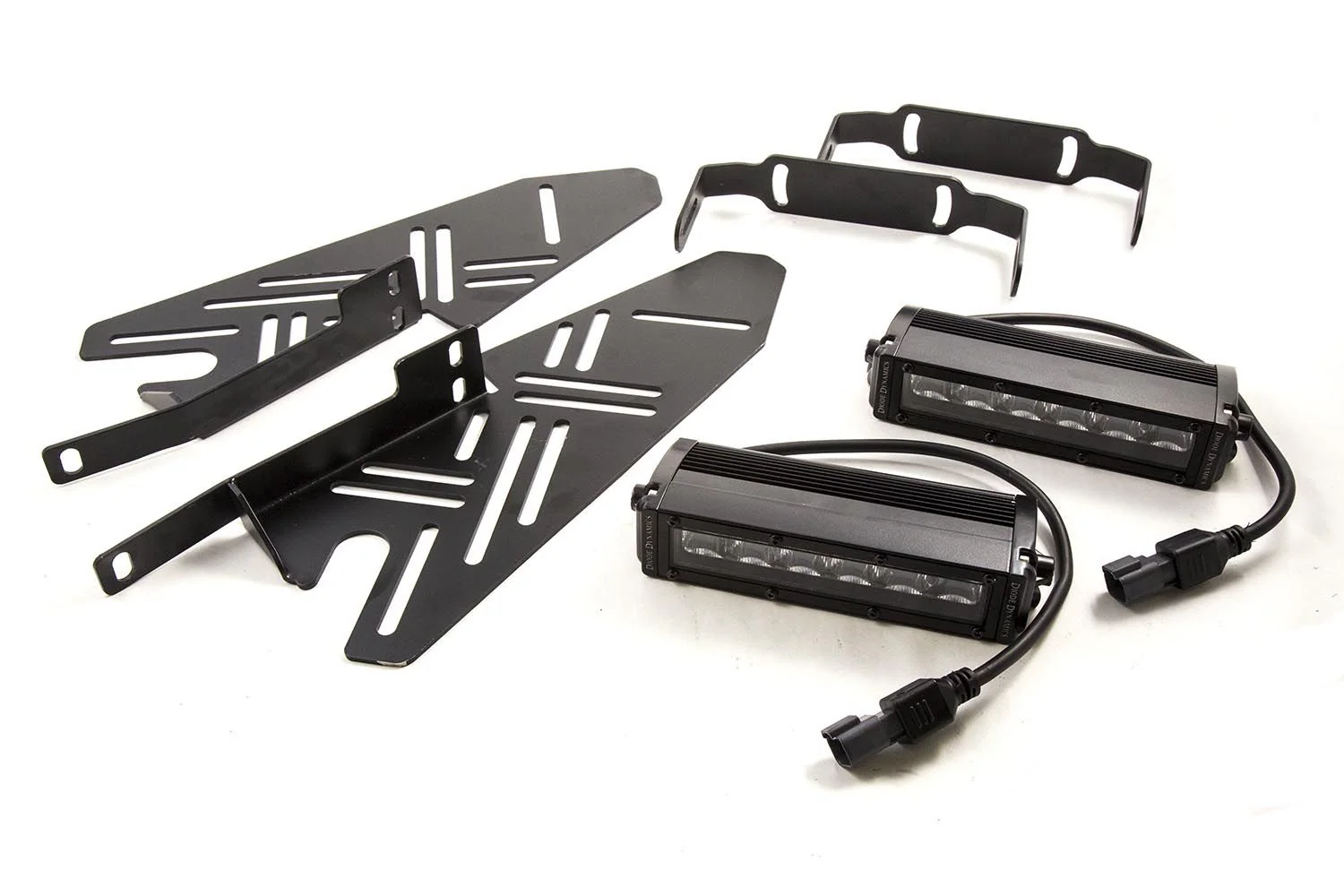

6" Light Bar Kit:
- Two (2) Application-specific brackets for installation on 2017-2019 Ford Raptor
- Two (2) U-brackets
- Two (2) SS6 Stage Series 6" Light Bars
- One (1) Light Duty Dual-Output Harness
- Installation Guide
-

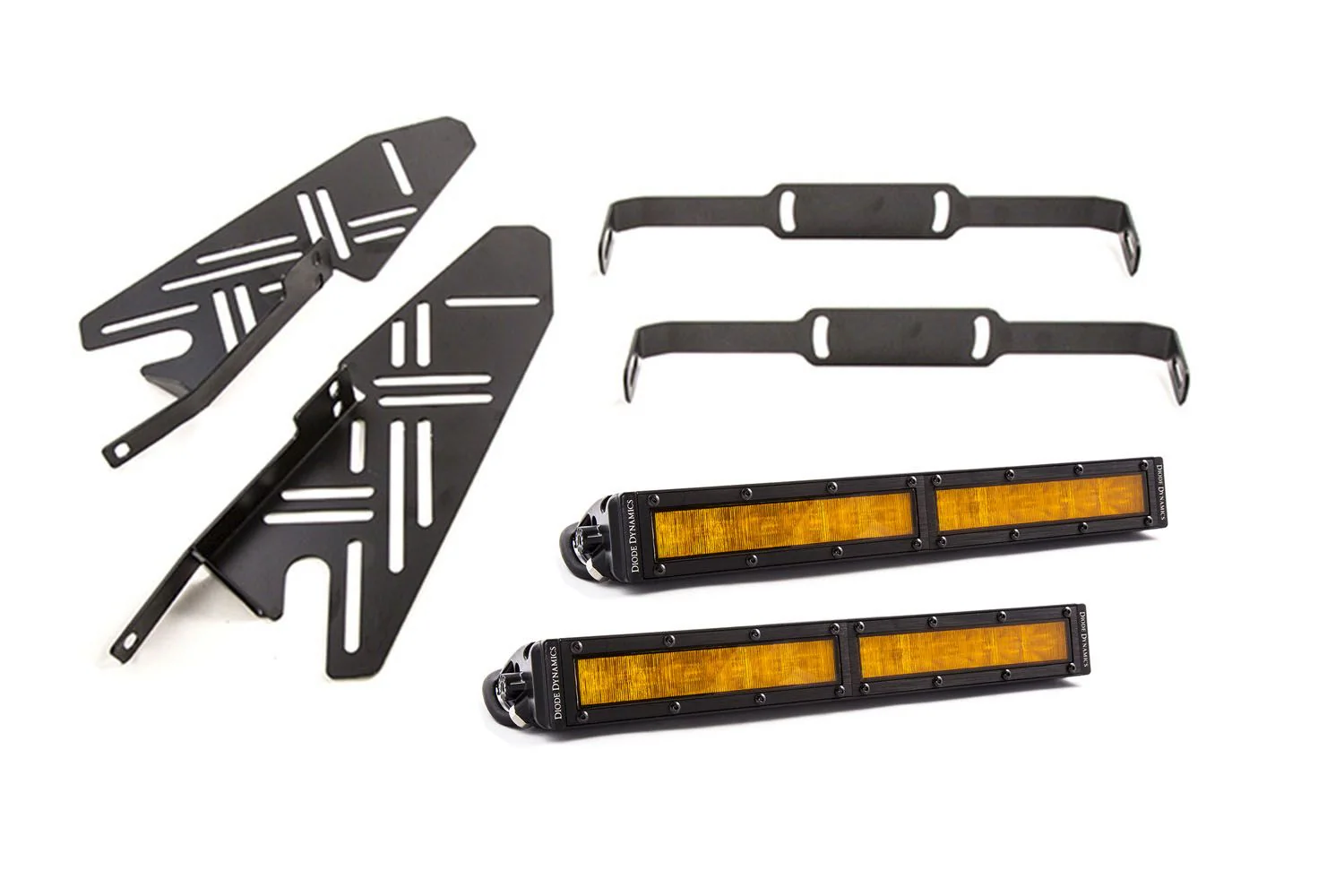

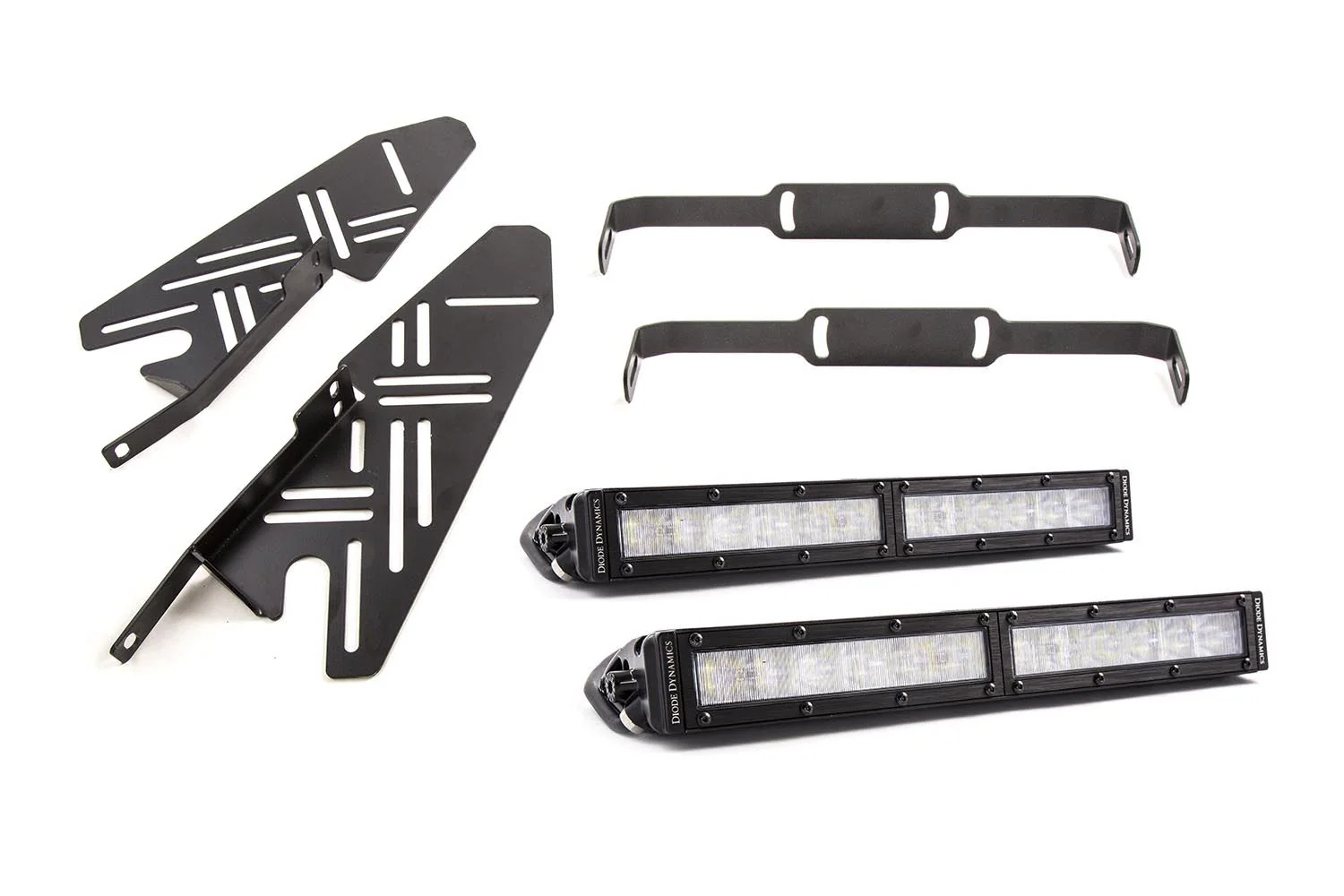

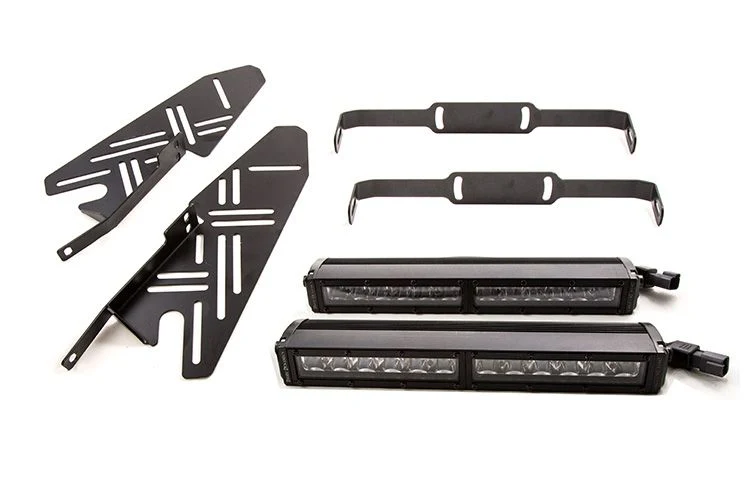

12" Light Bar Kit:
- Two (2) Application-specific brackets for installation on 2017-2019 Ford Raptor
- Two (2) U-brackets
- Two (2) SS12 Stage Series 12" Light Bars
- One (1) Light Duty Dual-Output Harness, or One (1) Heavy-Duty Dual Output 2-Pin Offroad Wiring Harness and One (1) Aux Switch Adapter Wire
- Installation Guide
