Diode Dynamics SS5 Grille CrossLink Lightbar Kit for 2020-2022 Ford Super Duty
Diode Dynamics SS5 Grille CrossLink Lightbar Kit for 2020-2022 Ford Super Duty

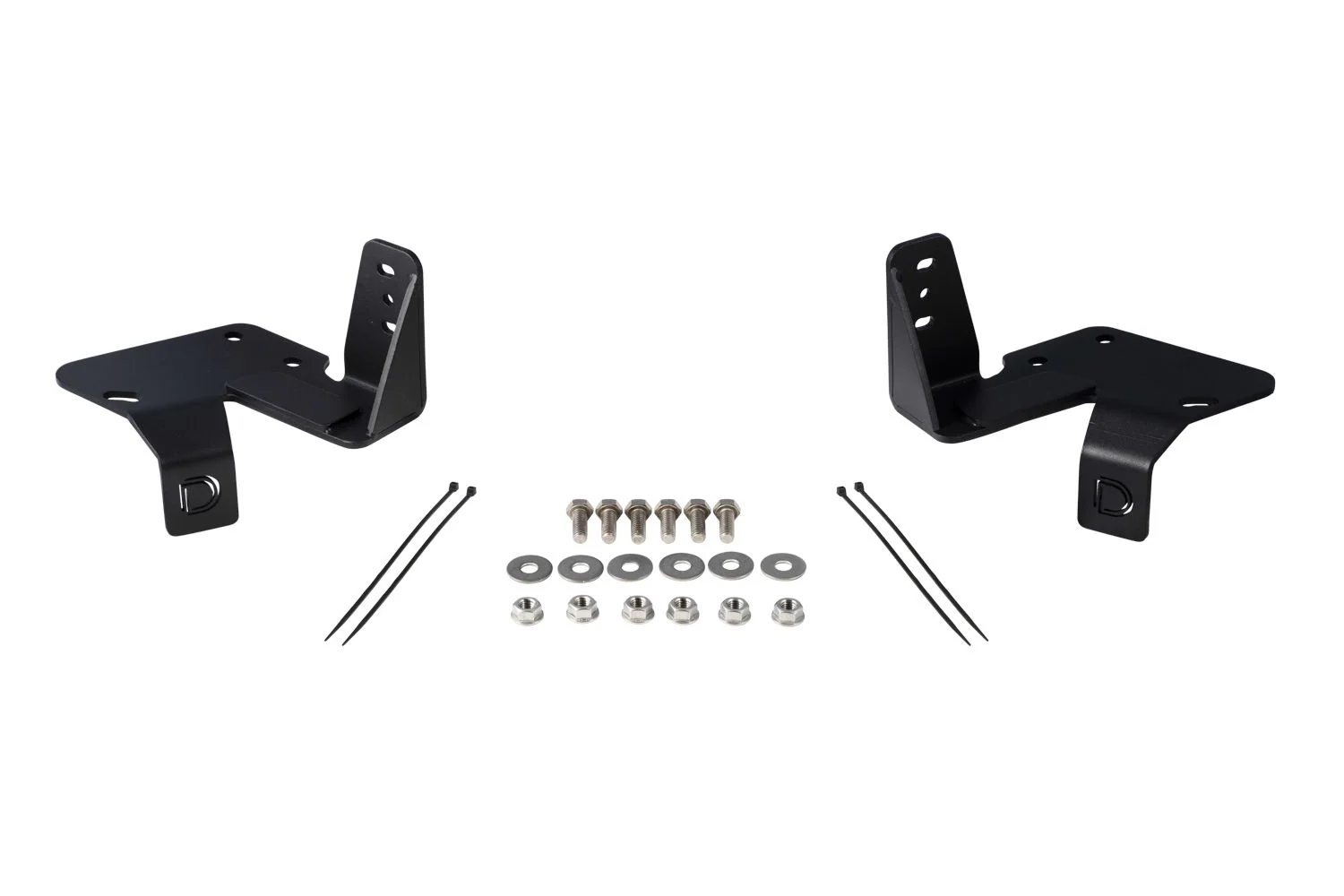

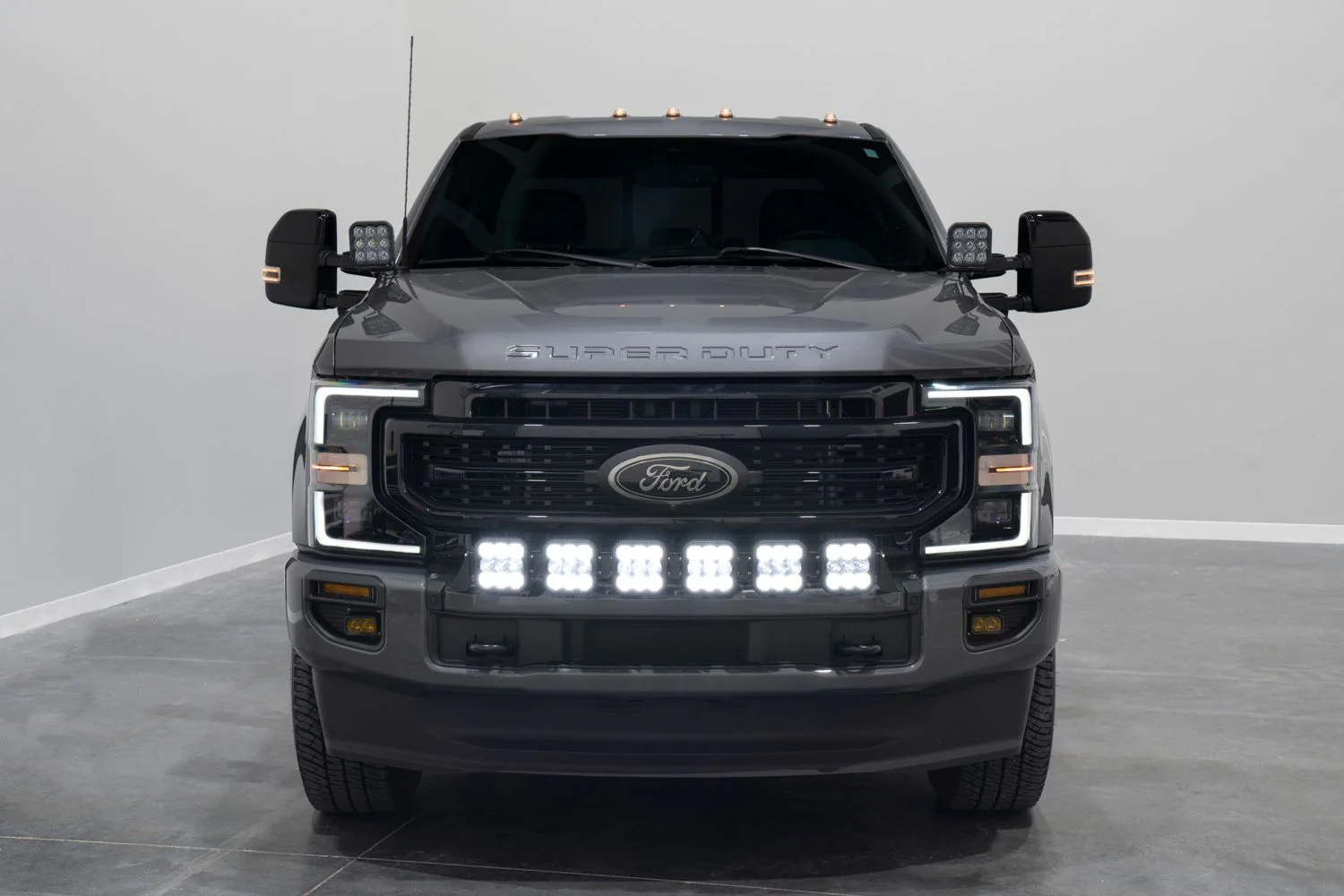

TheĀ GrilleĀ CrossLink Lightbar Kit for the 2020-2022 Ford Super Duty from Diode Dynamics allows you to mount sixĀ linked SS5 LED podsĀ in front of the factory grille. These application-specific brackets were CAD-designed to bolt into place using factory mounting pointsĀ on the factory grille. No cutting or drilling required!Ā
Features
- Bolt-on fitment on 2020-2022 Ford Super Duty
- Ultra-high intensity, with custom-engineered TIR optics
- Selectable backlight color, with eight color options
- Torture-tested, heavy-duty construction
- Control through factory aux switch bank using the included harness
-
Assembled in USA
Designed for Performance.Ā Featuring the highest output intensity of any 5-inch LED pod on the market, these auxiliary lamps have been designed for maximum functionality, with patented technology and custom-engineered TIR optics, all in a durable package.

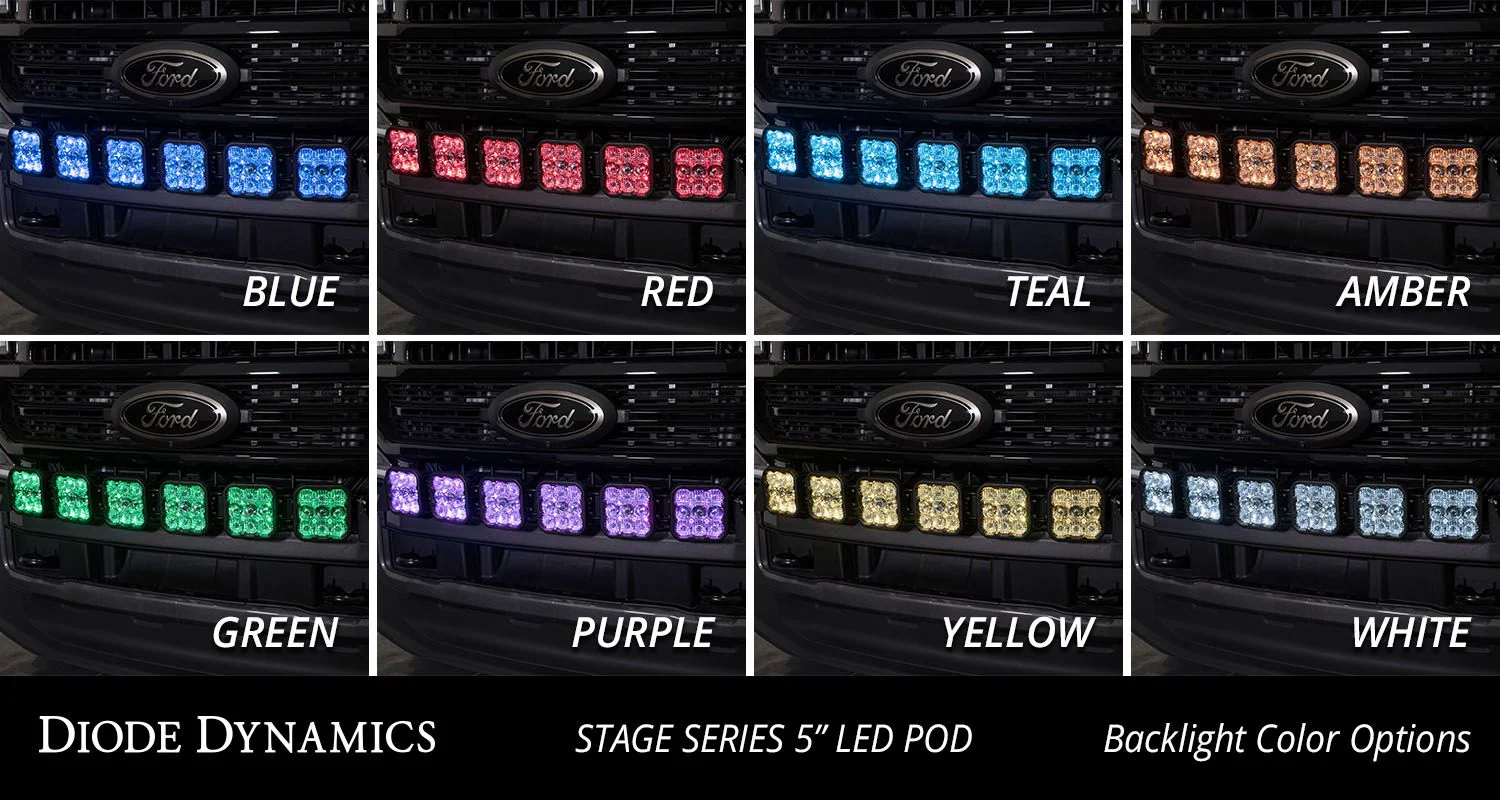

Selectable Backlight.Ā The SS5 LED Pods included in the White kit feature a selectable backlight with eight different color options, perfect for an extra styling accent, or for more visibility when youāre not using the main beam. Selecting your backlight color is easy - simply alternate the power on and off. Thereās no complicated programming with a controller! The SS5's backlight fully illuminates the TIR optic, providing unique accent lighting that you won't find on other LED pods.Ā NOTE:Ā Due to the yellow lens, the Yellow kit is only available with an Amber backlight color.
CrossLink. Patent-pending CrossLink technology allows you to link the five SS5s included in this kit together to create a single lightbar. Unlike other options on the market that use multiple pieces to link pods together, Diode Dynamics have designed a single-piece CNC aluminum link. This provides extreme rigidity, but is fully adjustable. This kit was designed for a curved configuration. And thanks to inset threaded mounts built-in to every SS5, there is no need to buy a special linking version of the SS5 for your setup.
Control through OEM Aux Switches.Ā Both kits include an OEM aux switch adapter wire that connects to the harness and allows you to control your lights using the factory-installed aux switch bank. Two switches will be used - one for the main beam, and one for the backlight. For those who don't have the aux switch bank, you will use the toggle switch adapter wire included with the harness to mount a switch.Ā
Functional Output.Ā Stage Series beam pattern options were designed with advanced optical simulation modeling, to shape the output in highly-functional beam patterns with high efficiency.
ComboĀ pattern combines both the Driving and Flood optics, perfect for all-around use. It shines light downrange in a focused 30x20 Driving beam to punch with distance, and fills in the surrounding area to create a full 70x30 degree pattern. With a row of driving optics in the middle, and a flood optic on the top and bottom, this has been designed to provide extra light for every situation.

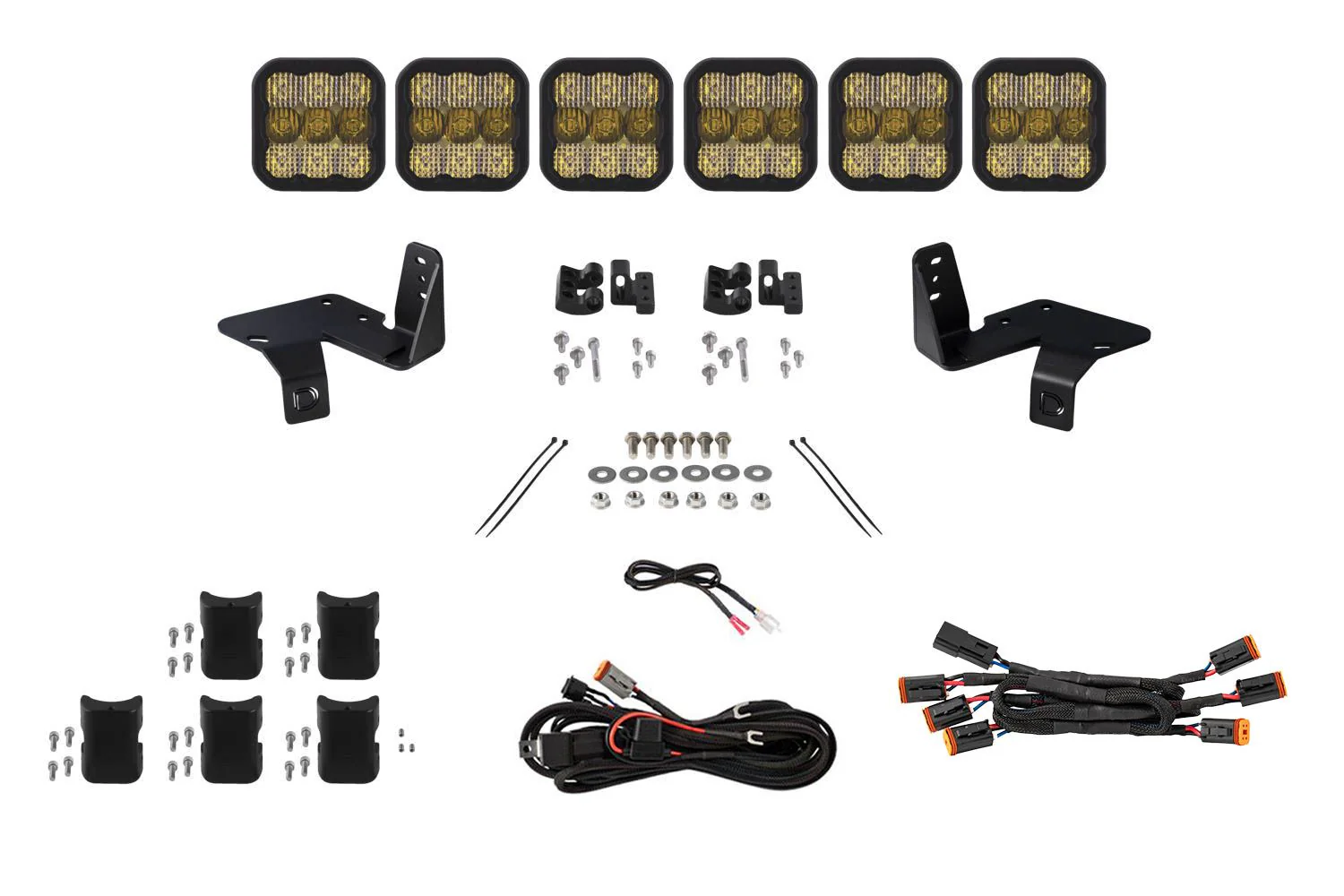

White or Yellow.Ā This kit is available in a cool white or selective yellow color. The white is a 6000K color temperature, which is a true cool white output, and matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road.
Sport or Pro.Ā This kit is available at two different power levels. All options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. The Sport model uses nine high-intensity LEDs for 40W of total power. The Pro model steps things up in a big way, with double the total power at 90W. Click the Specifications tab to see more information.

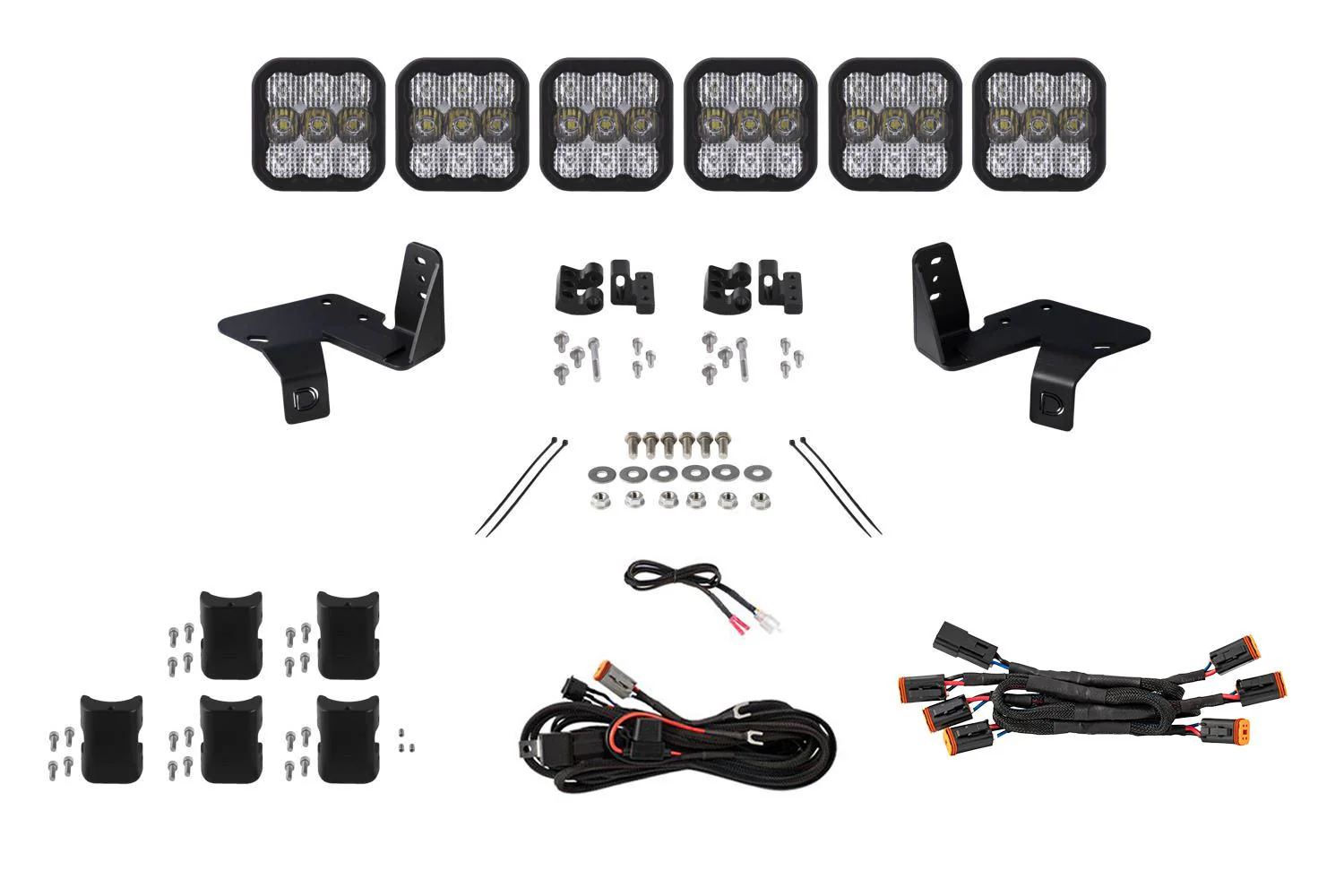

In the Box:
- One (1) Ford Super Duty Grille Mount Bracket Kit
- Six (6) Stage Series 5ā LED Pods
- Five (5) CrossLinks with Hardware
- One (1) CrossLink Endmount kit
- One (1) DT 6-Pod connecting harness
- One (1) Heavy-Duty Single Output Harness or One (1) Ultra Heavy-Duty Single Output Harness
- Installation Guide
Original: $145.07
-65%$145.07
$50.77More Images
