JD Fabrication 2005-2023 Tacoma Spring Under Rear Shock Mounts
JD Fabrication 2005-2023 Tacoma Spring Under Rear Shock Mounts

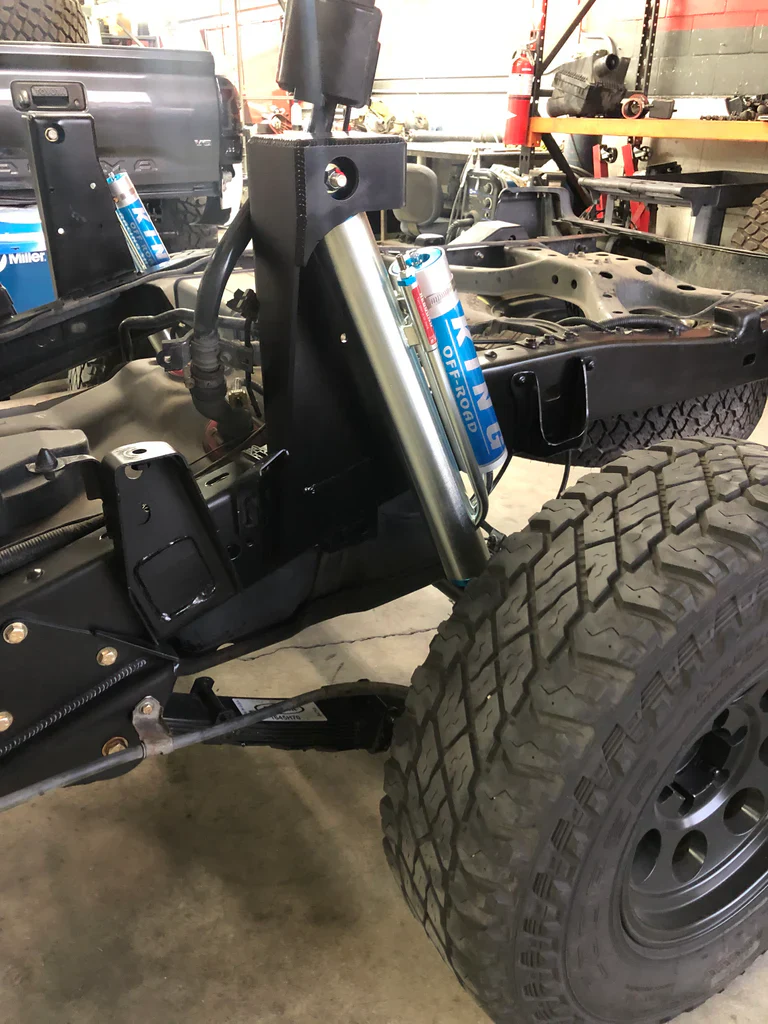

When using JD Fab's rear spring under kit for the Tacoma it is recommended to use their weld in shock towers to maximize the performance of your kit. The towers are constructed out of 1/4" laser cut and formed plate for maximum strength. These towers allow you to mount a 14" shock under the bed while still allowing the axle to bump out on the frame. The shock towers also allow the use of up to a 3.0" diameter bypass shock with the appropriate tube layout.

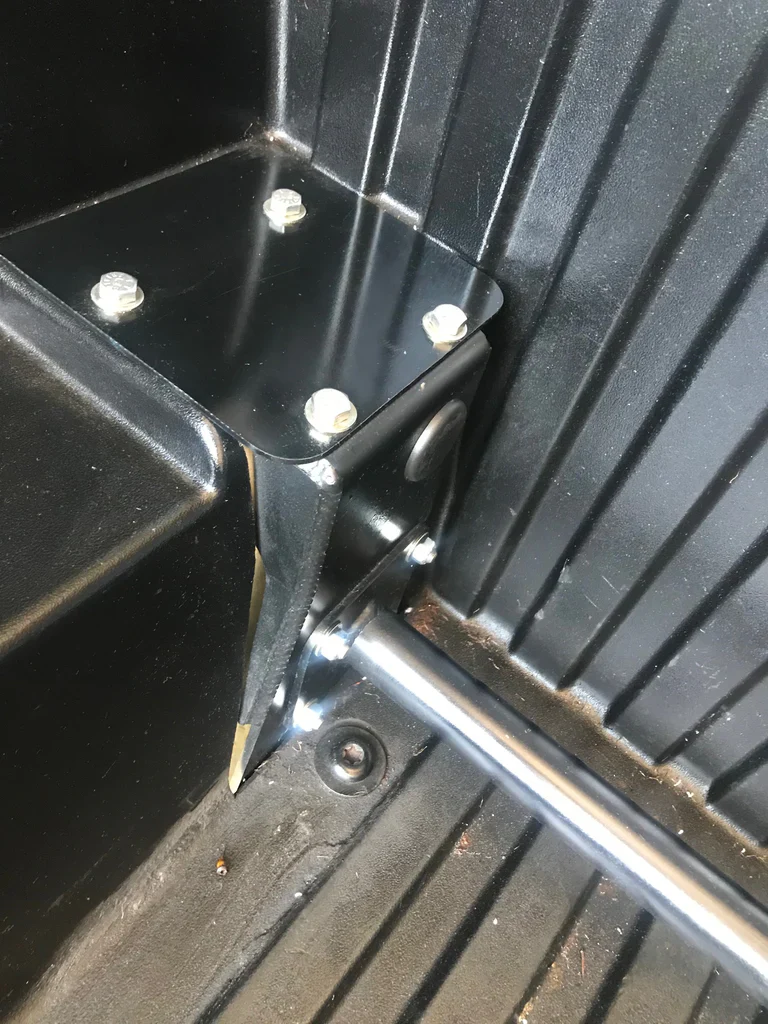

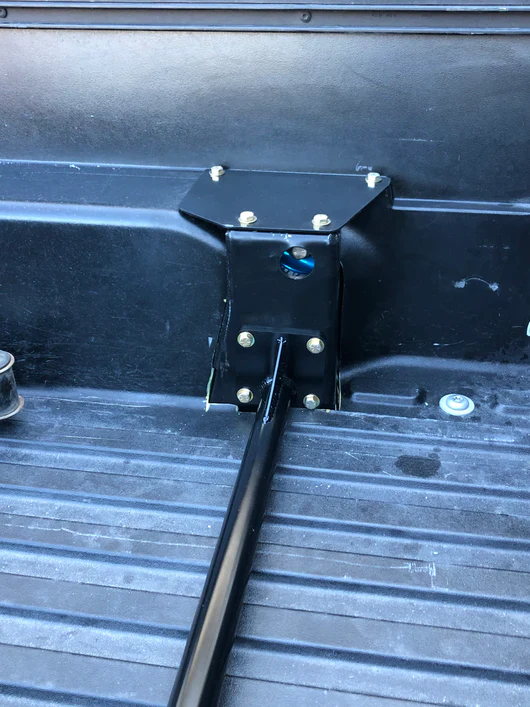

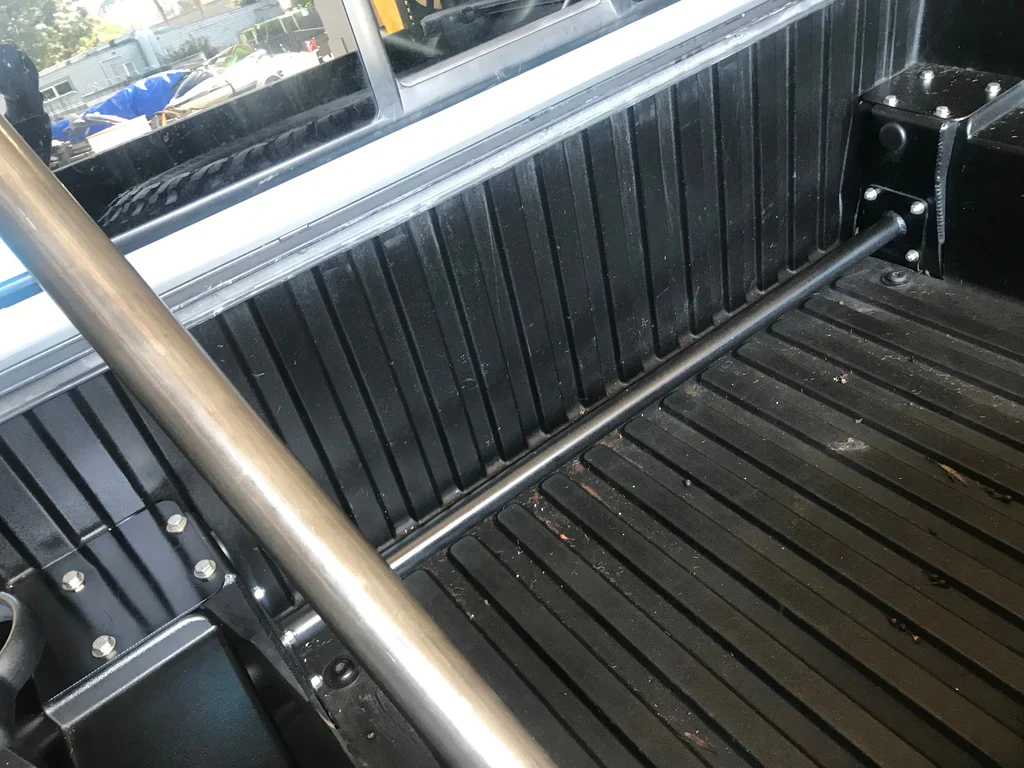

The towers are notched into the side of the bed and include top cover plates that bolt to the tower/bed. Cross bar plates and hardware are also included so you can run the optional cross bar. *Crossbar tube not included.* Also included are lower shock tabs that allow the shock to be mounted in front of the axle.
Because the position of the shock towers is so far forward on the frame the gas filler hose needs to be re-routed in front of the tower. JD Fab includes a hose kit that allows you to do the re-route and still utilize the factory gas door.
This kit will work on both second and third generation as well as short and long bed versions. On the long bed the shock towers will be further back off of the cab then the short bed but the frame mounting is identical.
Original: $989.48
-65%$989.48
$346.32More Images
