Long Range America Toyota Land Cruiser 250 Series & Lexus GX550 (2024+) 24 Gallon Auxiliary Fuel Tank

Long Range America Toyota Land Cruiser 250 Series & Lexus GX550 (2024+) 24 Gallon Auxiliary Fuel Tank

100% Australian Made from 2mm aluminized steel, this 24-gallon auxiliary tank is designed specifically for the Toyota Land Cruiser 250 Series (gas engine). This seamless upgrade extends your vehicle’s range and provides reliable fuel capacity for long-distance adventures.

• Capacity: 24 gallons, in addition to the factory 17.9-gallon tank, for a total of 41.9 gallons.

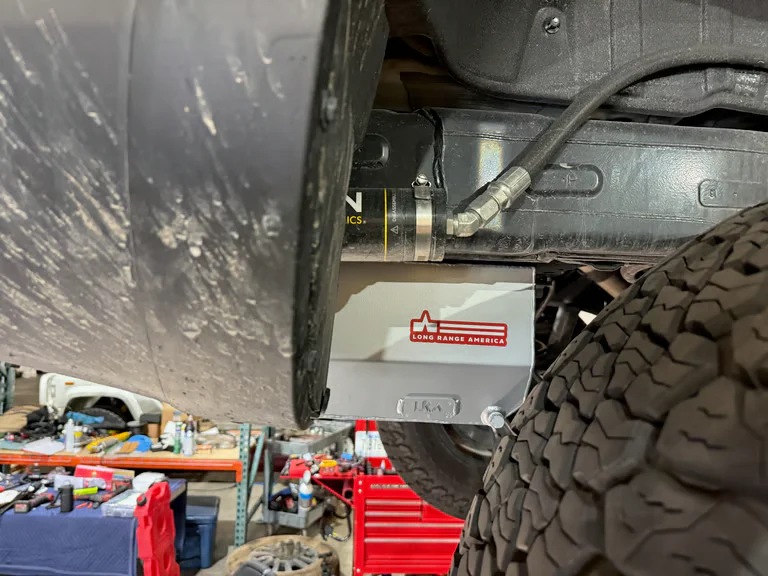

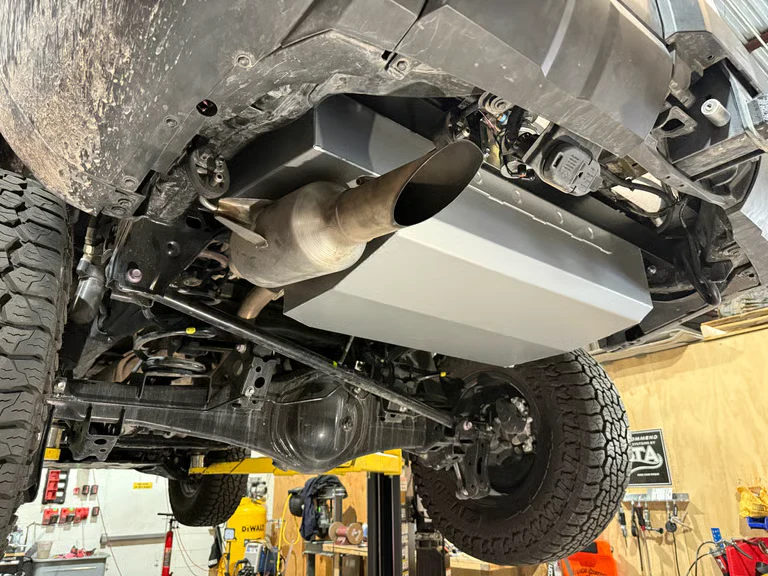

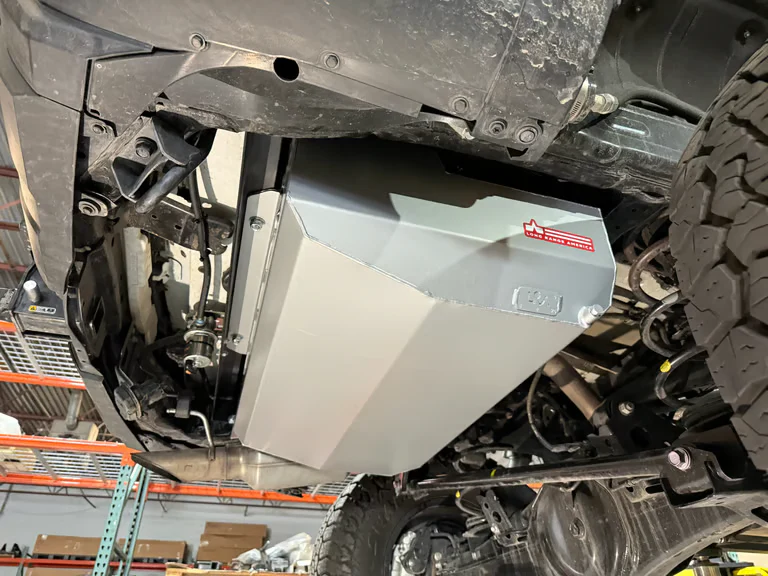

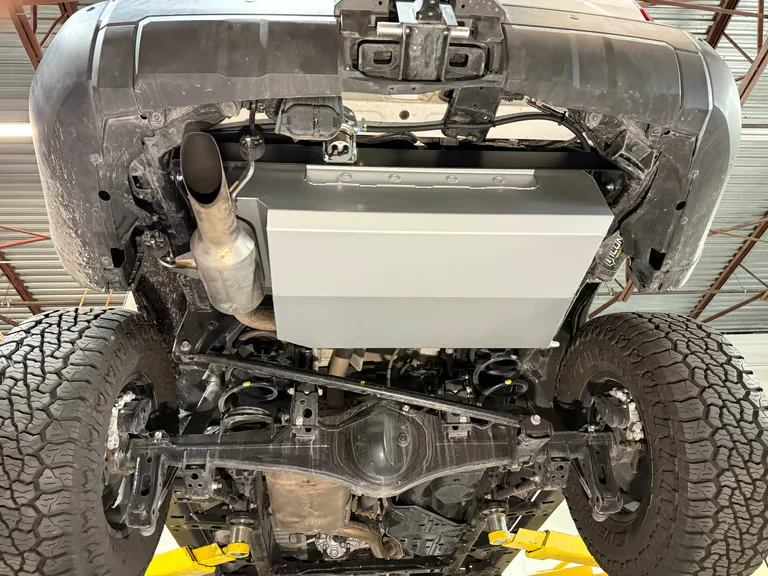

• Fitment: Installs in place of the factory spare tire (spare tire relocation required).

• Fueling: Uses the OEM fuel door with a new dual filler neck and supplied parts.

• Operation: Equipped with a transfer pump (½ gallon per minute with stock pump) to refill the main tank at the push of a switch.
• No exhaust modifications required.

Installation: DIY is possible, but we recommend professional installation by a certified installer for best results.

GX550 platform will require the rear resonator to be changed to a AFE style tail pipe Part Number 49-46081.

⚠️ Note: Fuel tanks are not intended to be topped off. Doing so will void the tank warranty.

Tank Type	Auxiliary
Gallon Capacity	24
Fill Point	Dual Fill Point
Fuel Type	Gas
Relocate Spare Tire	Yes
Weight (No Fuel)	85lbs
Recommended Install Time	8 hours
