NYTOP 2023-2026 Toyota Sequoia Rock Sliders
NYTOP 2023-2026 Toyota Sequoia Rock Sliders

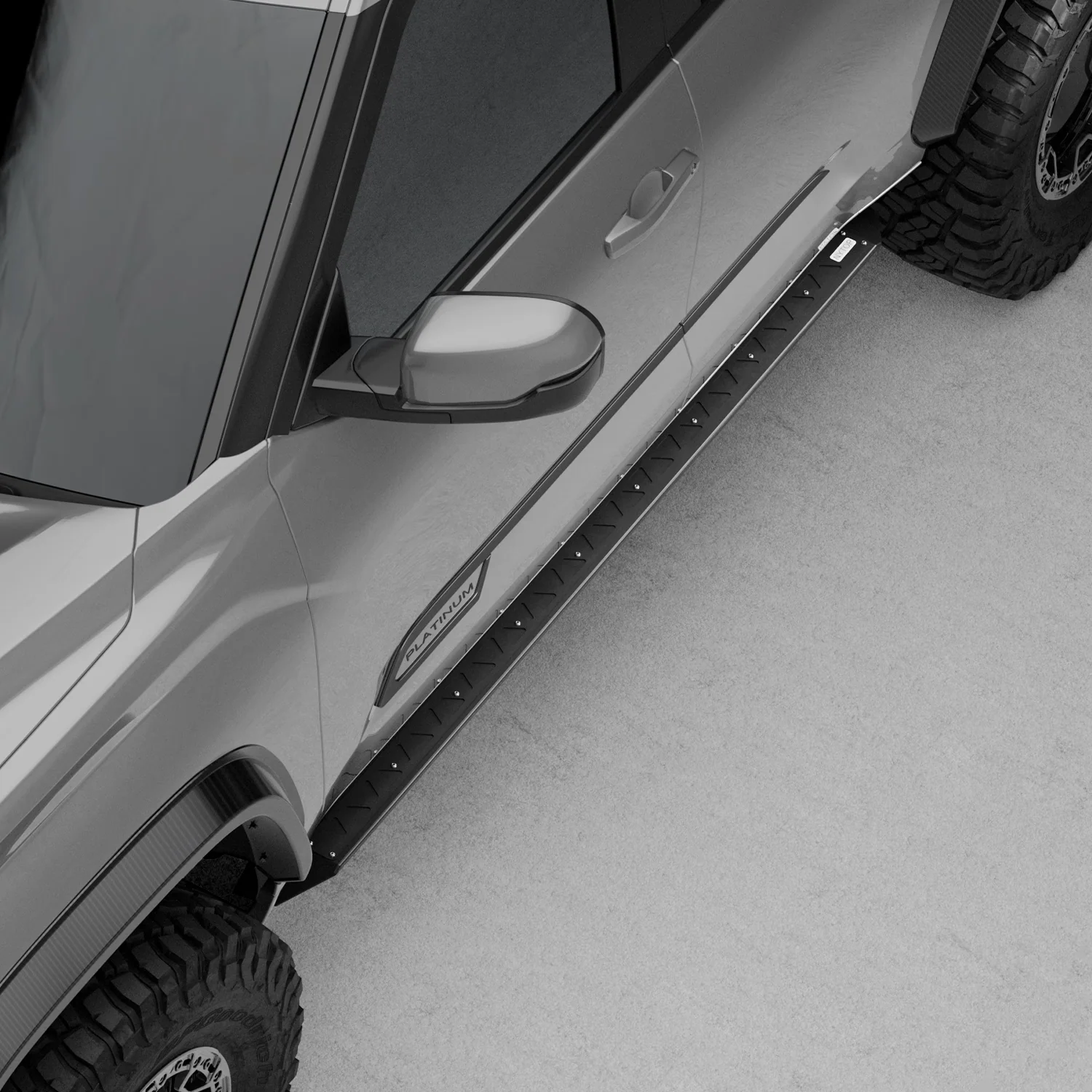

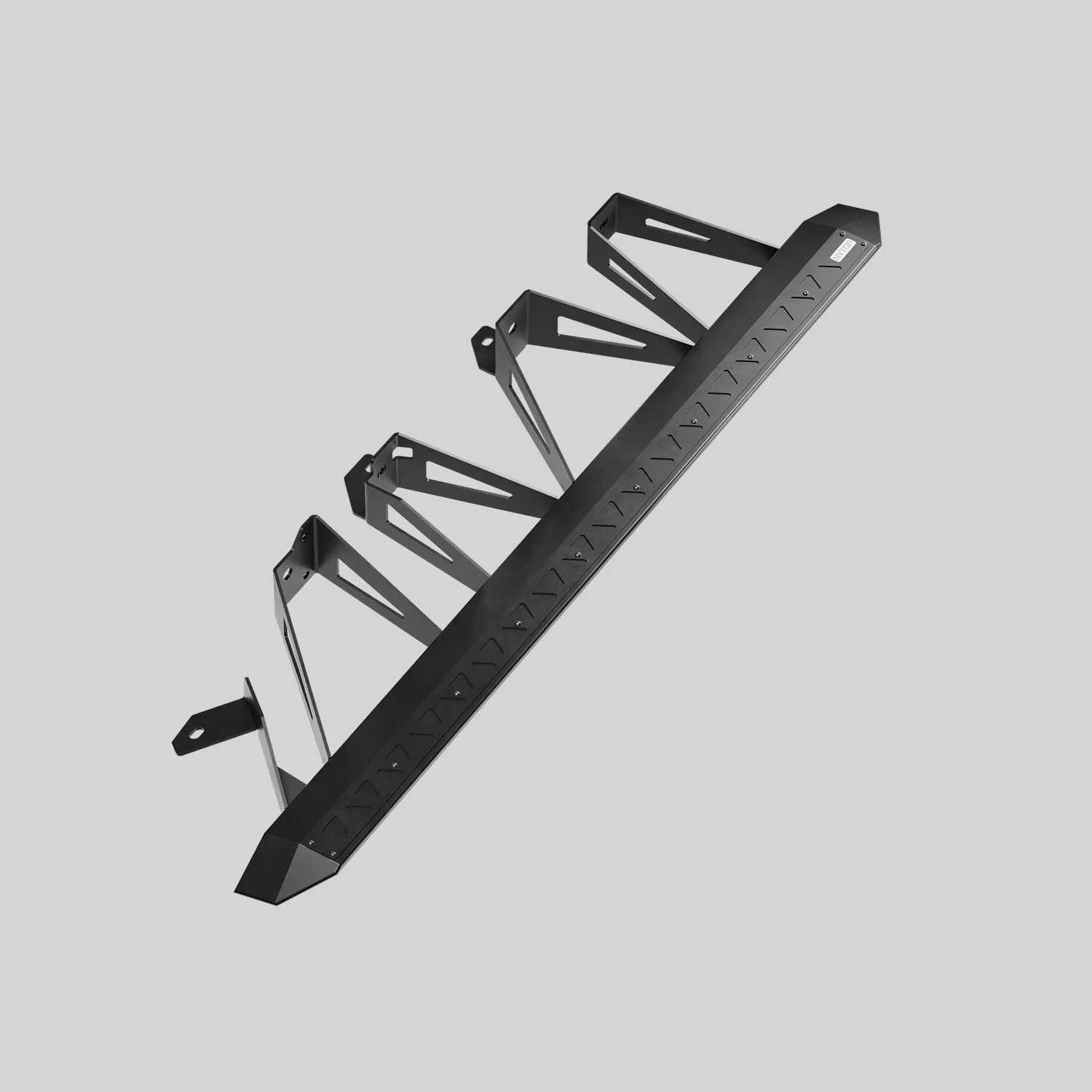

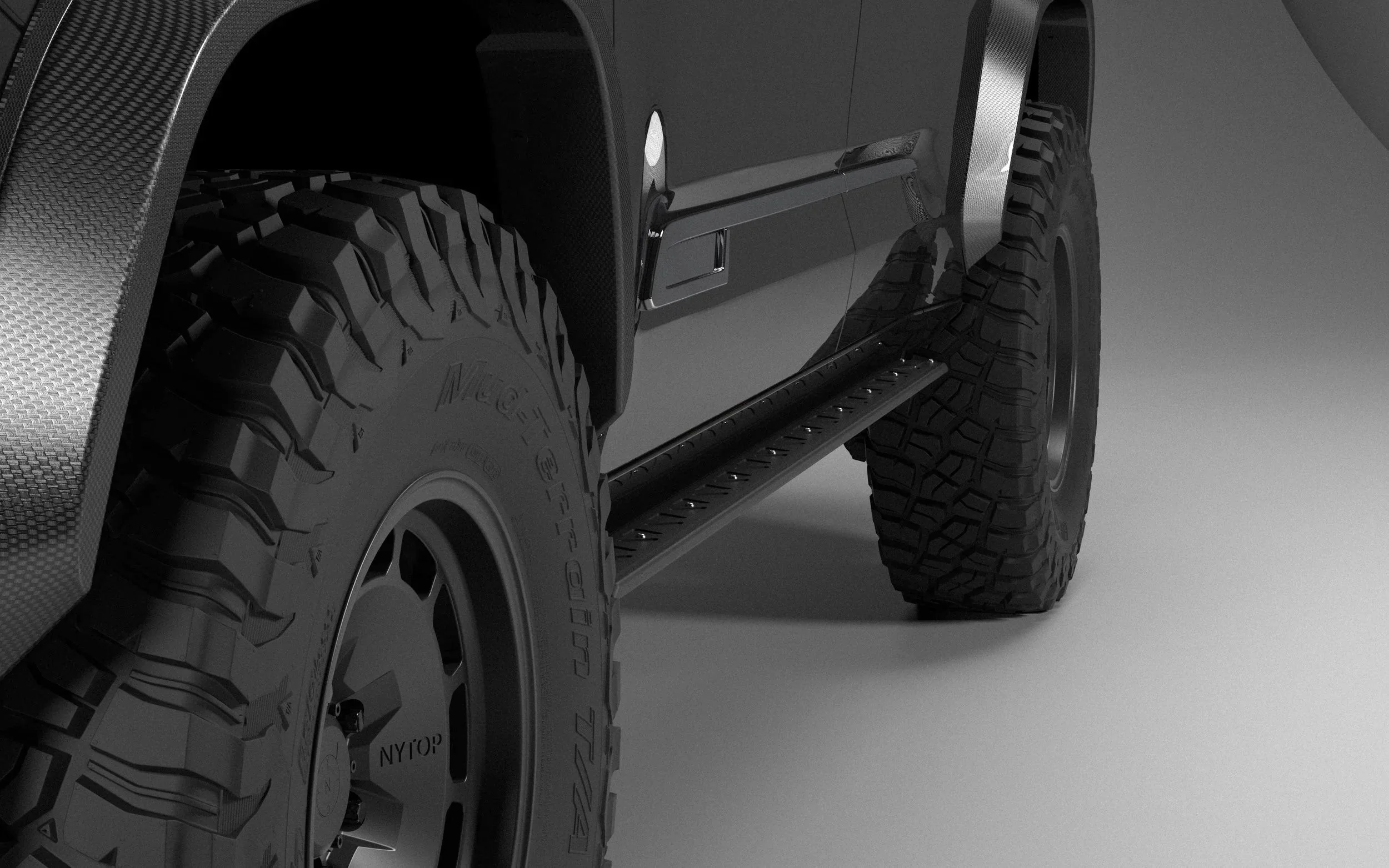

These Not Your Typical Rock Sliders for the Toyota Sequoia mount directly to the frame, providing protection to the vehicle’s body, while also acting as side steps. They are finished in wrinkled black powder coat, and TIG welded with 3/16-inch and ¼-inch high-strength steel to ensure durability.
The sliders have a high clearance and a low profile. They are also crafted with a non-traditional design that forgoes conventional tubular construction. This change allows for a 28.5° flat, angled bottom surface optimized for sliding, while the top remains level to provide a practical, 4-inch wide stepping platform for effortless vehicle entry and exit.
NYTOP Rock Slider Stress Test Results:
• 1.3 Metric ton (2866 lbs): 2mm flex with full spring back.
• 1.7 Metric ton (3748 lbs): 3mm flex with 1mm deformation after spring back.
• 2 Metric ton (4409 lbs): 4mm flex with 1.5mm deformation after spring back.
• 3 Metric ton (6614 lbs): 6mm flex with 2mm deformation after spring back.
All necessary mounting hardware included. Our rock sliders are mounted using our special patent pending hardware, in order to prevent any trimming, drilling or any irreversible changes to the vehicle.
Torque down all the M6 BoxBolts® to 14 ft-lbs./19 Nm., the M8 BoxBolts® to 19 ft-lbs./25 Nm., the M12 BoxBolts® to 59 ft-lbs./80 Nm., the regular M12 bolts to 75 ft-lbs./101 Nm., and our patent pending M14 blind studs and nuts to 105 ft-lbs./142 Nm.
