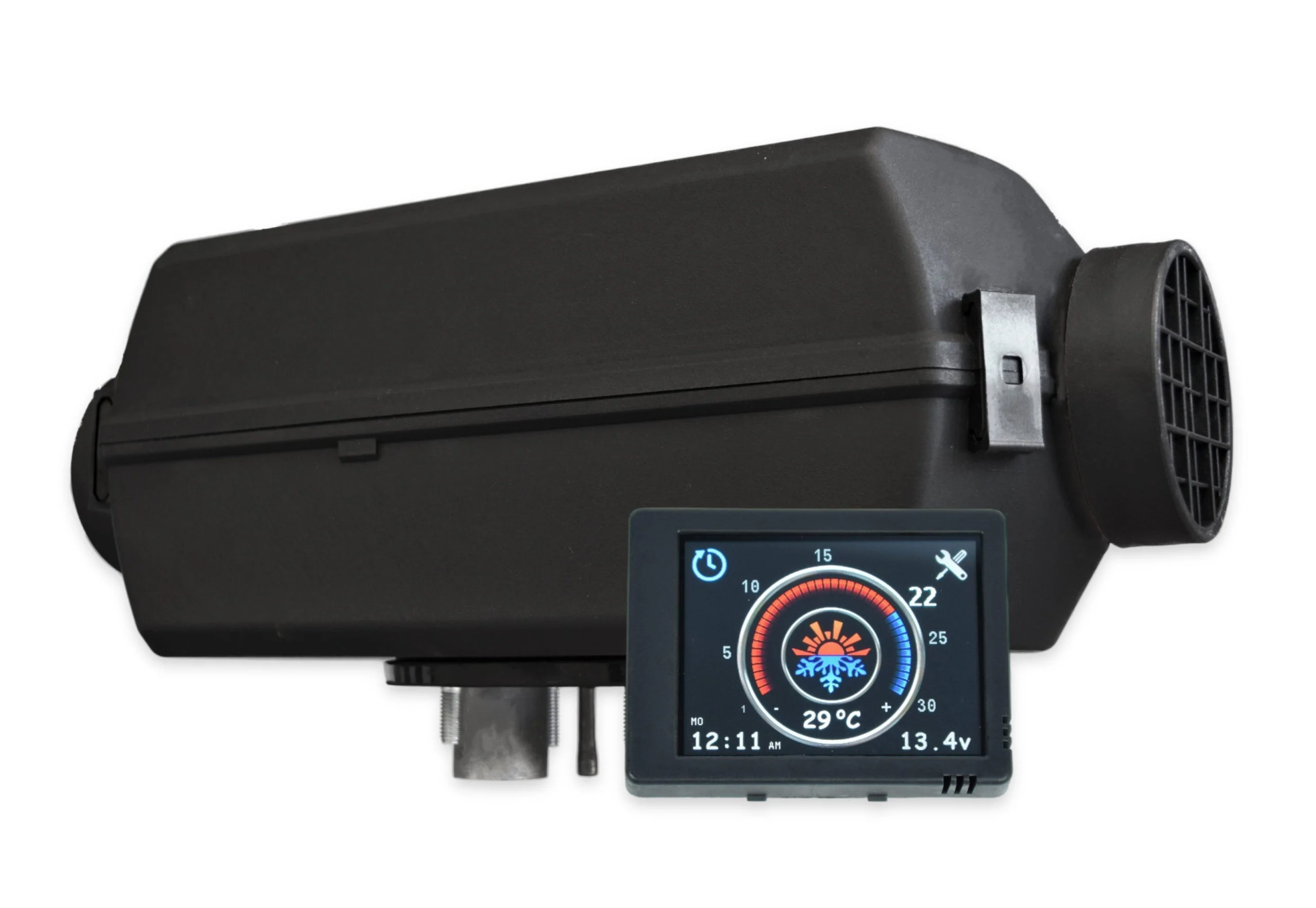

Planar 2D-HA(TR) Diesel Air Heater Autoterm Truck Kit
Planar 2D-HA(TR) Diesel Air Heater Autoterm Truck Kit
Diesel Air Heater Autoterm 2D-HA(TR) Truck Kit comes with the analog or digital controller, basic installation kit and Operational Manual. The heater is equipped with a self-adjusting system for operations at high altitudes up to 2500 m / 8200 ft. There are two modifications: 12 V and 24 V.
Refer to Operation Manual for installation and operation procedures.
For heating up to 25 ft. boats, commercial trucks, campers and vans.

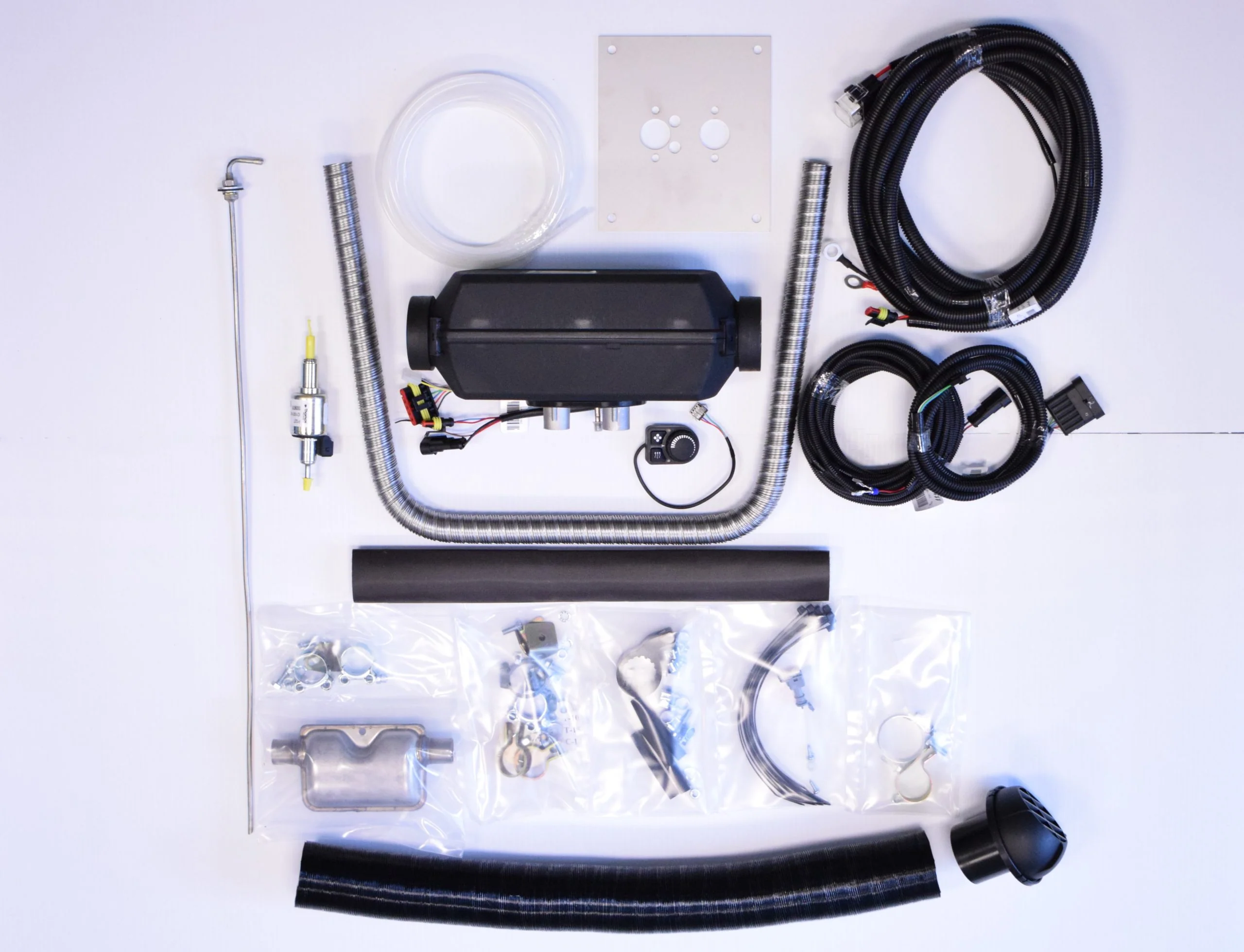

Kit Contents:
| Product | Contains |
|---|---|
| Autoterm 2D – Diesel Air Heater | 1 |
| Inline Metering Fuel Pump | 1 |
| Fuel Line, M | 5.5 |
| Fuel Pick-UP Stand Pipe | 1 |
| Stainless Steel Flexible Exhaust, FT. | 3 |
| Exhaust Clamp | 1 |
| Combustion Air Intake Hose, FT. | 2 |
| Remote Wired Controller | 1 |
| Fuel Pump El. Cable, 6 M. | 1 |
| Power Cable with Fuses | 1 |
| Set of Fasteners & Brackets | 1 |
Â
Extended Kit:
| Product | Contains |
|---|---|
| Mountaing Plate; item# PM-002 | 1 |
| High Temperature Air Hose; PDH60-001 | 2 ft. |
| High temperature air vent; PDH-014 | 1 |
Â
Technical Details:
| Heat Output; kW (BTU): | 0.8 – 2.0 (2.700-6,850) |
| Fuel Consumption; l/h (gal/h): | 0.10-0.24 (0.03-0.06) |
| Nominal Supply Voltage; V: | 12 or 24 |
| Power Consumption; W (A): | 10-29 (0.8-2.42) |
| Airflow Rate; m3/h: | 34-75 |
| Weight; kg: | 7.0 |
| Â L x D x H; mm: | Â 324 x 118 x 119 |
| Â Operating Modes: | Â Manual / Automatic |
