Redarc BCDC Alpha 50A Across Engine Bay Install Wiring Kit

Redarc BCDC Alpha 50A Across Engine Bay Install Wiring Kit

Make your next BCDC Alpha 50A installation simple with REDARC’s BCDC Alpha 50A across engine bay wiring kit.

Compatible with: BCDC Alpha 50A DC Battery Charger (BCDC12050B) & BCDC Alpha50 R DC Battery Charger (BCDC12050R)

The BCDC Alpha 50A Wiring Kit has been designed to facilitate simple installation of a REDARC BCDC Alpha 50A DC to DC Battery Charger when the start battery and secondary battery are at opposite ends of the engine bay (more than 1.5m but less than 2.5m apart).

This wiring kit contains all the cables, fuses, fuse holders and connectors required to install the BCDC Alpha50 when the batteries are on opposite side of the engine bay. The cables come pre-crimped on one end and, and the other end of the cables can be trimmed to length to suit the specific installation. Pair with a BCDC Mounting Bracket to make under bonnet installation simple.

When installing the BCDC Alpha R, this wiring kit requires modification, follow our Tech Tip here to learn how.

FEATURES

• Suits engine bay installations
• Perfect for batteries on opposite ends of the engine bay
• Complete wiring solution
• Suits BCDC Alpha 50A
• Cables supplied pre-crimped at one end
• All required cables, fuses, fuse holders and connectors included

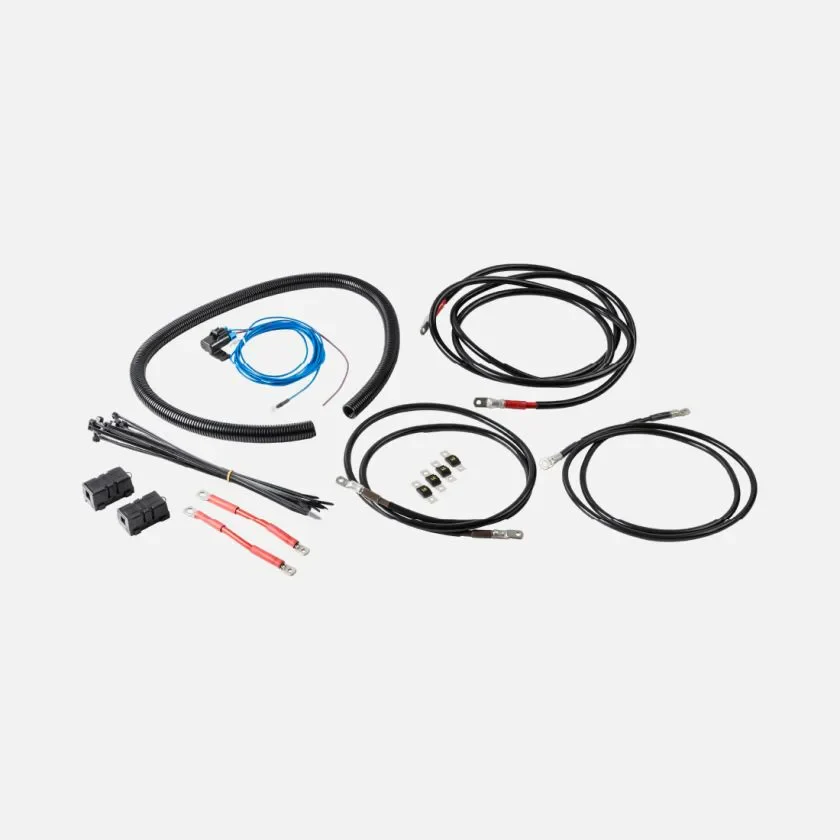

KIT INCLUDES

• 1 of each brown, black and red cable
• 60A Fuse kit (supplied with 4 x MIDI fuses and 2 x MIDI fuse holders)
• 2 x 150mm red cable
• 1m Protective Conduit
• 15 x Cable ties
• Blue cable (2A MINI Blade Fuse, 1 long blue cable and 1 short red/blue cable)

Specific cable lengths and gauges can be found in the BCDC Alpha Wiring Kit manual.
