RotoPAX RollPAX Mounting Hardware
RotoPAX RollPAX Mounting Hardware

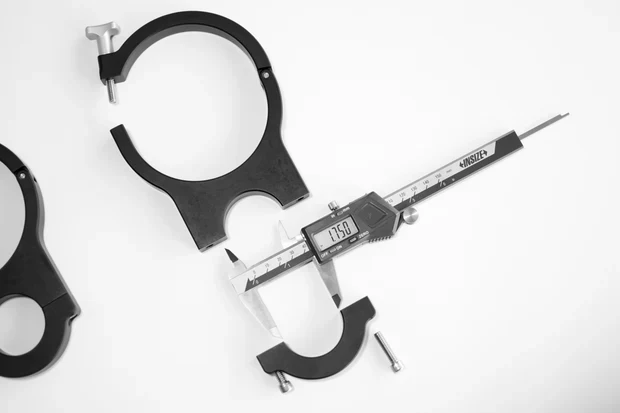

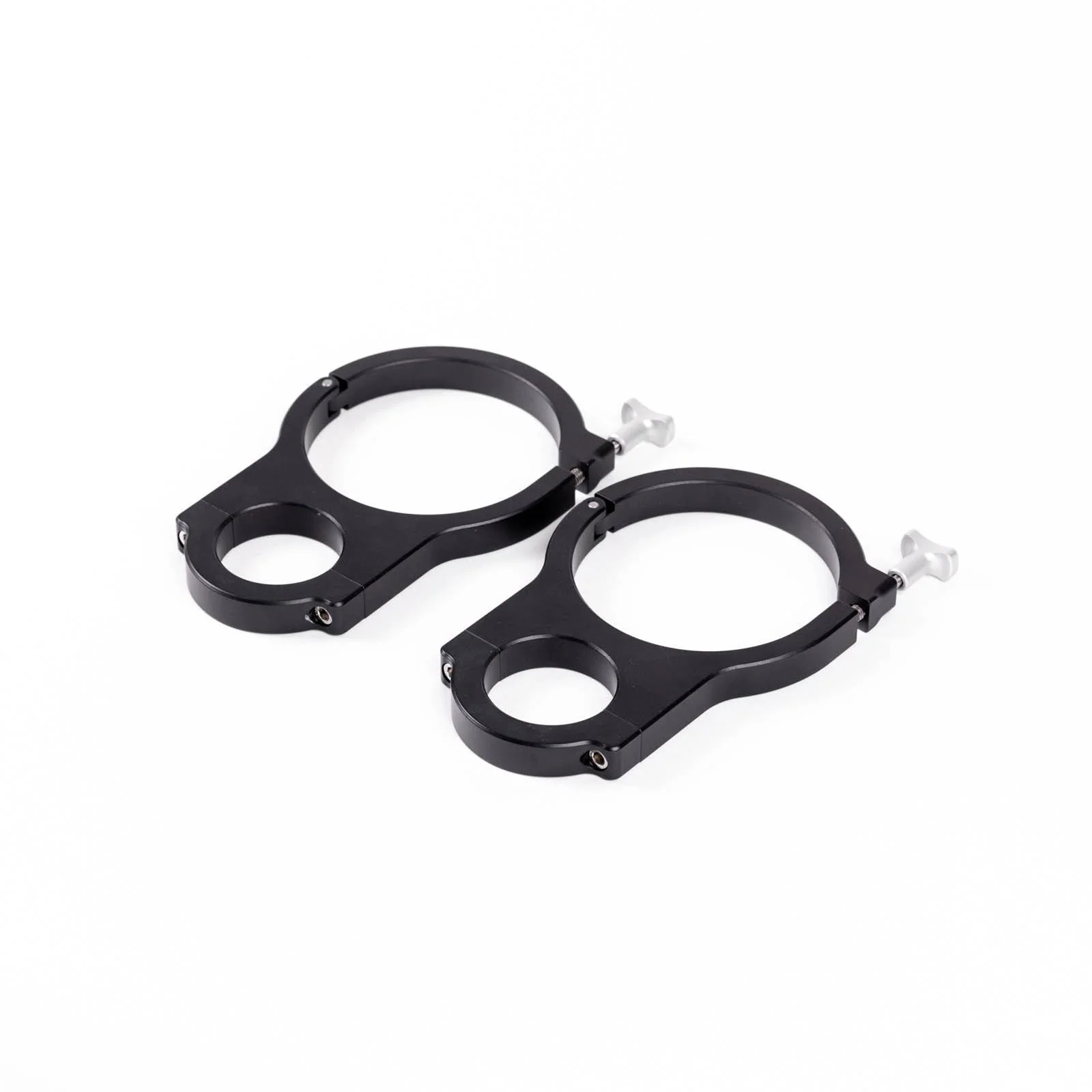

Mount Kit for RollpaX! High-grade CNC-machined aluminum mounts are available in multiple bar diameter sizes, as well as a flat version that uses RotopaX's standard packmount hole pattern. This is to be sure that they will fit perfectly on any vehicle or surface you have.
Dimensions
Compatible with 1.75" or 2" tubing
OEM UTV Roll Bar Tube Diameters:
POLARIS
- Pro 2 seat and 4 seat 2.0″
- Turbo S 1.75″
XP1000 AND XP4 1000 1.75”
XP Turbo and XP4 Turbo 1.75”
RZR 900 2015 and up 1.75”
2014 and older RZR’s Perimeter 1.75”
2014 and older Polaris Ranger and RZR and RZR S and XP Rear Harness Bar and Rear Bumper crossbars 1.5” (4 seat versions have a 1.25” rear top crossbar as well) - General (Pro Fit cage NOT ROUND use PF-OUT & PF-IN clamps)1.75” top crossbar only (rearview mount)
Ranger (Pro Fit cage NOT ROUND use PF-OUT & PF-IN clamps)1.75” rear harness bar only
Ranger Crew (Pro Fit cage NOT ROUND use PF-OUT & PF-IN clamps) Use 9” Bolt On mirror for rearview - Polaris RZR 170 1.25″
YAMAHA
- YXZ 1000 1.75″ Perimeter Top crossbars 1.5”
- Rhino Perimeter 1.75” Top Crossbars 1.5”
- Rhino Steering column 1.5”
- Viking and Viking 6 seater 2.0”
- Wolverine Perimeter 2.0” Top Crossbars 1.5”
KAWASAKI
- Kawasaki Teryx / Teryx 4 Perimeter 1.875” Top Crossbars 1.7”
HONDA
- Talon 2.0″
Pioneer 1000 1.75”
Pioneer 700 1.625”
Pioneer 500 1.625”
Big Red 1.625”
ARCTIC CAT
- XX 1.75″
Wildcat / Wildcat 4 1.75″
Prowler (must have aftermarket cage installed)
CANAM
- Maverick X3 Perimeter 2 seat and 4 seat 1.85″
- Maverick X3 Some top crossbars are 1.5″
- Maverick X3 Rear harness bar 2.5″
- Maverick Sport X XRC (Pro Fit cage NOT ROUND use PF-OUT & PF-IN)1.85” on all other round tubes on cage. 1.5″ on bumpers
- Maverick Trail (Profile cage NOT ROUND use PF-OUT & PF-IN)1.85” on all other round tubes on cage. 1.5″ on bumpers
- Commander 2.0”
