Sherpa Adjustable Track Mounting Feet

Sherpa Adjustable Track Mounting Feet

Sherpa's adjustable mounting feet can be used in many applications. Perfect for building any DIY roof rack or upgrading the feet on most existing rack systems. These are also designed for Sherpa topper racks and load bar systems.

These feet allow for 1” - 1-1/2” height and 1-7/8” - 2-5/16” height, as well as +-17° of angle adjustment. Designed for 10-series extrusion.

Available in a flat version and a contoured roof version to best suit your needs.

Comes with 1 adjustable foot and mounting bolts to connect to the track. Roof Track Anchor Plates or any kind of track nut/capture nut that slides into your track to bolt these down in not included. Please make sure you have at least 2 per mounting foot.

Guide To Sherpa's Adjustable Track Mounts

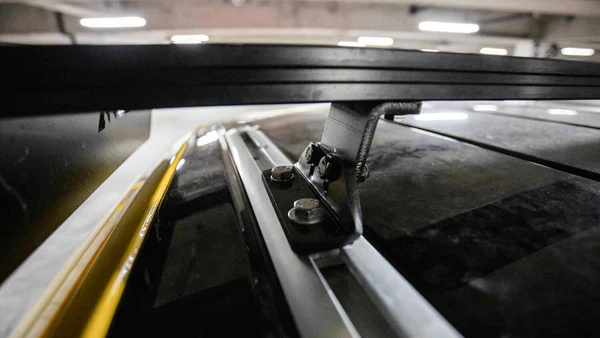

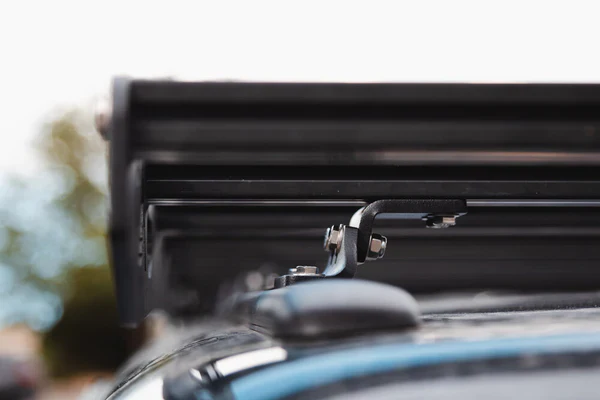

Several of Sherpa's products make use of their adjustable track mounting feet to attach to the roof tracks of the vehicle. These mounts are designed to accommodate a wide variety of vehicles and configurations. At the core of the mount there are two different bases to choose from. This selection process can be difficult and this guide will walk you through determining what mounts you need

FLAT VS. CONTOURED



There are two styles of roof tracks made available for suv's and trucks with toppers. These roof tracks either account for the curve of the surface (side to side not front to back) or follow it. You will see this in the diagram above. Knowing which tracks you are purchasing or have purchased will help in the mount selection process.

What's Included:

(1) Adjustable Track Mount
Crossbar Mounting Hardware
