Solo Motorsports Long Travel Kit Tacoma 96-04/4Runner 96-02
Solo Motorsports Long Travel Kit Tacoma 96-04/4Runner 96-02
The Solo Motorsports Long Travel Kit for the 96-04 Toyota Tacoma and 96-02 4Runner will achieve 14″ of fully-functional 2WD or 12.5″ of travel for 4WD kits. Combine this 14″ long-travel kit with the Full Fabricated Spindles, 1″ Lower Uniball Conversion with Heim Steering upgrades and your Tacoma or 4Runner’s strength and durability is greatly improved.
NEW Lower Control Arms (Version 2) push the lower ball joint forward 1″ to help clear for 35-37″ tires. The new arms are designed with high ground clearance. Increasing the distanced from your suspension and ground.
Solo Motorsports took it a step above competitors and made ¾” heims standard on the UCAs included in this kit! This will help to align your truck, even if you have a worn and fatigued frame.
Solo Motorsports Toyota W-I-Y UCA Double Shears are not included but highly recommended in order to keep the cross shaft bolt from bending during hard driving.
Application
- 1996 to 2002 Toyota 4Runner 2WD/4WD
- 1996 to 2004 Toyota Tacoma 2WD/4WD
Specs
- 14” of wheel travel 2WD
- 12.5″ of wheel travel 4WD
- 3 1/2″ per side increased track width
- Fits 35″ tire size
- Fiberglass required: Yes
- Black Semi-Gloss Powder coated finish
- Extended Front Brake Lines
- 2WD/4WD compatible
- Upper Control Arms with 3/4″ heim pivots and 1″ uniballs
- Built in strike pads on Lower Control Arms for bump stops
- Lower ball joint is pushed forward 1″ for better firewall clearance
- Dual lower shock mount on the LCA to run a secondary shock
- Extended Front Brake Lines
- MIG welded construction
- 4130 Chromoly 1″ uniball cups
- Made in the U.S.A

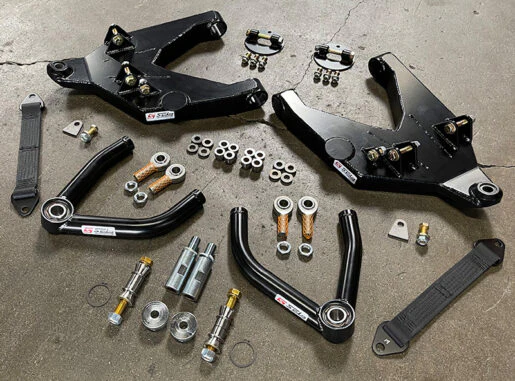

Long Travel Kit Includes
- MIG Welded Tubular Upper Control Arms
- MIG Welded BOXED Lower Control Arms
- FK 3/4″ heim pivots
- FK 1” uniballs
- Polyurethane bushing pivots with center sleeves
- Machined Zinc Plated Steering Connectors
- DOT Stainless Brake Lines
- Limit Straps with weld-on frame tabs
- Upper Shock Coil Bucket Adapters for 8″ stroke coil over shocks*
- Grade 8 Hardware
- 17-4 Stainless Steel Misalignment Spacers
- Extended 4WD complete axle package (ONLY FOR 4WD KITS)
Original: $4,317.71
-65%$4,317.71
$1,511.20Solo Motorsports Long Travel Kit Tacoma 96-04/4Runner 96-02
