Solo Motorsports Toyota Rear Bump-Stop Mounts 96-04 Tacoma/96-02 4Runner

Solo Motorsports Toyota Rear Bump-Stop Mounts 96-04 Tacoma/96-02 4Runner

The Toyota Rear Bump-Stop Mounts is intended for performance off road trucks but also works great for the rock crawling or over landing applications. It has been tested on multiple rigs in the harshest terrain of Death Valley to the rocky trails of the San Bernardino National Forest. In all tests it provided a soft cushion for all hard bottom outs.

The Rear Bump-Stop are made from 3/16 Steel plate that has a been laser cut and CNC bent for a precise fit every time.

The Bump-Stop Strike Pad is raised 1.5″ to properly set the Bump-Stop location and will provide a solid point of contact for when the rear suspension bottoms out. Designed for the 4Runners

The U-Bolt Strike Plate is designed for the Tacomas. Made from 3/8″ steel plate and CNC bent. Sits on top of the leaf springs which gives a perfect stop to bump off of.

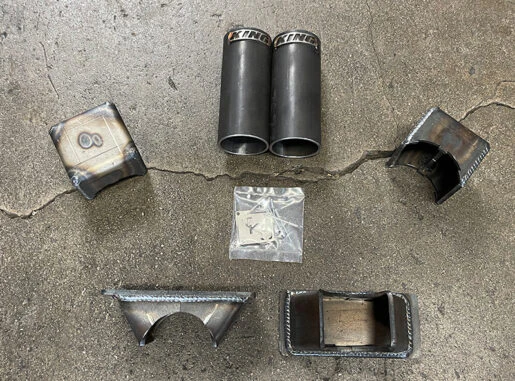

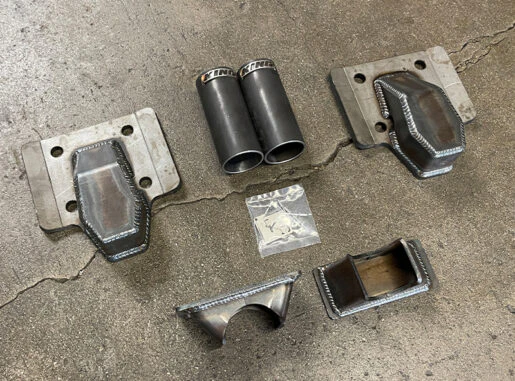

Includes

• 2x Toyota Rear Bump-Stop Mounts fully welded (Bump Cans not welded)
• 2x Fully welded axle strike pads for 4Runners (Tacoma models include a 3/8 thick U-Bolt bump plate)
• Stainless steel TKO badges
• 9x 1/8″ aluminum rivets

Requires

• Tacomas will need a U-Bolt flip kit to work with the Bump-stop plates.
• Welding to the frame and axle housing
• Minor grinding/cutting of the factory bump-stop perches

Notes

1.5” spacers or a -15mm or more offset wheel is required to clear the bump stops
The bump stop kit removes the factory bump perch

Kit is compatible with our Outboard shock hoop or Freel Good outboard shock hoop.
