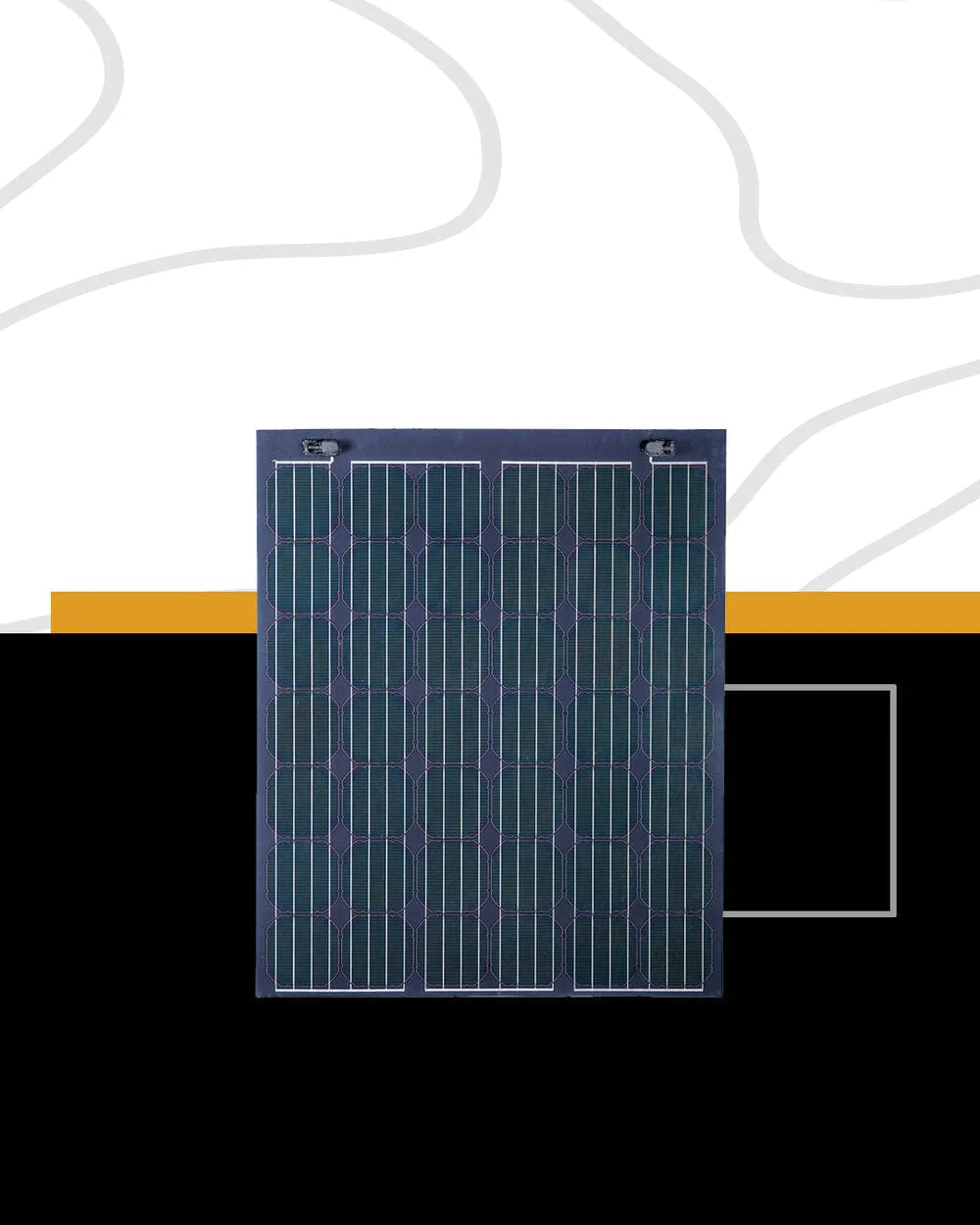

Sunflare 115W Xplor Flexible Vehicle Solar Panel
Sunflare 115W Xplor Flexible Vehicle Solar Panel
Maybe going off-grid for the weekend is what you’re looking for. Or maybe you actually have a ton of roof space and want to fill it with solar panels. Either way, we’ve got you covered with the 115 watt panel.
XPLOR introduces Capture4 solar technology, the first high-precision,
cell-by-cell manufacturing process for exceptional performance and durability.
The environmentally cleanest method of mass-producing solar panels
in the world.
MORE ELECTRICITY IN REAL-WORLD CONDITIONS
90% efficiency output for first 10 years
80% efficiency output 11-25 years
Better at Dawn and Dusk
Sunflare delivers more energy in low light condition.
Better in Poor Weather
Cloudy days, fog, and high humidity, no problem.
Won’t Crack Under Pressure
Flexing can creates cracking in the cell. These cracks reduce the energy output
over time. Sunflare has a flexible stainless steel substrate which does
not micro-crack.
Easy Installation
Fast and low cost installation. Adheres with best quality double sided tape.
Bypass Diodes on Every Cell
Most panels come with only two bypass diodes that string multiple solar cells.
This means if you have shade, debris, or damage on one cell, the entire string of
cells will turn off, making the entire module perform poorly and possibly become
completely useless. Bypass diodes are put in to combat hot spots and keep the
electric current flowing optimally. XPLOR series panels have bypass diodes on
every cell, maximizing its performance and dependability
Lightweight
75% lighter traditional solar
modules..

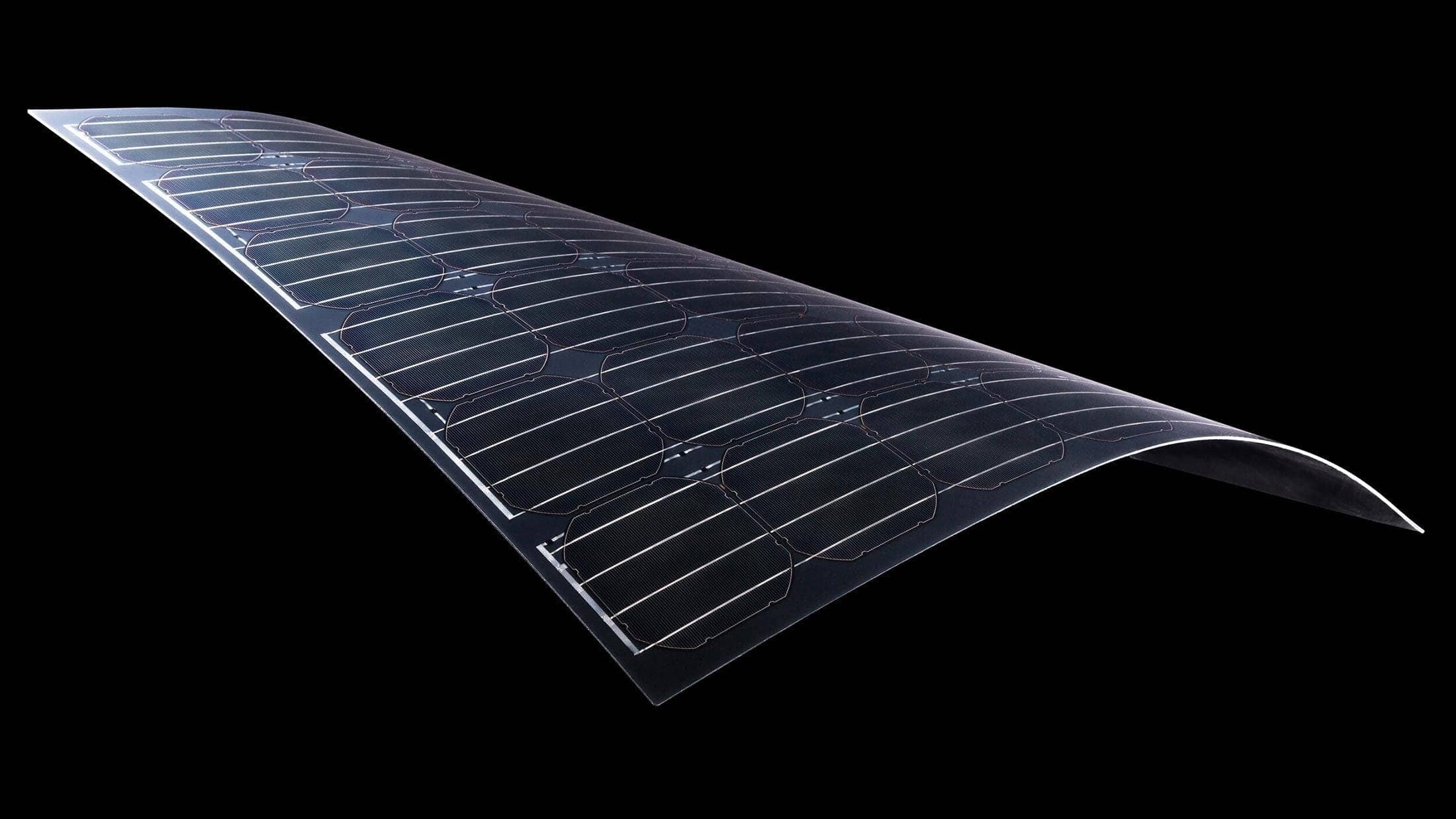

Flexible
The .127mm stainless
steel substrate allows for
generous curvature.
Thin
95% thinner than Traditional
solar modules.
Durable
Withstands high impact.
Impervious to heat, wind and
cold. Will not crack..
FLEX+ 115 WATT MODULE SPECS
Dimension: 47.3±0.1 in X 32.6±0.1 in
Weight: 2.9 kg (6.5 lbs)
Module Thickness: 1.7 mm
115 WATT ELECTRICAL
Peak Power (+5/-0%) : Pmax 115W
Avg. Cell Efficiency : 17.0%
Peak Power Voltage : Vmpp 18.1V
Peak Power Current : 6.2A
Open Circuit Voltage : Voc 22.1V
Short Circuit Current : Isc 7.7A
115 WATT MECHANICAL
Solar Cells : CIGS
Junction Box : IP-65, MC4 Compatible
Hot Spot Protection : Bypass Diodes Per Cell
Temperature F : -40° F to + 185° F
Max Load : Wind / 50 psf, 2400 Pa
Impact : 1 in Hail at 52 mph (23 m/s)
Original: $388.91
-65%$388.91
$136.12More Images
