Total Chaos +3.5" Long Travel Kit - Heim UCA - 1st Gen Tacoma

Total Chaos +3.5" Long Travel Kit - Bushing UCA - 1st Gen Tacoma

Wider suspension increases the amount of wheel travel you cycle and allows you to maintain traction in rougher terrain. A wider track width will improve the vehicles cornering stability on and off-road.

Long travel systems offer better ride quality than stock length kits while adding component strength to any off-road adventure. Maximize off road performance and tuneability. Customize your ride quality for added vehicle weight and specific terrain with dual shock capability.

• Upper and lower control arms are extended to increase the track width 3.5" per side and bolt to the factory control arm mounting locations.
• 12.5" of wheel travel with 4WD.
• Upper ball joints are upgraded to 1" uniballs for additional strength and wheel travel.
• TOTAL CHAOS 1" I.D. uniballs feature a heat treated stainless steel ball & race for superior corrosion resistance and component strength. A military grade PTFE woven fabric liner surrounds the uniball which helps prevent noise.
• Heim pivot upper control arms are fully adjustable allowing maximum tuning of caster and camber for race applications.
• Ships pre-set to factory length.
• Lower control arms are internally gusseted, fully boxed and include dual shock tabs.
• Secondary shock tabs are included to allow a TC specific external bypass shock to be installed for additional dampening control. Maximize tunability and performance. Customize your ride quality for added vehicle weight and specific terrain.
• Adjustable limit strap clevises are supplied to properly limit suspension droop wheel travel and allow necessary adjustments during the life of the limit strap. Straps will stretch over time.

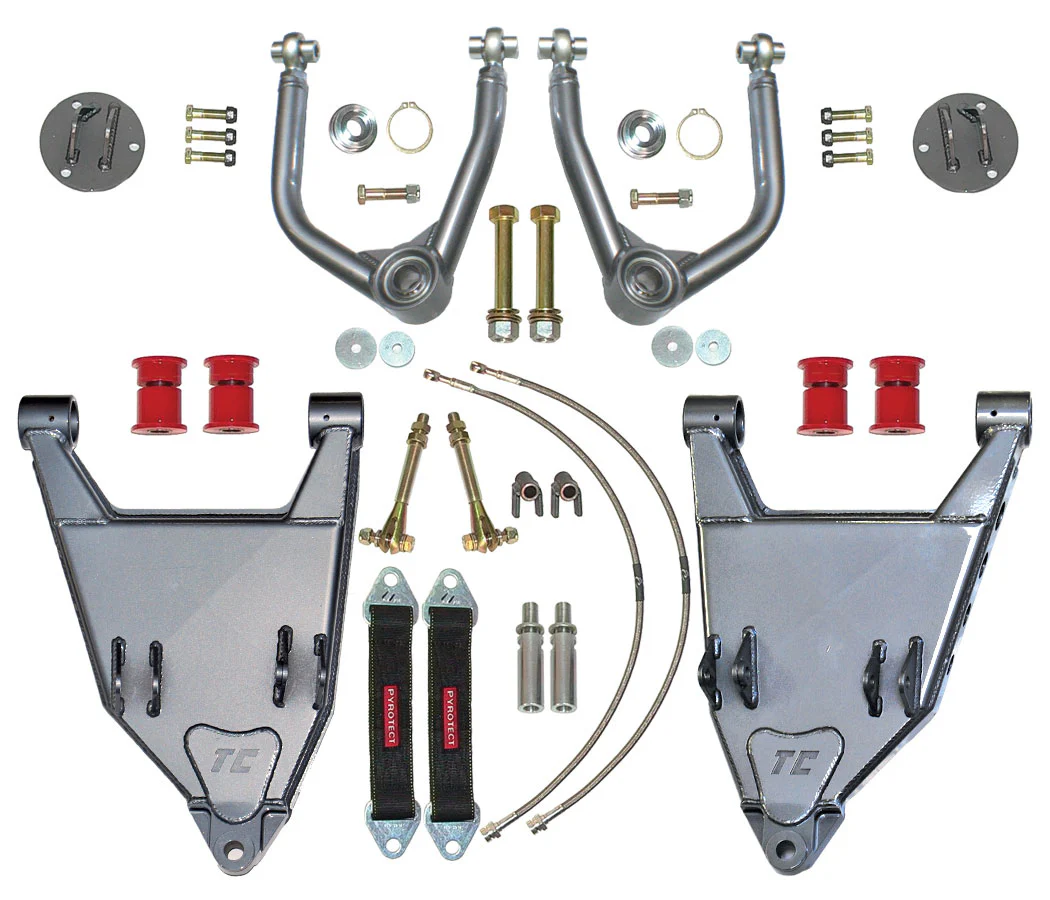

• Kit includes: DOT approved stainless steel braided brake lines that do not expand. TC custom 17-4 stainless hi-misalignment spacers. Grade 8 mounting hardware.
• Install TC modified Tundra axles to retain 4WD - SOLD SEPARATELY.
• Fiberglass fenders are required.
• Hand crafted in the U.S.A.
• 3 stage powder coat process includes a durable clear coat to provide a long lasting finish.
• TC specific 2.5" long travel coil over shocks bolt to the factory coil bucket location.
• Extended travel shocks are too short and will not work.
• NOT COMPATIBLE WITH 4"-7" SPINDLE/DROP BRACKET LIFTS.
