Total Chaos Spindle Gussets
Total Chaos Spindle Gussets
These gussets were designed to reinforce a known weak link on your Toyota. Unexpected harsh front impacts at high speed or while under braking can cause catastrophic damage to your factory spindle/knuckle.
These weld-on gussets were originally designed for the US military and their 8000lb body armoured vehicles. Don't get stranded on the trail, protect your OE parts.
Features:
- Must have reinforcement for anyone who wants to play in the dirt!

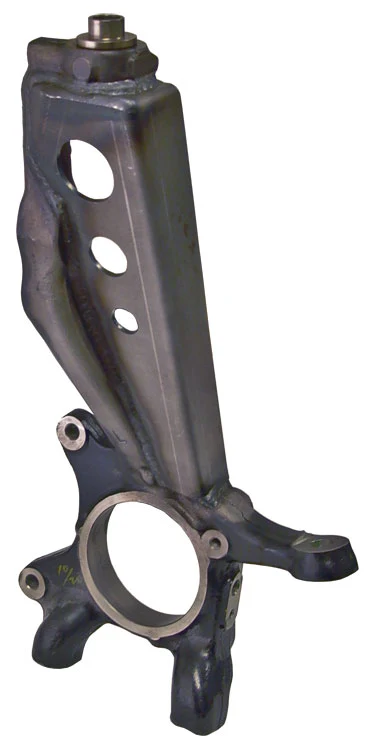

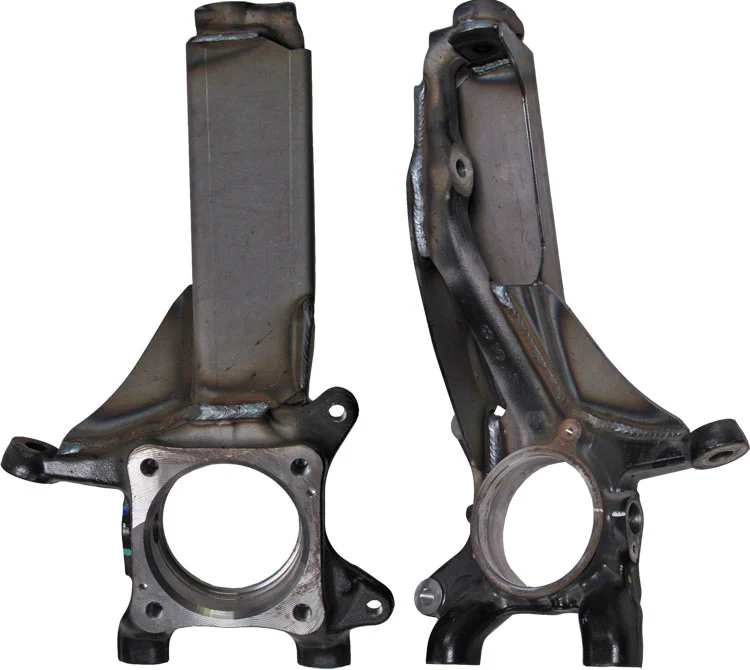

- Strengthens spindle uprights and prevents the knuckle from damage during hard impacts.
- Retains the factory sway bar and includes an additional steering arm gusset.
- 1/8'' prebent laser cut mild steel brackets.
- Welding and grinding are required to install.
- Factory spindles are forged, not cast and gussets can be MIG or TIG welded directly to them.
- Trucks running factory back spacing wheels must run 1.25'' wheel spacers. To clear without spacers, aftermarket wheels must have a maximum backspace of 4.5'' for 16'' wheels and 4.75'' for 17'' wheels.
- Kit includes 1 pair of gussets for driver and passenger side.
Fitment:
- 2003-2024 Toyota 4Runner
- 2005-2023 Toyota Tacoma
- 2007-2014 Toyota FJ Cruiser
- 2003-2009 Lexus GX470
- 2010-2023 Lexus GX460
