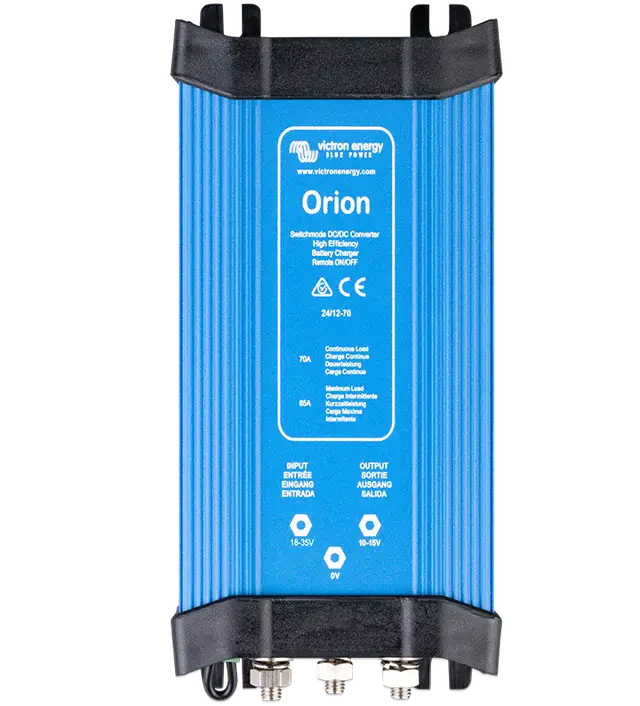

Victron Energy Orion DC-DC 12/24 Converter
Victron Energy Orion DC-DC 12/24 Converter
The Orion converter Non-isolated High power can achieve an efficiency of 93% when operated at its nominal current.
It’s equipped with the “Remote on-off” function to start and stop the system remotely. This also dispenses with the need to connect a switch that has to carry the nominal current, a low-power switch is sufficient.
The output voltage of these converter models is adjustable (can be set between 20V and 30V), this can be used to recharge a battery, for example.
Up to five converters of the same model can also be connected in parallel to increase the output current if necessary.
If the system temperature rises, the converter will automatically reduce his output current (temperature >40°C).

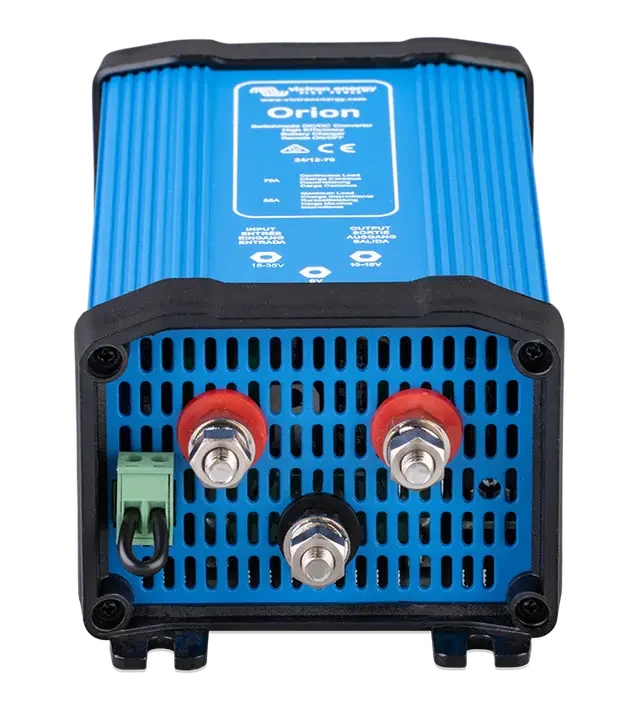

The installation of the converter is simple, insulated lugs are supplied for connection.
Original: $153.93
-65%$153.93
$53.88More Images
Victron Energy Orion DC-DC 12/24 Converter
Victron Energy Orion DC-DC 12/24 Converter
The Orion converter Non-isolated High power can achieve an efficiency of 93% when operated at its nominal current.
It’s equipped with the “Remote on-off” function to start and stop the system remotely. This also dispenses with the need to connect a switch that has to carry the nominal current, a low-power switch is sufficient.
The output voltage of these converter models is adjustable (can be set between 20V and 30V), this can be used to recharge a battery, for example.
Up to five converters of the same model can also be connected in parallel to increase the output current if necessary.
If the system temperature rises, the converter will automatically reduce his output current (temperature >40°C).
The installation of the converter is simple, insulated lugs are supplied for connection.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Victron Energy Orion DC-DC 12/24 Converter
The Orion converter Non-isolated High power can achieve an efficiency of 93% when operated at its nominal current.
It’s equipped with the “Remote on-off” function to start and stop the system remotely. This also dispenses with the need to connect a switch that has to carry the nominal current, a low-power switch is sufficient.
The output voltage of these converter models is adjustable (can be set between 20V and 30V), this can be used to recharge a battery, for example.
Up to five converters of the same model can also be connected in parallel to increase the output current if necessary.
If the system temperature rises, the converter will automatically reduce his output current (temperature >40°C).
The installation of the converter is simple, insulated lugs are supplied for connection.
