Dobinsons Front IFS Weld on Hydraulic Bump Stop Mount Kit - AP-001KIT

Dobinsons Front IFS Weld on Hydraulic Bump Stop Mount Kit - AP-001KIT

Part Number	Stroke	Thread Length	Extended Length	Compressed Length
HBS56-009	46mm - 1.8"	105mm - 4"	188mm - 7.4"	142mm - 5.6"

• CNC Machined 50mm Billet Aluminum Piston
• EDP Coated 3mm Thick 56mm Steel Body

• Threaded Body For Height Adjustment

• Supplied with both Interchangeable Super Quiet Rubber Rod End & Hard Nylon

• 30mm Micro Polished Hard Chrome Shaft

• Slow Rebound Valving To Prevent Bucking

• Removable Dust Cover Boot For Stealth Appearance

• Fully Rebuildable & Tunable

• O-Ring Travel Indicator

• Heavy Duty Extreme-Race style Triple Seal Design

• Nitrogen Gas Charged & Tunable (100 to 300 PSI)
• Extra Short Dead Lengths For Compact Fitment

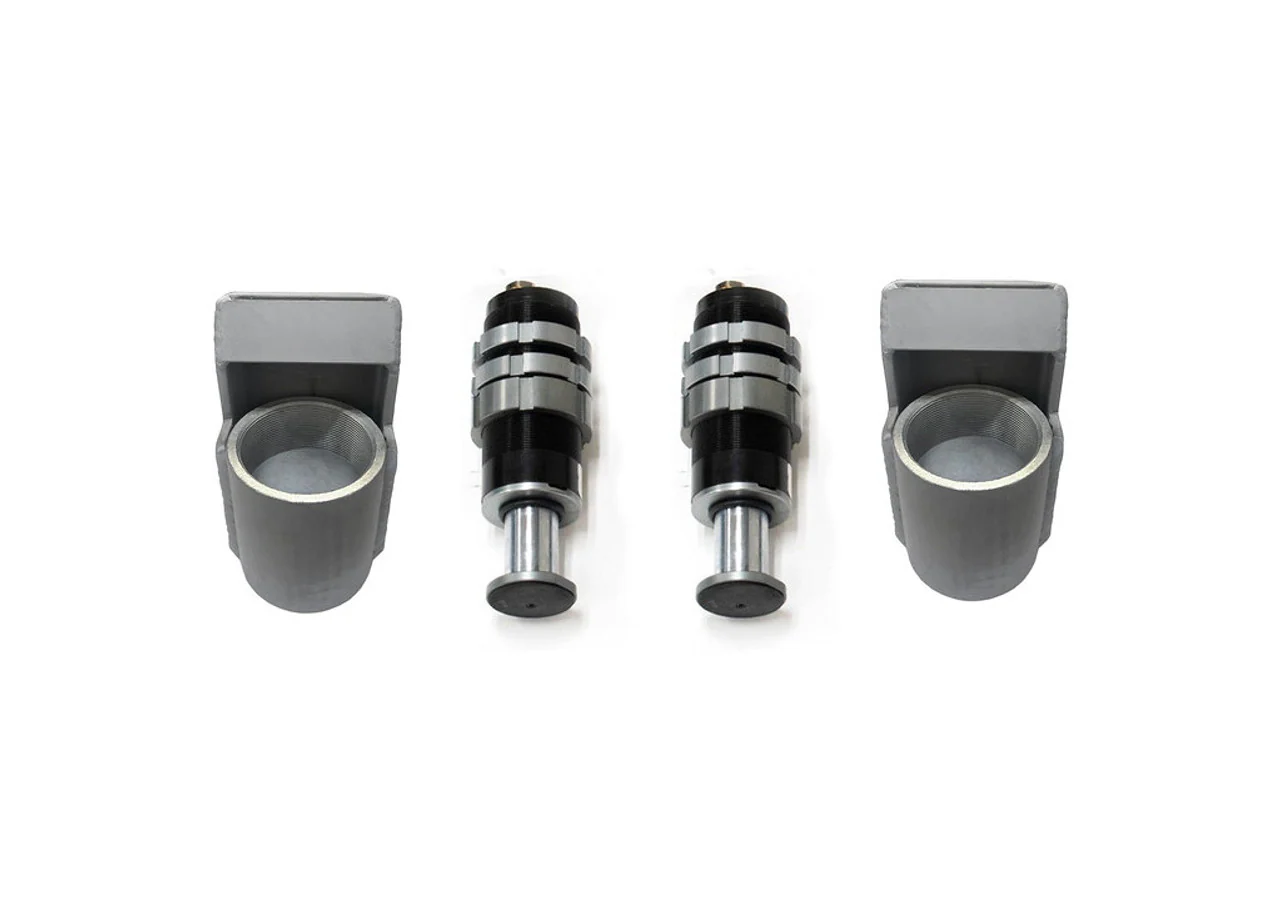

Includes:

• AP-001 - Weld on Mount
• HBS56-009 - 2.2" Hydraulic Bump Stop

Fitting guide
