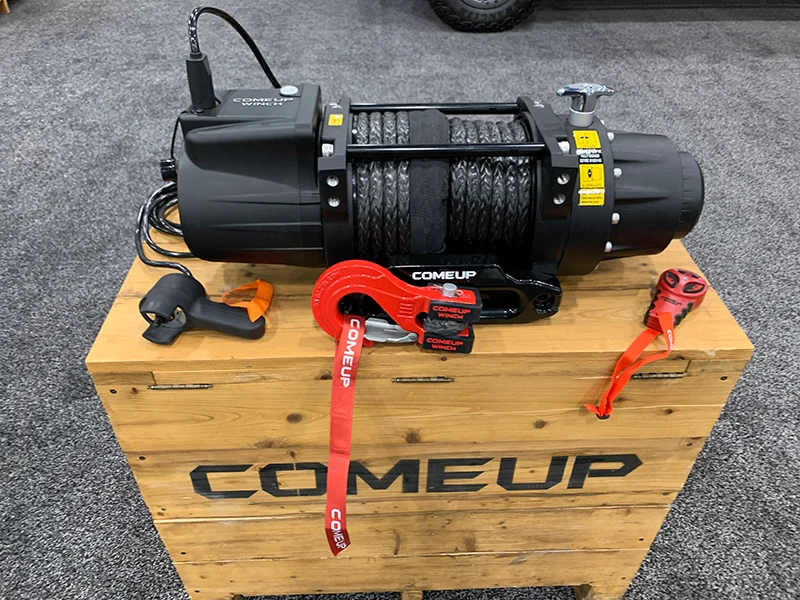

Comeup Seal 16.5rsi Trail Edition 12v Winch W/ Synthetic Rope And Wireless Remote

Comeup Seal 16.5rsi Trail Edition 12v Winch W/ Synthetic Rope And Wireless Remote

Introducing the COMEUP Seal 16.5rsi Trail Edition, the ultimate winching solution designed for unparalleled ease of installation and equipped with exclusive Trail Edition features for enhanced functionality.

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull, kg / lb	Line Speed, mpm / fpm	Amp. Draw, A
No load	5.6 / 18.4	50
1,814 / 4,000	3.0 / 9.8	90
3,629 / 8,000	2.5 / 8.2	180
4,536 / 10,000	1.9 / 6.2	230
7,484 / 16,500	1.4 / 4.6	355



Line Pull and Rope Capacity:

Layer of Rope	Pull by layer, kg / lb	Total Rope on the Drum, m / ft
1st	7,484 / 16,500	5.2 / 17.1
2nd	6,125 / 13,503	11.6 / 38.1
3rd	5,184 / 11,429	19.2 / 63.0
4th	4,494 / 9,908	25.0 / 82.0

Specifications:

• Rated Line Pull 16,500 lbs (7,484 kg) single line
• Motor 5.8 hp / 4,325w 12V Series Wound
• Gear Ratio 3-Stage Planetary 343:1
• Clutch (freespooling) Rotating Ring Gear
• Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
• Winch Construction Aluminum Die Cast Housing with Steel Drum

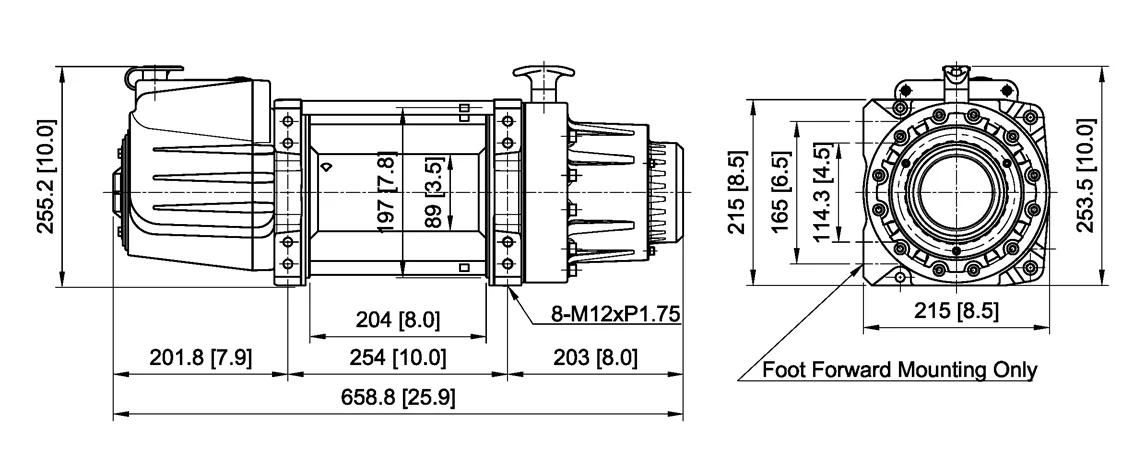

• Drum Size 3.5" x 8" (89 x 204 mm)
• Control Both built-in digital two way signal wireless remote control and waterproof remote with thermometric indicator LED w/17' (5 m) cord
• Rope Type Synthetic Rope
• Rope Size 1/2" x 82' (12 mm x 25 m)
• Mounting Bolt Pattern 10" x 4.5" (254 x 114 mm), 10" x 6.5" (254 x 165 mm)
• Winch Weight 132 lb (60 kg)
• Gross Weight 150 lb (68 kg)
• Warranty Limited lifetime warranty for mechanical components, three (3) year warranty for electrical components
• Box Dimensions 27.2" x 10.6" x 15.9" (690 x 270 x 405 mm )



Seal 16.5rsi Trail Edition Operation Manual

2023-12-22

PDF, 0.67 MB
