Comeup Seal Gen2 16.5RS 12v Winch W/ Synthetic Rope And Wireless Remote
Comeup Seal Gen2 16.5RS 12v Winch W/ Synthetic Rope And Wireless Remote
Get ready for any off-road recovery situation with the COMEUP Seal Gen2 16.5rs 12V winch. This winch features a synthetic rope, which is lighter, stronger, and more durable than traditional steel cable, giving you the power to tackle tough terrain with ease. The winch also comes with both a wireless remote control and a wired waterproof remote control, providing you with added convenience and versatility. Whether you're stuck in mud, snow, or any other challenging environment, the Comeup Winch with synthetic rope and wireless/wired remote control is the solution you need to get moving again.
Features and Benefits
- 12/24V DC severe duty winch rated at 16,500 lb pulling meets or exceeds your expectations.
- Heavy duty series wound motor delivers superior torque output and faster line speed. A motor equipped with a thermal protection switch
- 4 equally positioned pin holes with an ergonomic T-handle make it possible to reposition in 90 degree Increments.
- Hardened steel, 3-stage planetary gear train for efficient and reliable operation.
- Cutout switch prevents the vehicle battery from draining when no use.
- Both built-in digital two ways wireless remote control and wired water-proof remote control.
- A 12 strand construction synthetic rope coated to improve abrasion and has no water absorption.
- Tough aluminum die cast housings withstand strength of 2.0 x rated load of winch.
- U.S. Germany, U.K. France, etc patented mechanical cone brake holds the full load
- Meets international standards of CE Machinery Directive 2006/42/EC, CE Electromagnetic Compatibility Directive 2014/30/EU, and SAE J706 Surface Vehicle standard 2003-08 rev.
Specifications
- Rated line pull: 7,484 kg / 16,500 lb single line
-
Line speed ( 1st layer): 5.6 mpm / 18.4 fpm 50A at 12V, 7.6 mpm / 24.7 fpm 25A at 24V no load
1.4 mpm / 4.6 fpm 355A at 12V, 1.4 mpm / 4.6 fpm 245A at 24V full load -
Motor: 4,325 w / 5.8 hp 12V series wound
4,474 w / 6.0 hp 24V series wound - Gear train: 3-stage planetary 343:1
- Clutch (freespooling): Rotating ring gear
- Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
- Winch construction: Aluminum die cast housings with steel drum
- Drum size: 89 mm x 204L mm (3.5" x 8"L)
- Control: Waterproof remote with thermometric indicator LED w/ 5 m (17') cord
- Rope type: Synthetic rope
- Rope size: 12.7 mm x 25 m (1/2” x 82’)

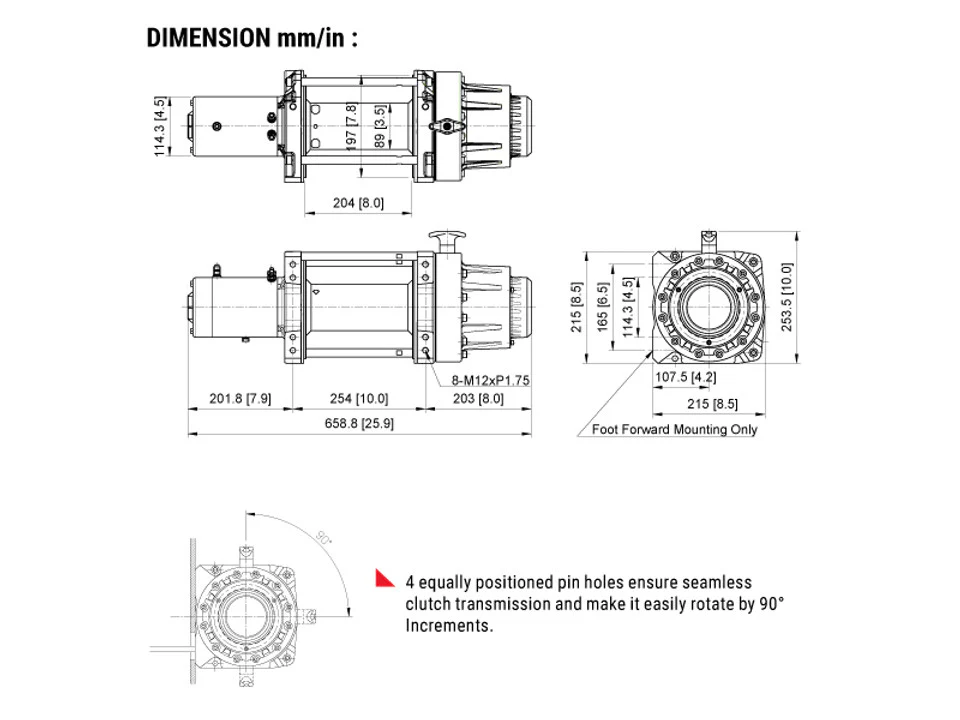

- Mounting bolt pattern: 254 mm x 114.3 mm (10” x 4.5”), 254 mm x 165 mm (10" x 6.5")
- Mounting: Foot forward mounting only. *Remark: Only foot forward mounting can meet SAE J706
Performance
Line Speed and Amp. Draw (1st layer of wire rope on the drum)
| Line Pull, kg / lb | Line Speed, mpm / fpm | Amp. Draw, A | ||
| 12V | 24V | 12V | 24V | |
| No load | 5.6 / 18.4 | 7.6 / 24.9 | 50 | 25 |
| 1,814 / 4,000 | 3.0 / 9.8 | 3.1 / 10.3 | 90 | 90 |
| 3,629 / 8,000 | 2.5 / 8.2 | 1.9 / 6.4 | 180 | 150 |
| 4,536 / 10,000 | 1.9 / 6.2 | 1.6 / 5.2 | 230 | 200 |
| 7,484 / 16,500 | 1.4 / 4.6 | 1.4 / 4.6 | 355 | 245 |
Line Pull and Rope Capacity
| Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft |
| 1st | 7,484 / 16,500 | 5.2 / 17.1 |
| 2nd | 6,125 / 13,503 | 11.6 / 38.1 |
| 3rd | 5,184 / 11,429 | 19.2 / 63.0 |
| 4rd | 4,494 / 9,908 | 25.0 / 82.0 |
Documents
Seal Gen2 16.5rs Operation Manual
[QUICK START GUIDE] Seal Gen2 9.5rs/12.5rs/16.5rs/20.0rs - Pairing the wireless transmitter with the winch wireless receiver module
[QUICK START GUIDE] Connecting the cables of the control box to the motor terminals (triangle type)
