COMEUP SOLO 12.5rs, 12V Winch
HomeStore

COMEUP SOLO 12.5rs, 12V Winch

COMEUP SOLO 12.5rs, 12V Winch

5.6 Tonnes Self-Recovery Winch
  • 12V DC severe duty winch rated at 12,500 lb pulling meets and exceeds your expectations.
  • Heavy duty series wound motor equipped with thermal protection switch alters.
  • Trendy design on winch body with new stylish control pack dedicated to provide excellent winching experience.
  • Convertible control pack plus winch external wiring cable connection design allows quick and convenient remote mounting options.
  • Control pack equipped with on-top display screen shows battery level and offers solenoid malfunction alarm function.
  • Newly designed wireless and wired controllers offer better holding and reliable operation.
  • Wired controller has magnet design, allowing it to put on idle vehicle body.
  • Hardened steel, 3-stage planetary gear train for efficient and reliable operation.
  • 12- strand construction synthetic rope is coated to improve abrasion and has no water absorption.
  • The U.S., Germany, U.K., France, etc. patented mechanical cone brake outside the drum expedites heat dispersion and also makes the winch ideal for use with synthetic rope.
  • Meets SAE J706, CE Machinery Directive 2006/42/EC and CE Electromagnetic Compatibility Directive 2014/30/EU.
  • Built-in wireless control module includes functions:
    - On/off switch prevents the vehicle battery from draining when no use
    - Motor over-heating warning by LED indicators and beeper

Specifications:

  • Rated line pull: 5,670 kg / 12,500 lb single line
  • Line speed ( 1st layer): 7.7 mpm / 25.3 fpm 45 A at 12V no load
                                           0.9 mpm / 3.0 fpm 470 A at 12V full load
  • Motor: 3,730 w / 5.0 hp 12V series wound
  • Gear ratio: 3-stage planetary 225:1
  • Clutch (freespooling): Rotating ring gear
  • Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
  • Winch construction: Aluminum die cast housings with steel drum
  • Drum size: 63.5 mm x 227L mm (2.5” x 8.9”L)
  • Control: Digital two-way wireless control and water-proof wired remote control with thermometric LED indicator
  • Rope type: Synthetic rope
  • Rope size: 11 mm x 25 m (7/16” x 82’)
  • Mounting bolt pattern: 254 mm x 114 mm (10” x 4.5”)
  • Mounting : Foot forward mounting workable
  • Finish : Matte black powder-coated



$583.65

Original: $1,667.56

-65%
COMEUP SOLO 12.5rs, 12V Winch—

$1,667.56

$583.65

More Images

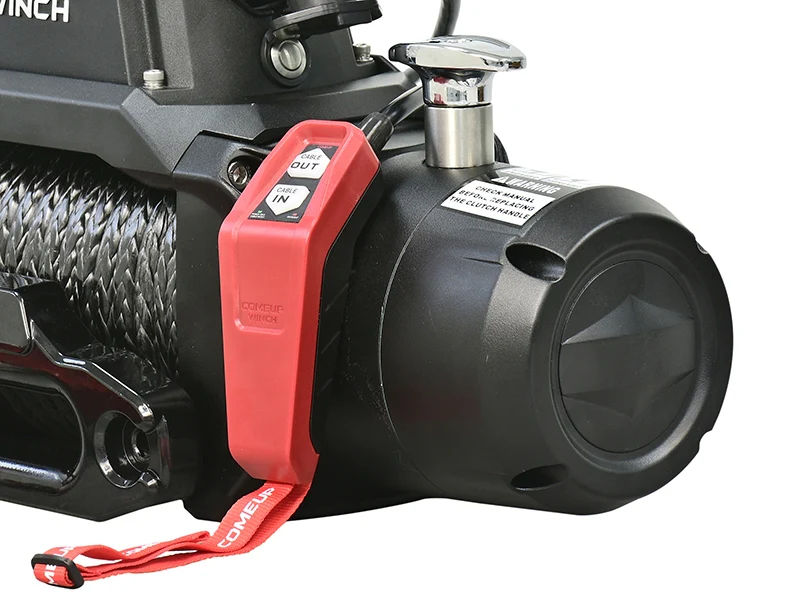

COMEUP SOLO 12.5rs, 12V Winch - Image 2
COMEUP SOLO 12.5rs, 12V Winch - Image 3

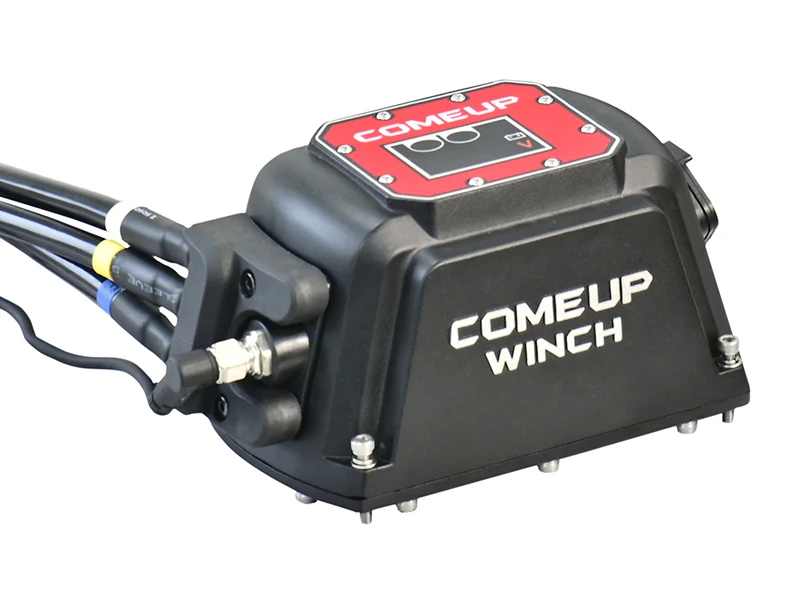

COMEUP SOLO 12.5rs, 12V Winch - Image 4
