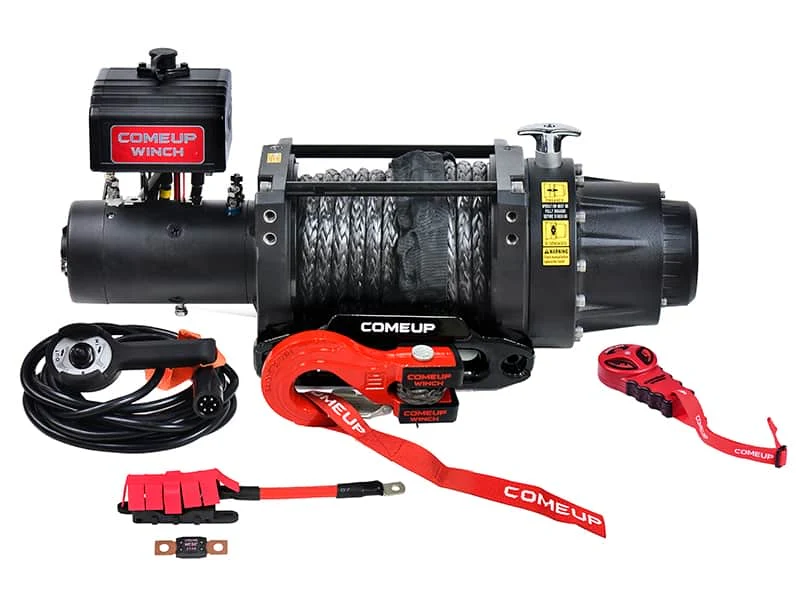

COMEUP Seal 20.0rs Trail Edition
HomeStore

COMEUP Seal 20.0rs Trail Edition

COMEUP Seal 20.0rs Trail Edition

COMEUP Seal 20.0rs Trail Edition

Trail Edition: Includes a BossHook L and a 250A fuse kit

  • 12V DC severe duty winch rated at 20,000 lb pulling meets or exceeds your expectations.
  • Heavy duty series wound motor delivers superior torque output and faster line speed. A motor equipped with a thermal protection switch
  • 4 equally positioned pin holes with an ergonomic T-handle make it possible to reposition in 90 degree Increments.
  • Hardened steel, 3-stage planetary gear train for efficient and reliable operation.
  • Both built-in digital two way signal wireless remote control and waterproof remote with thermometric indicator LED w/17' (5 m) cord
  • A 12 strand construction synthetic rope coated to improve abrasion and has no water absorption.
  • Tough aluminum die cast housings withstand strength of 2.0 x rated load of winch.
  • U.S. Germany, U.K. France, etcpatented mechanical cone brake holds the full load.
  • BossHook L made of strong SCM440 alloy steel, MBS18,200 KG.
  • The Fuse Kit is designed to protect the winch motor and controls from damage caused by Amperage overload or short circuit.
  • Meet international standards of CE Machinery Directive 2006/42/EC, CE Electromagnetic Compatibility Directive 2014/30/EU, and SAE J706 Surface Vehicle standard 2003-08 rev.

Specifications:

  • Rated line pull: 9,072 kg / 20,000 lb single line
  • Line speed ( 1st layer): 4.5 mpm / 14.8 fpm 60A at 12V no load
                                           0.4 mpm / 1.3 fpm 410A at 12V full load
  • Motor: 5,220 w / 7.0 hp 12V series wound
  • Gear train: 3-stage planetary 343:1
  • Clutch (freespooling): Rotating ring gear
  • Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
  • Winch construction: Aluminum die cast housings with steel drum
  • Drum size: 89 mm x 204L mm (3.5" x 8"L)
  • Control: Includes both built-in digital two-way wireless control and waterproof wired remote control with LED thermometric indicator and 5m (17') cord
  • Rope type: Synthetic rope
  • Rope size: 14 mm x 16.7 m (9/16" x 55’)
  • Mounting bolt pattern: 254 mm x 114.3 mm (10” x 4.5”)
                                           254 mm x 165 mm (10" x 6.5")
  • Mounting: Foot forward mounting only
    * Remark: Only foot forward mounting can meet SAE J706
